FGP300EN2 02 – OVEN

FGP300EN2 02 – OVEN

Written by

in

FGP300EN2 02 – OVEN

Products

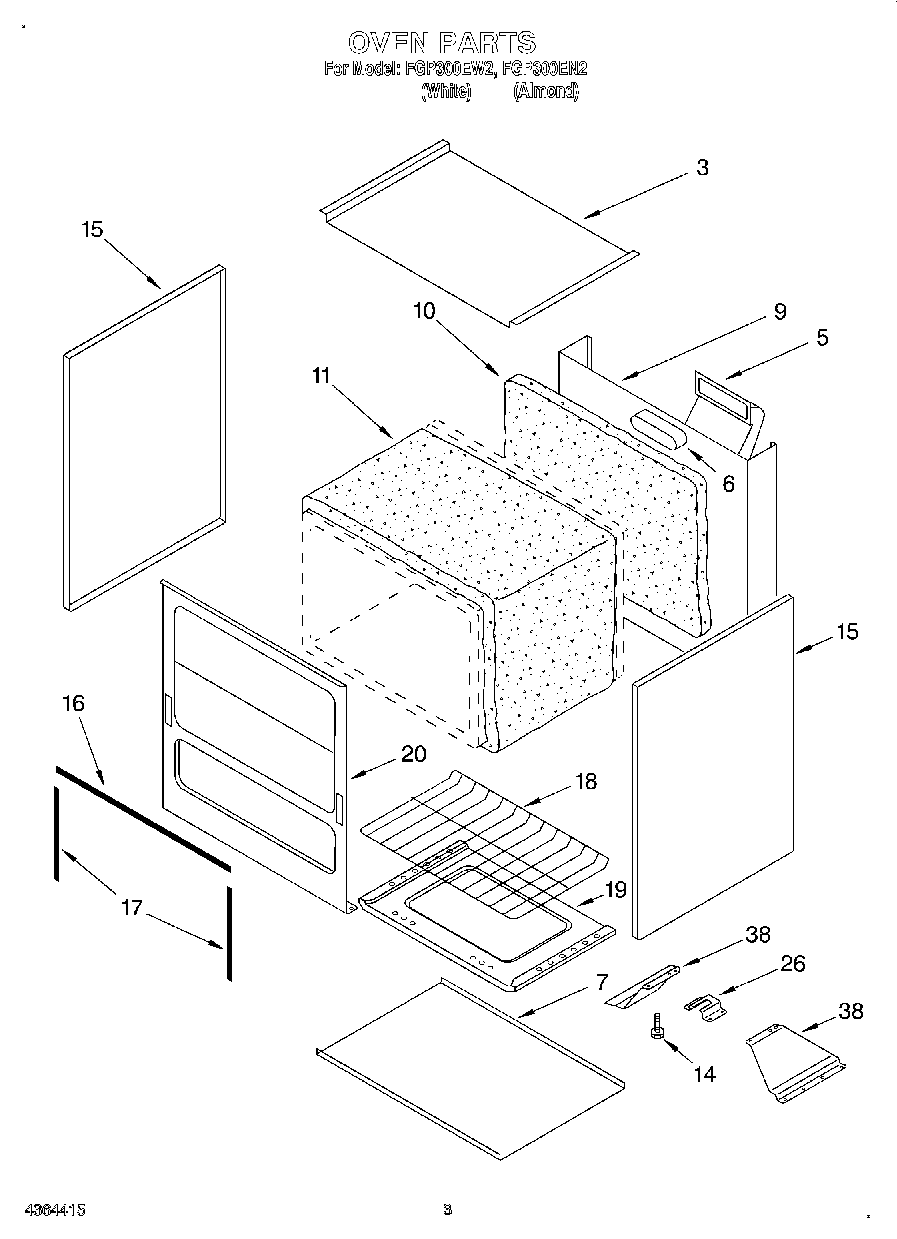

Position	Product
3	Bottom, Burner Box
5	Flue Box
6	Ring, Flue Box
7	Bottom, Main
9	Back, Main
10	Insulation, Back
11	Insulation, Wrap
14	LEG, LEVELER
15	Panel, Side (Almond)
15	Panel, Side (White)
16	Gasket, Oven Door
17	Gasket, Oven Door Side
18	Rack, Oven
19	Bottom, Oven
20	Frame, Front
26	8190785 Whirlpool Oven Bracket
38	Support, Side (Left)
38	Support, Side (Right)
