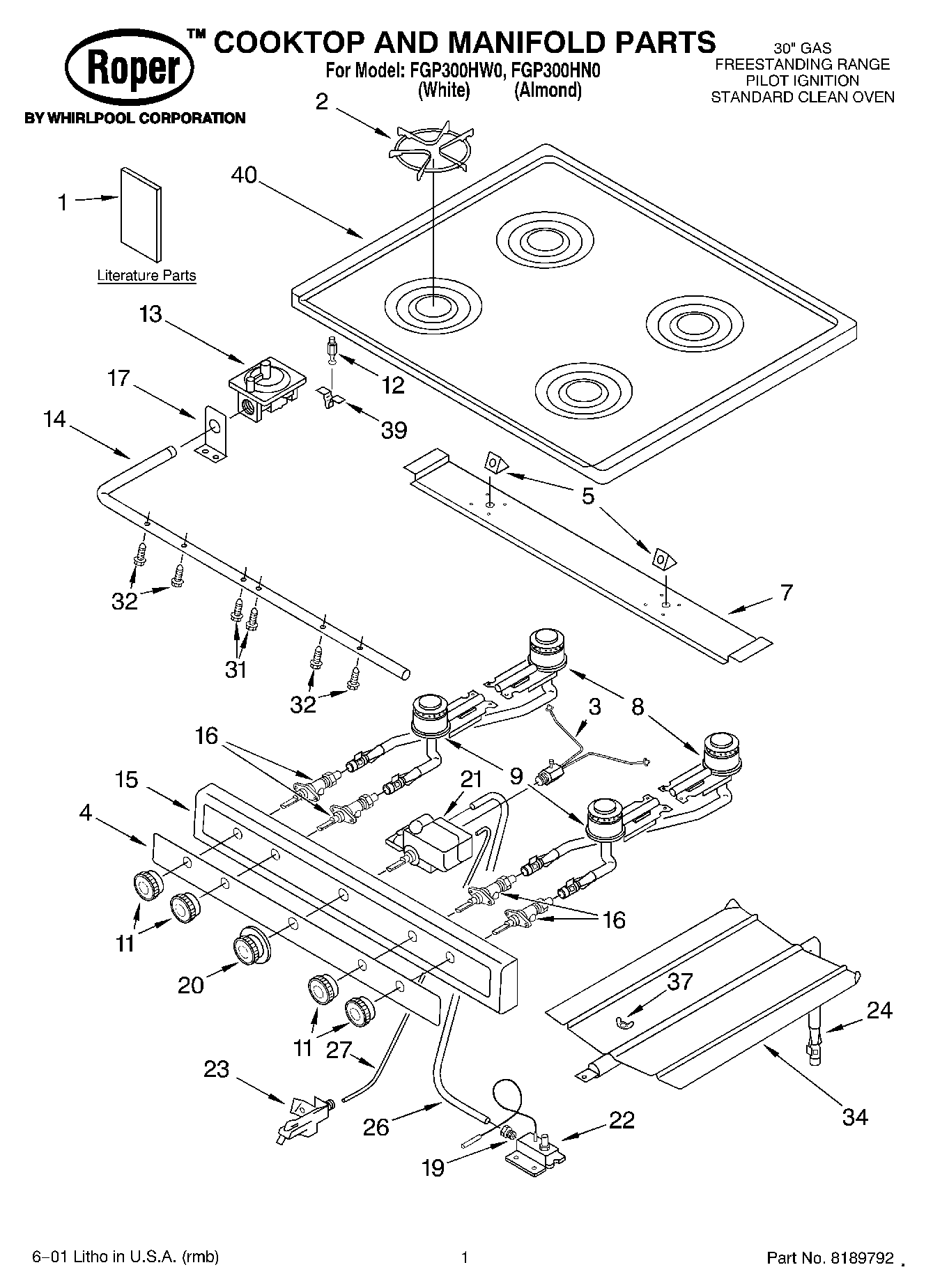

FGP300HW0 01 – COOKTOP AND MANIFOLD, LITERATURE

FGP300HW0 01 – COOKTOP AND MANIFOLD, LITERATURE

Written by

in

FGP300HW0 01 – COOKTOP AND MANIFOLD, LITERATURE

Products

PositionProduct
1Use & Care Guide
2Grate (4)
3Tubing, Top Pilot
4Overlay, Manifold
5Cover, Pilot
5Screw, 8-18 x 3/8
7Support, Burner
8Burner, Top Rear
9Burner, Top Front
11Knob, Burner (Black)
12Strike Pin W/Nut
13Pressure Regulator
14Pipe, Manifold
15Panel, Manifold (Includes No.4)
16Valve, Burner (Includes No.32)
17Support, Manifold
19Loxit Fitting 3/8“
20Knob, Thermostat (Black)
21Thermostat, Oven (Includes No. 31)
22Valve, Safety
22Screw, 10-12 x 1/2
23Pilot, Oven Burner
24Screw, 10-24 x 5/8
24Burner, Oven
26Tubing, Oven 3/8“ O.D.
27Tubing, Pilot 3/16“ O.D.
31Bolt, Thermostat
32Bolt, Valve Mtg.
34Flame Spreader
37Wingnut
39CATCH, STRIKEPIN
40Cooktop (Almond)
40Cooktop (White)
