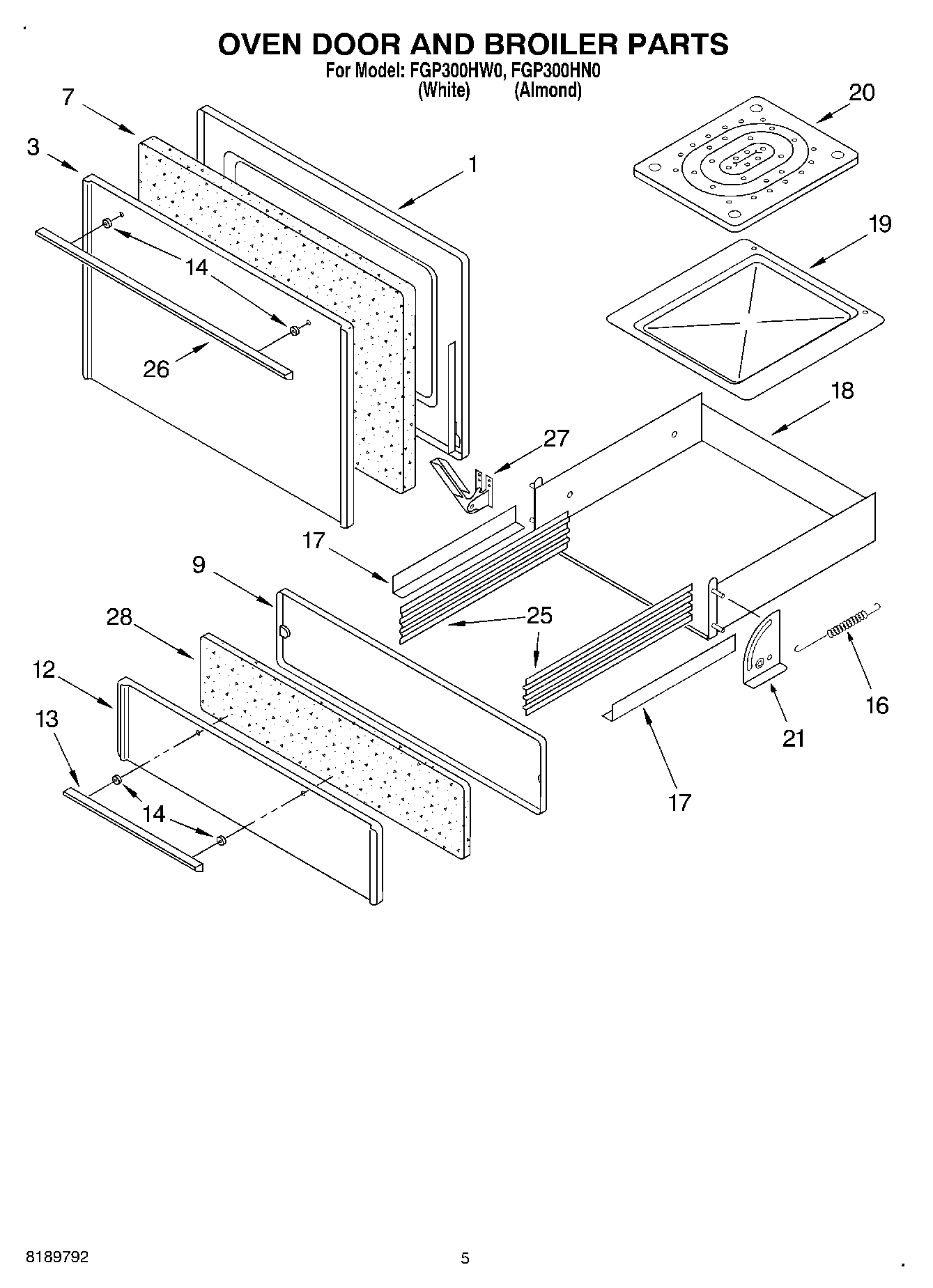

FGP300HW0 03 – OVEN DOOR AND BROILER

Products

Position	Product
1	Liner, Door
3	Panel, Oven Door (White)
3	Panel, Oven Door (Almond)
7	Insulation, Door
9	Liner, Brlr Drawer
12	Panel, Broiler Door (White)
12	Panel, Broiler Door (Almond)
13	Handle, Drawer
14	Screw, 10-24 x 3/8
14	Spacer, Handle
16	Spring, Broiler
17	Broiler Drawer Runner (Right)
17	Broiler Drawer Runner (Left)
18	Liner, Broiler
19	Broiler Pan
20	Grill, Broiler
21	Hinge, Broiler (Screw, 10-24 x 3/8)
21	Hinge, Broiler (Right)
21	Hinge, Broiler (Left)
21	WP488130 Whirlpool Air Conditioner Nut
25	Glide, Broiler Pan
26	Handle, Oven Door
27	Hinge, Oven Door
28	Insulation, Broiler Drawer
