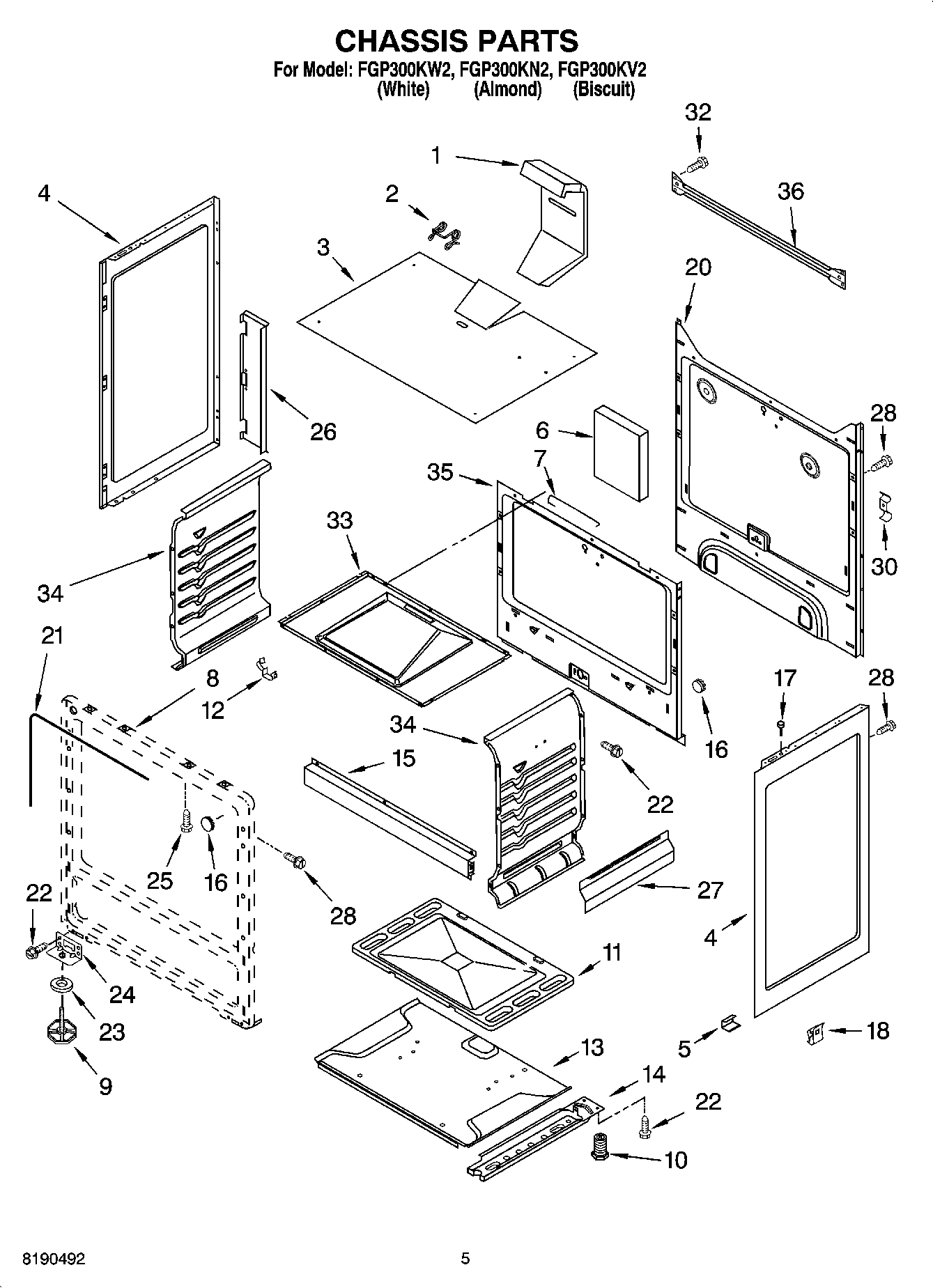

FGP300KV2 04 – CHASSIS PARTS

Products

Position	Product
1	WPW10116396 Whirlpool Flue Box
2	98013690 Whirlpool Clip
3	Shield, Insulation
4	98010045 Whirlpool Oven Side Panel
4	Panel, Side (2) (Almond)
4	WP98010042 Whirlpool Side Panel
5	CLIP, OVEN BOTTON
6	Counterweight
7	98006739 Whirlpool Oven Wire Tie
8	Frame, Front
9	WP3196037 Whirlpool Leveling Foot
10	WPW10058460 Whirlpool Appliance Levelling Leg
11	WP98004449 Whirlpool Oven Bottom
12	98005642 Whirlpool Clip
13	98003847 Whirlpool Oven Bottom Baffle
14	98003830 Whirlpool Rail Base
15	Support, Burner
16	Button, Plug (15/32“)
16	Button, Plug (25/32“)
17	98004723 Whirlpool Oven Bumper
18	98009179 Whirlpool Oven Nut
20	Back, Main
21	WPW10217472 Whirlpool Door Gasket
23	98007193 Whirlpool Oven Washer
24	98007126 Whirlpool Oven Stand Bracket
25	SCREW
26	98006715 Whirlpool Channel Assembly
27	98007191 Whirlpool Oven Heat Shield
28	WP98006631 Whirlpool Screw
30	98005026 Whirlpool Oven Clip
32	W10837731 Whirlpool Screw Assembly
33	98004447 Whirlpool Top
34	98004452 Whirlpool Oven Side
34	98004451 Whirlpool Oven Side Panel
35	98005768 Whirlpool Back Liner
36	W11706555 Whirlpool Insulation
36	98004294 Whirlpool Insulation Wire
36	W11311894 Whirlpool Insulation
36	98015363 Whirlpool Oven Support
36	Insulation
