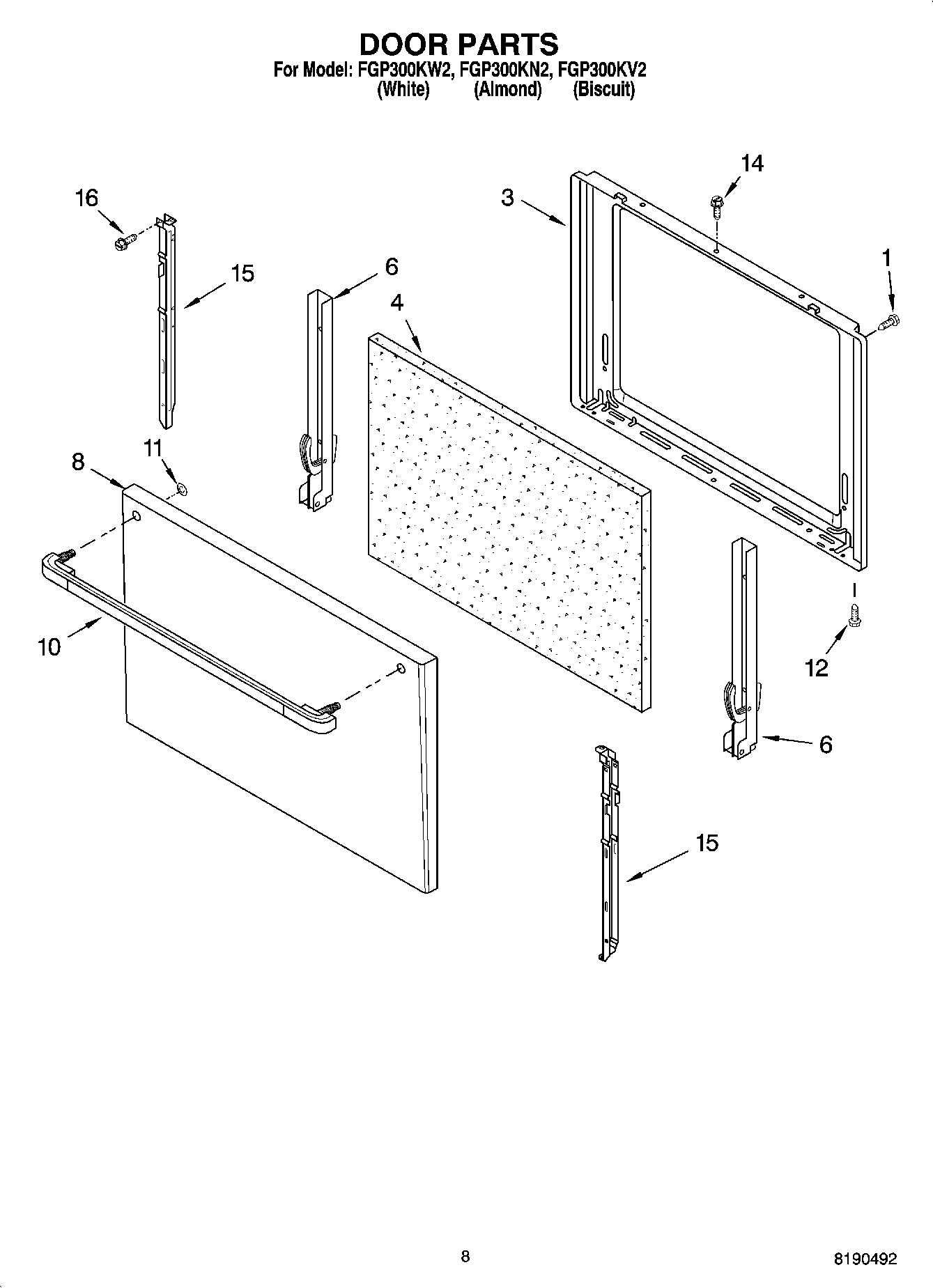

FGP300KV2 06 – DOOR PARTS, MISCELLANEOUS PARTS

Products

Position	Product
	WPL ARI57487A7
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Yellow)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 200 c Brown)
	1
	WPL ARI57483A8
	8212471 Whirlpool Oven Paint
	Grease
	WPL 8316781
	98017831 Whirlpool Oven Anchor Tip
	WPL ARI57488A2
	WPL ARI57484A6
	WPL ARI57485A3
	WPL ARI57486A6
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Blue)
	350930 Whirlpool White Spray Paint
	350956 Whirlpool Spray Assembly
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	WP72107 Whirlpool Touchup
	Almond (Uncut)
	350942 Whirlpool Spray Paint
	511873 Whirlpool Refrigerator Paint
	242831 Whirlpool Oven Wire
	814381 Whirlpool Pin
	285006 Whirlpool Spray
	Wire, 25` Roll (Red 14 Ga.)
	WPW10208653 Whirlpool Insulation
	WPL 799832
1	WP98004218 Whirlpool Screw
3	Liner, Door
4	Insulation, Door
6	Hinge, Door (2)
8	Panel, Oven Door (White)
8	Panel, Oven Door (Almond)
8	Panel, Oven Door (Biscuit)
10	W10819915 Whirlpool Door Handle
11	WP98004650 Whirlpool Nut
12	WP59002061 Whirlpool Microwave Screw
14	3196166 Whirlpool Screw
15	98004629 Whirlpool Oven Retainer
15	98004564 Whirlpool Oven Retainer
16	WP3400805 Whirlpool Screw Assembly
