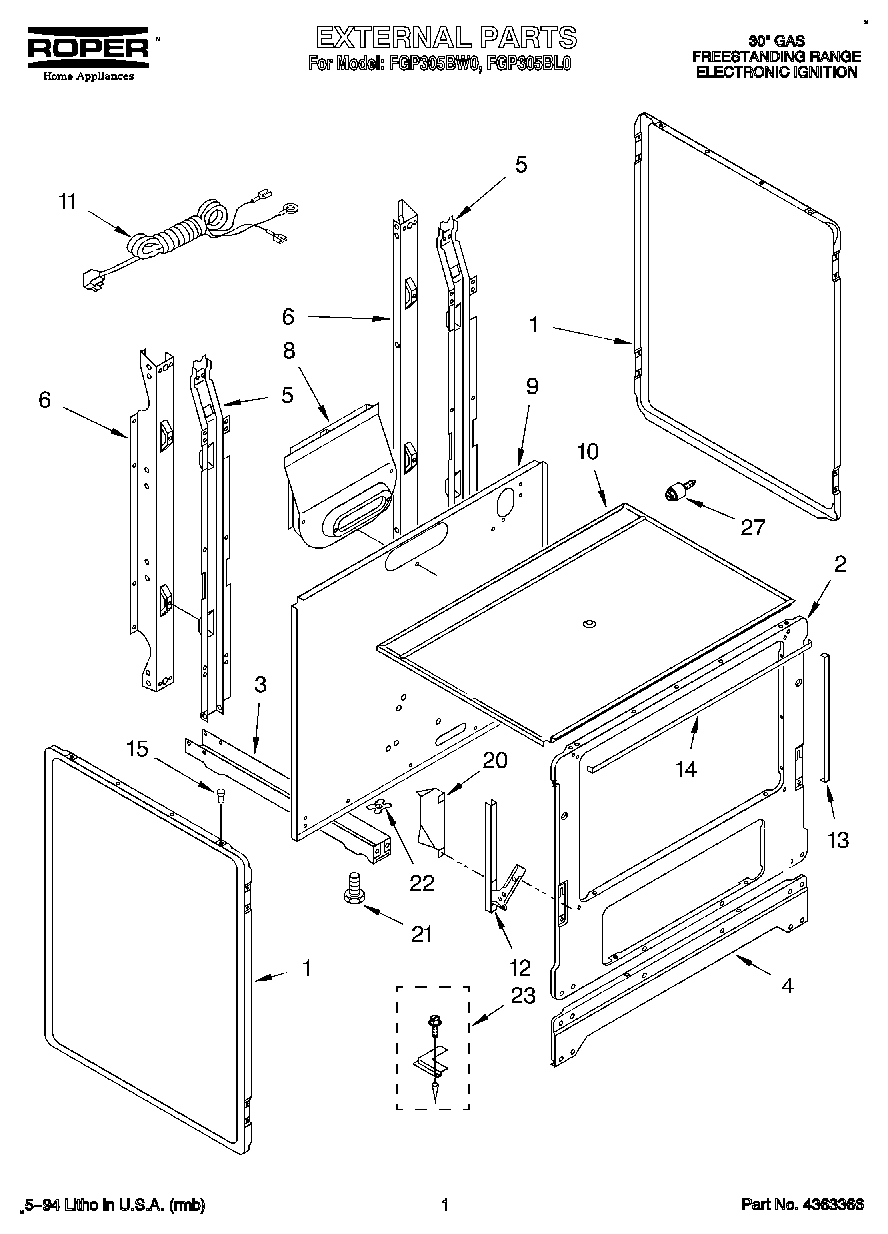

FGP305BL0 01 – EXTERNAL

Products

Position	Product
1	Panel, Side (2) (White)
1	Panel, Side (2) (Almond)
2	Frame, Front
3	Rail, Base (2)
4	Screw, 10-12 X 1/2 (4)
4	Base, Front
5	Screw, 10-32 X 1/2 (1)
5	Support, Main (2)
6	WP308685 Whirlpool Microwave Screw
6	SCREW
6	Support, Rear (2)
8	Box, Flue
9	Panel, Rear
10	Burner Box
11	Cord, Power
12	Screw
12	Hinge, Door (2)
12	Screw
13	Seal, Door (2) (Side)
14	Seal, Door (Top)
15	Bumper, Cooktop (2)
20	Shield, Insulation
21	Leg, Leveler
22	Nut (4)
23	Anti-Tip Kit
27	Locator stud (2)
27	Stud Screw (2)
