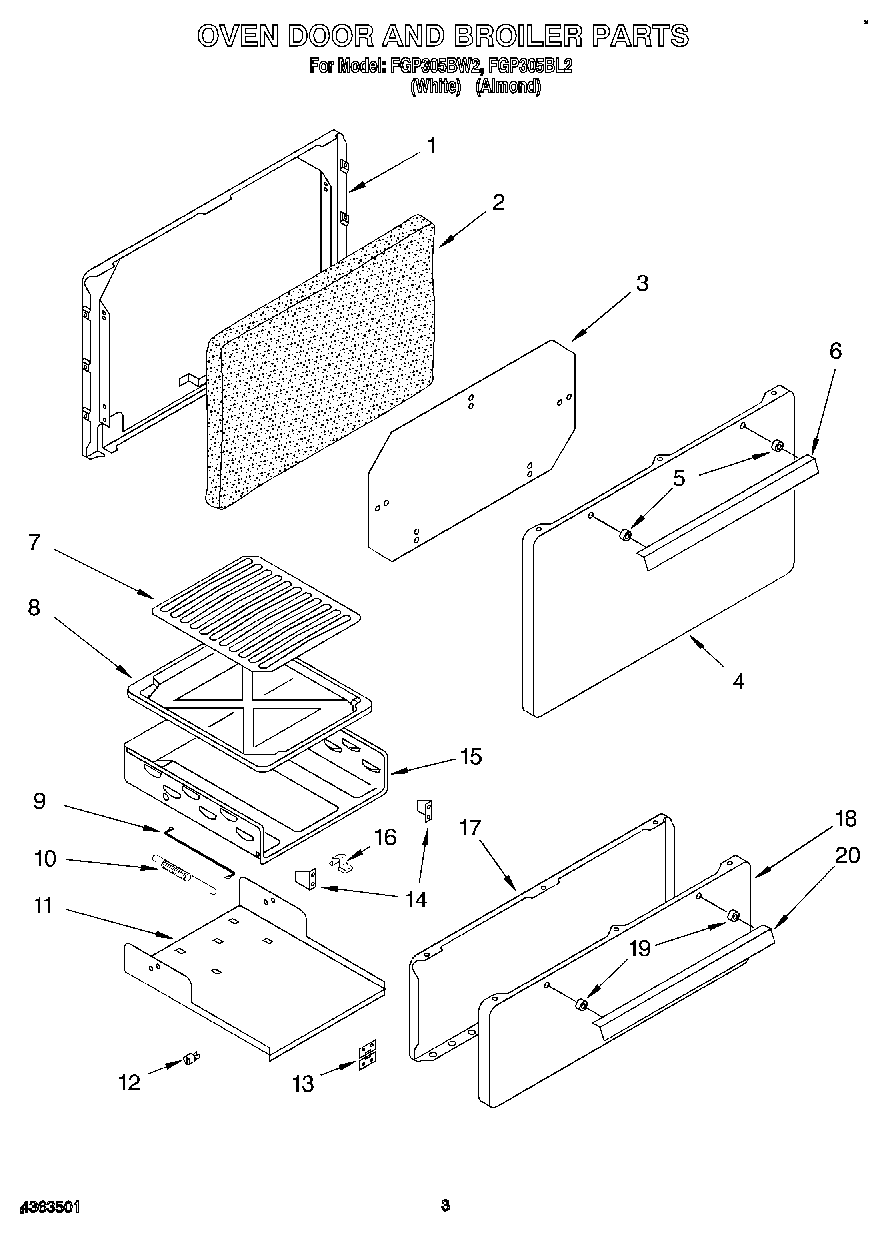

FGP305BL2 02 – OVEN DOOR AND BROILERadmin2025-04-26T08:40:25+00:00FGP305BL2 02 – OVEN DOOR AND BROILER
Products
| Position | Product |
|---|
| 1 | Liner, Oven Door |
| 2 | Insulation |
| 3 | Screw |
| 3 | Baffle, Oven Door |
| 4 | Panel, Oven Door (Almond) |
| 4 | Panel, Oven Door (White) |
| 7 | Grid |
| 8 | 4396923 Whirlpool Broil Pan Set Gray Porcelain |
| 9 | Rod, Push-Pull |
| 10 | Spring (2) |
| 11 | Carriage Broiler |
| 12 | W10709871 Whirlpool Drawer Glide |
| 13 | Hinge, Door |
| 14 | Bracket |
| 15 | Body, Brolier |
| 16 | Clip, Broiler |
| 17 | Liner, Broiler Door |
| 18 | Panel, Broiler (White) |
| 18 | Panel, Broiler (Screw) |
| 18 | WP308685 Whirlpool Microwave Screw |
| 18 | Panel, Broiler (Almond) |
| 19 | Spacer (4) |
| 20 | Screw |
| 20 | Handle, Door (2) |
