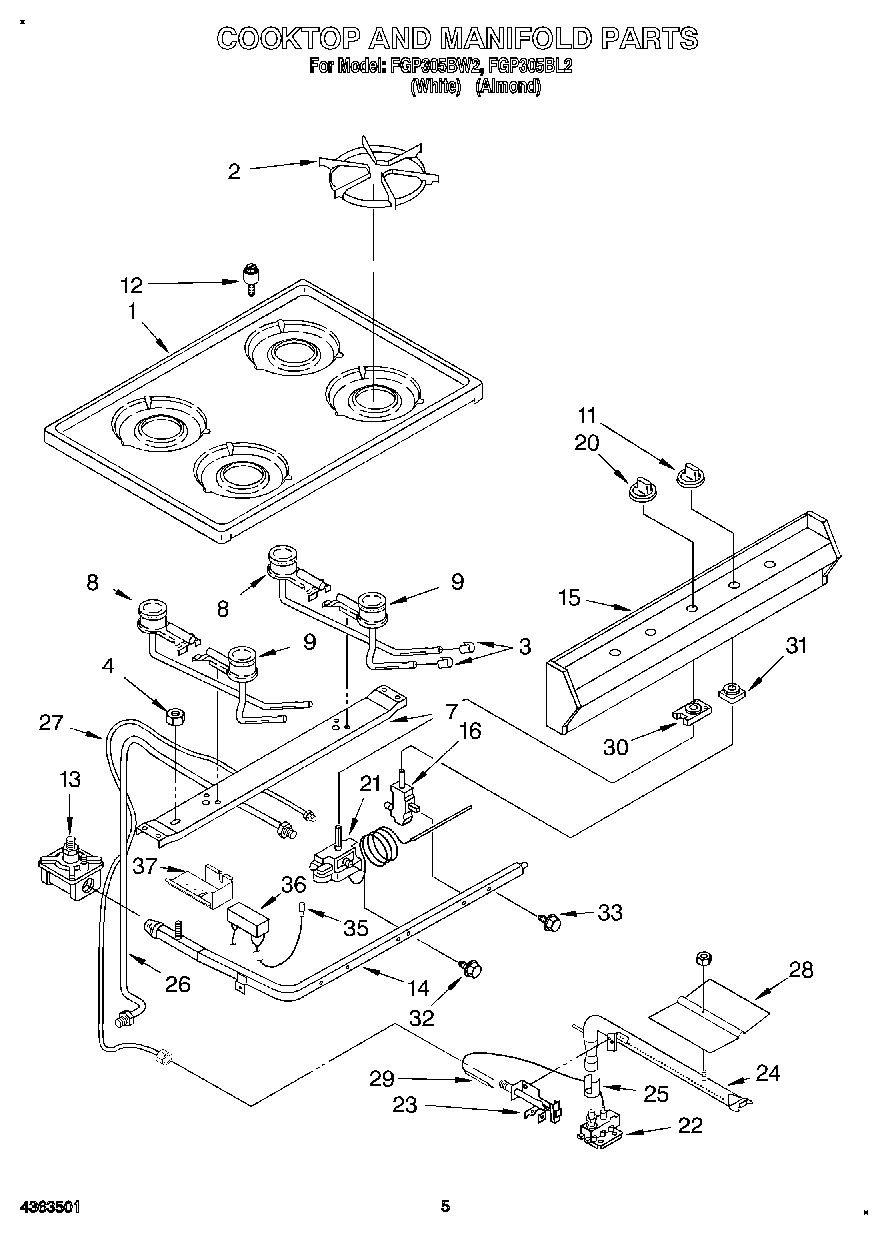

FGP305BL2 03 – COOKTOP AND MANIFOLD, LIT/OPTIONAL

Products

Position	Product
	Use & Care Guide
	Installation Instructions
1	Cooktop (Almond)
1	Cooktop (White)
2	Grate (4)
3	Shutter, Air (4)
4	Nut, Hex
7	Support, Burner
8	Burner, Rear (2)
8	Screw, 10-12 X 3/8 (2)
9	Burner, Front (2)
9	Screw
11	Knob, Gas Valve
12	Speed Clip (4)
12	Locator Stud (2)
13	Regulator, Pressure
14	Manifold
14	WP308685 Whirlpool Microwave Screw
15	Panel, Manifold
16	Valve, 90~ (4) (Includes Ill. No. 33)
20	Knob, Thermostat
21	Thermostat (Includes Ill. No. 30)
22	Valve, Safety
22	WP3387230 Whirlpool Screw
23	Screw, Thermostat Mounting (2)
23	Pilot
24	Burner, Oven
25	Shutter, Burner
26	Tubing 3/8`` (Thermostat To Safety Valve)
27	Tubing 3/16`` (Thermostat To Pilot)
28	Spreader, Flame
29	Ignitor, Oven
30	WP878009 Whirlpool Igniter Switch
31	WP4157180 Whirlpool Surface Burner Ignition Switch
32	Bolt, Thermostat Mounting (2)
33	Bolt, Valve Mounting
35	Ignitor (L.H.)
35	Ignitor (R.H.)
36	Module, Spark
37	Cover, Spark Module
37	FOIL, ALUMINUM OVEN (18`` X 25 )
37	WPW10208653 Whirlpool Insulation
37	Harness, Wiring
