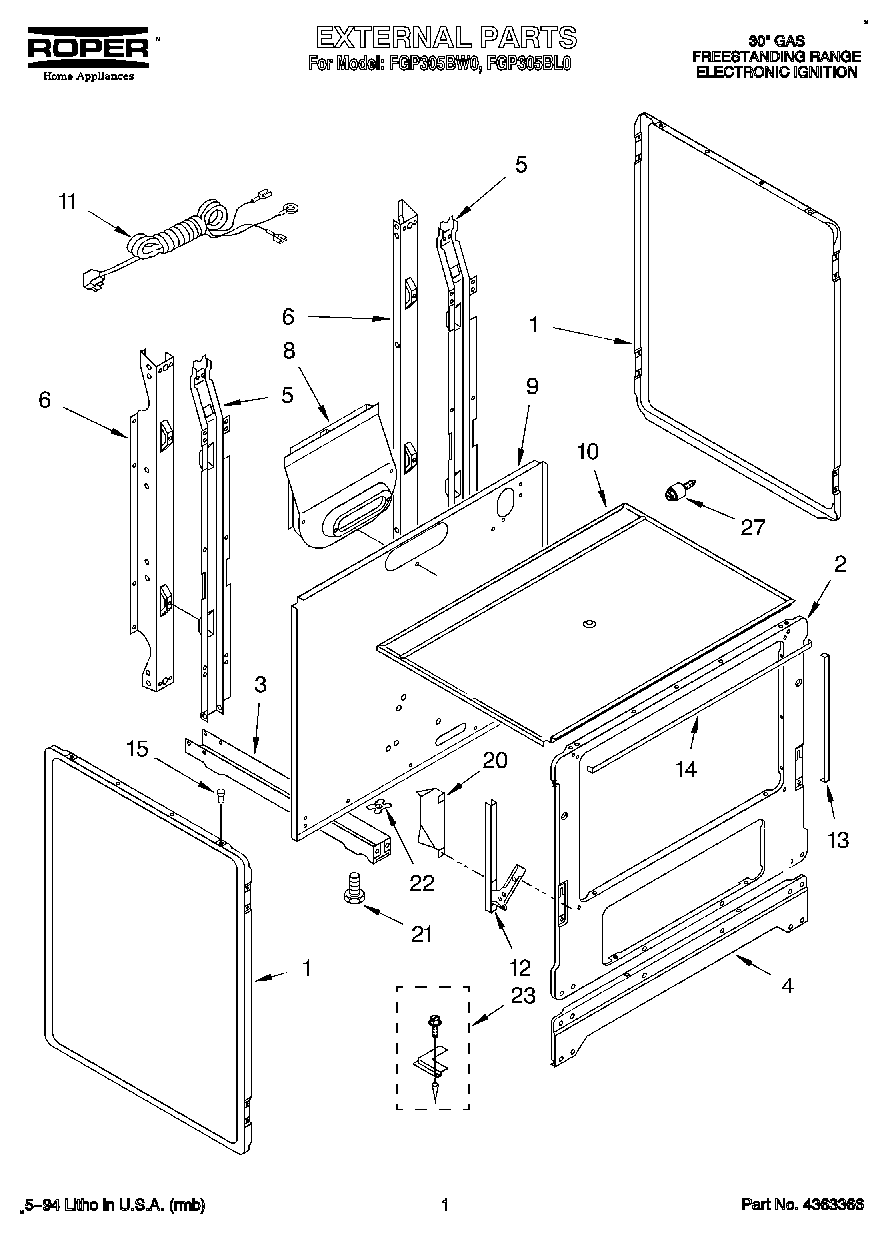

| 1 | Panel, Side (2) (White) |
| 1 | Panel, Side (2) (Almond) |
| 2 | Frame, Front |
| 3 | Rail, Base (2) |
| 4 | Screw, 10-12 X 1/2 (4) |
| 4 | Base, Front |
| 5 | Screw, 10-32 X 1/2 (1) |
| 5 | Support, Main (2) |
| 6 | WP308685 Whirlpool Microwave Screw |
| 6 | SCREW |
| 6 | Support, Rear (2) |
| 8 | Box, Flue |
| 9 | Panel, Rear |
| 10 | Burner Box |
| 11 | Cord, Power |
| 12 | Screw |
| 12 | Hinge, Door (2) |
| 12 | Screw |
| 13 | Seal, Door (2) (Side) |
| 14 | Seal, Door (Top) |
| 15 | Bumper, Cooktop (2) |
| 20 | Shield, Insulation |
| 21 | Leg, Leveler |
| 22 | Nut (4) |
| 23 | Anti-Tip Kit |
| 27 | Locator stud (2) |
| 27 | Stud Screw (2) |
