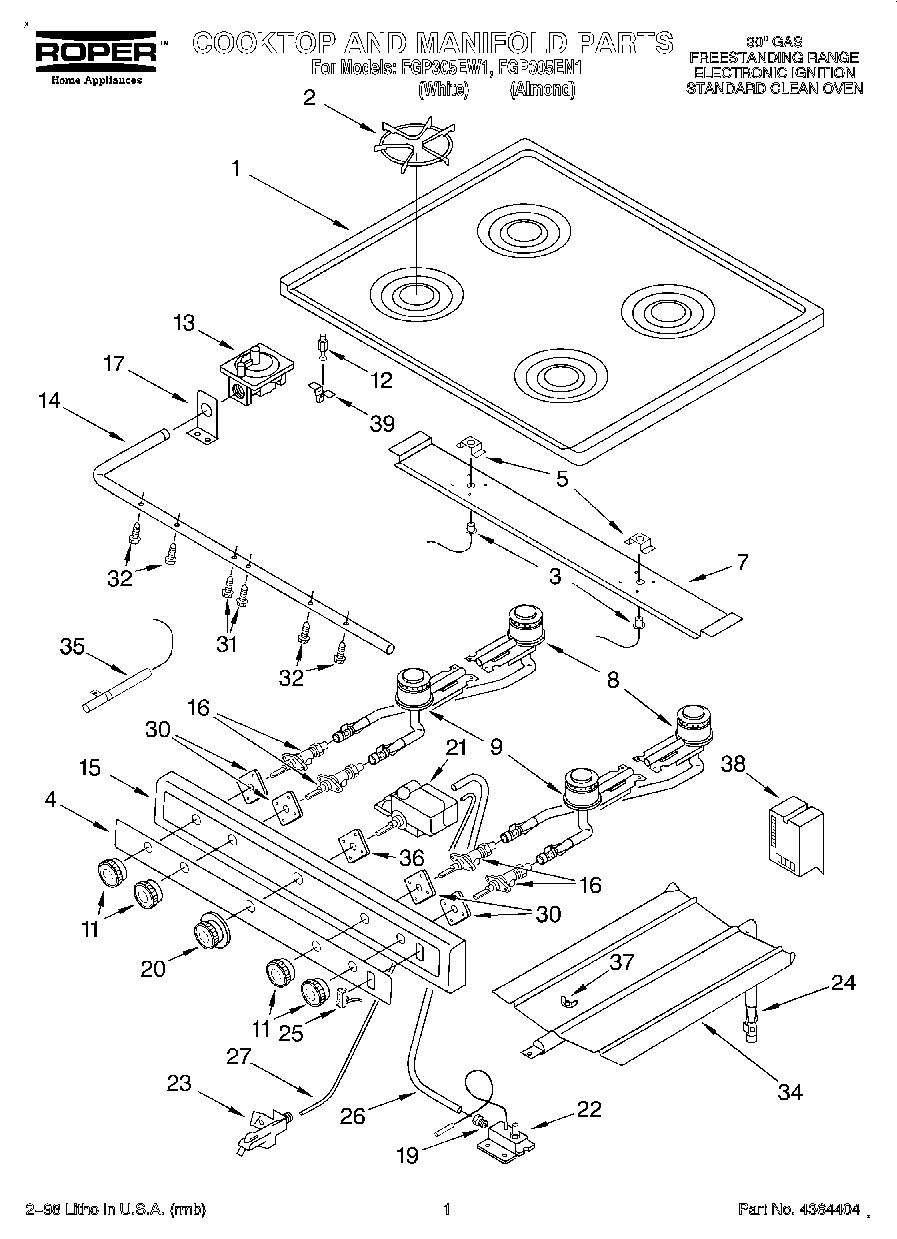

FGP305EN1 01 – COOKTOP AND MANIFOLDadmin2025-04-26T08:40:02+00:00FGP305EN1 01 – COOKTOP AND MANIFOLD
Products
| Position | Product |
|---|
| 1 | Cooktop (White) |
| 1 | Cooktop (Almond) |
| 2 | Grate (4) |
| 3 | Ignitor, Surface (Left) |
| 3 | Ignitor, Surface (Right) |
| 4 | Overlay, Manifold Cover |
| 5 | Screw, 8-18 x 3/8 |
| 5 | Cover, Pilot |
| 7 | Support, Burner |
| 8 | Burner, Top Rear |
| 9 | Burner, Top Front |
| 11 | Knob, Burner (Black) |
| 12 | Strike Pin W/Nut |
| 13 | Pressure Regulator |
| 14 | Pipe, Manifold |
| 15 | Panel, Manifold (Includes No.4) |
| 16 | Valve, Burner (Includes No.32) |
| 17 | Support, Manifold |
| 19 | Loxit Fitting 3/8`` |
| 20 | Knob, Thermostat (Black) |
| 21 | Thermostat, Oven (Includes No. 31) |
| 22 | Screw, 10-12 x 1/2 |
| 22 | Valve, Safety |
| 23 | Pilot, Oven Burner |
| 24 | Screw, 10-24 x 5/8 |
| 24 | Burner, Oven |
| 25 | Switch, Oven Light |
| 26 | Tubing, Oven 3/8`` O.D. |
| 27 | Tubing, Pilot 3/16`` O.D. |
| 30 | Switch, Valve |
| 31 | Bolt, Thermostat |
| 32 | Bolt, Valve Mtg. |
| 34 | Flame Spreader |
| 35 | Electrode, Oven |
| 35 | Screw, 6-32 x 1/4 |
| 36 | Switch, Thermostat |
| 37 | Wingnut |
| 38 | Spark Module |
| 39 | CATCH, STRIKEPIN |
