FGP305EN4 02 – OVEN

FGP305EN4 02 – OVEN

Written by

in

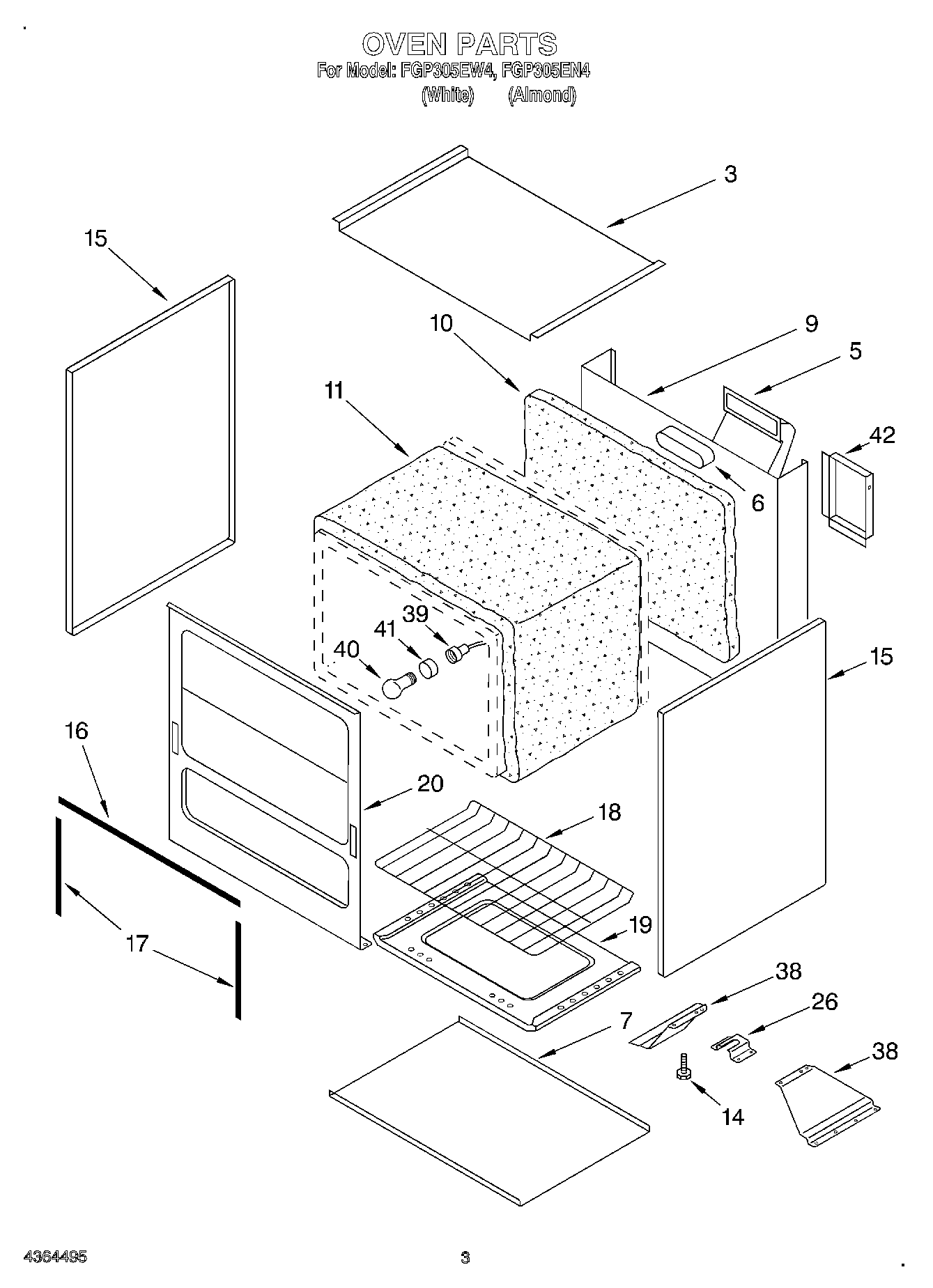

FGP305EN4 02 – OVEN

Products

Position	Product
3	Bottom, Burner Box
5	Flue Box
6	Ring, Flue Box
7	Bottom, Main
9	Back, Main
10	Insulation, Back
11	Insulation, Wrap
14	LEG, LEVELER
15	Panel, Side (Almond)
15	Panel, Side (White)
16	Gasket, Oven Door
17	Gasket, Oven Door Side
18	Rack, Oven
19	Bottom, Oven
20	Frame, Front
26	8190785 Whirlpool Oven Bracket
38	Support, Side (Left)
38	Support, Side (Right)
39	RECEPTACLE, LIGHT
40	RANGE ONLY 40W 120V APPL BULB
41	Ring, Oven Light
42	Wire Bushing
42	Thermostat Wire
42	Power Cord
42	Strain Relief
42	Box, Power
