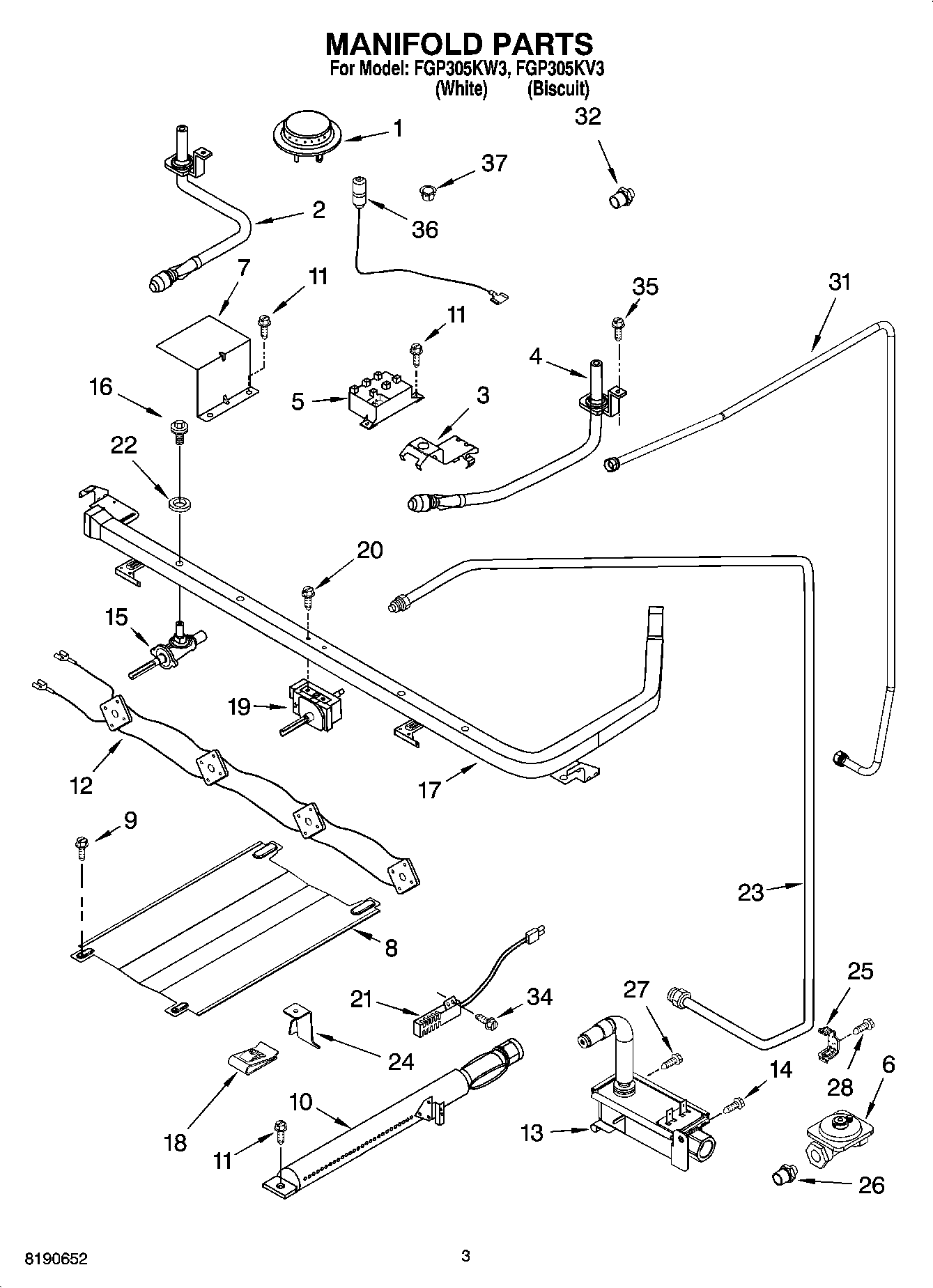

FGP305KV3 03 – MANIFOLD PARTS

Products

Position	Product
1	WP98004410 Whirlpool Top Burner
2	WP6610243 Whirlpool Venturi
3	Brkt., Venturi (4)
4	WP6610244 Whirlpool Venturi Assembly
5	W11590249 Whirlpool Spark Module
6	Regulator
7	98007192 Whirlpool Cover Model
8	98015099 Whirlpool Oven Burner Baffle
9	SCREW
10	WP98012138 Whirlpool Oven Burner
12	WPW10361492 Whirlpool Wire Harness
13	WP98014893 Whirlpool Gas Safety Valve Assembly
14	W10837731 Whirlpool Screw Assembly
15	Valve, Burner (4) (9,500 BTU)
16	WPW10277003 Whirlpool Screw
17	98013577 Whirlpool Oven Manifold Pipe
18	98009179 Whirlpool Oven Nut
19	WPW10641988 Whirlpool Oven Thermostat
20	WP3400882 Whirlpool Screw
21	W10918546 Whirlpool Oven Range Igniter
22	Washer, Valve (4)
23	WPW10469571 Whirlpool Gas Tubing
24	98013314 Whirlpool Oven Support Bracket
25	98007410 Whirlpool Oven Mounting Bracket
26	98007431 Whirlpool Oven Fitting
27	98013634 Whirlpool Oven Screw
28	Screw, Ground
31	Tubing, Inlet
32	Fitting 1/4to9/16
34	W11676351 Whirlpool Screw
35	W10837674 Whirlpool Screw
36	WPW10209657 Whirlpool Oven Surface Igniter
36	WPW10209656 Whirlpool Surface Ignitor
37	W10854964 Whirlpool Orifice Spud
37	WPW10278150 Whirlpool Clip Assembly
37	FOLLOWING PARTS NOT ILLUSTRATED
