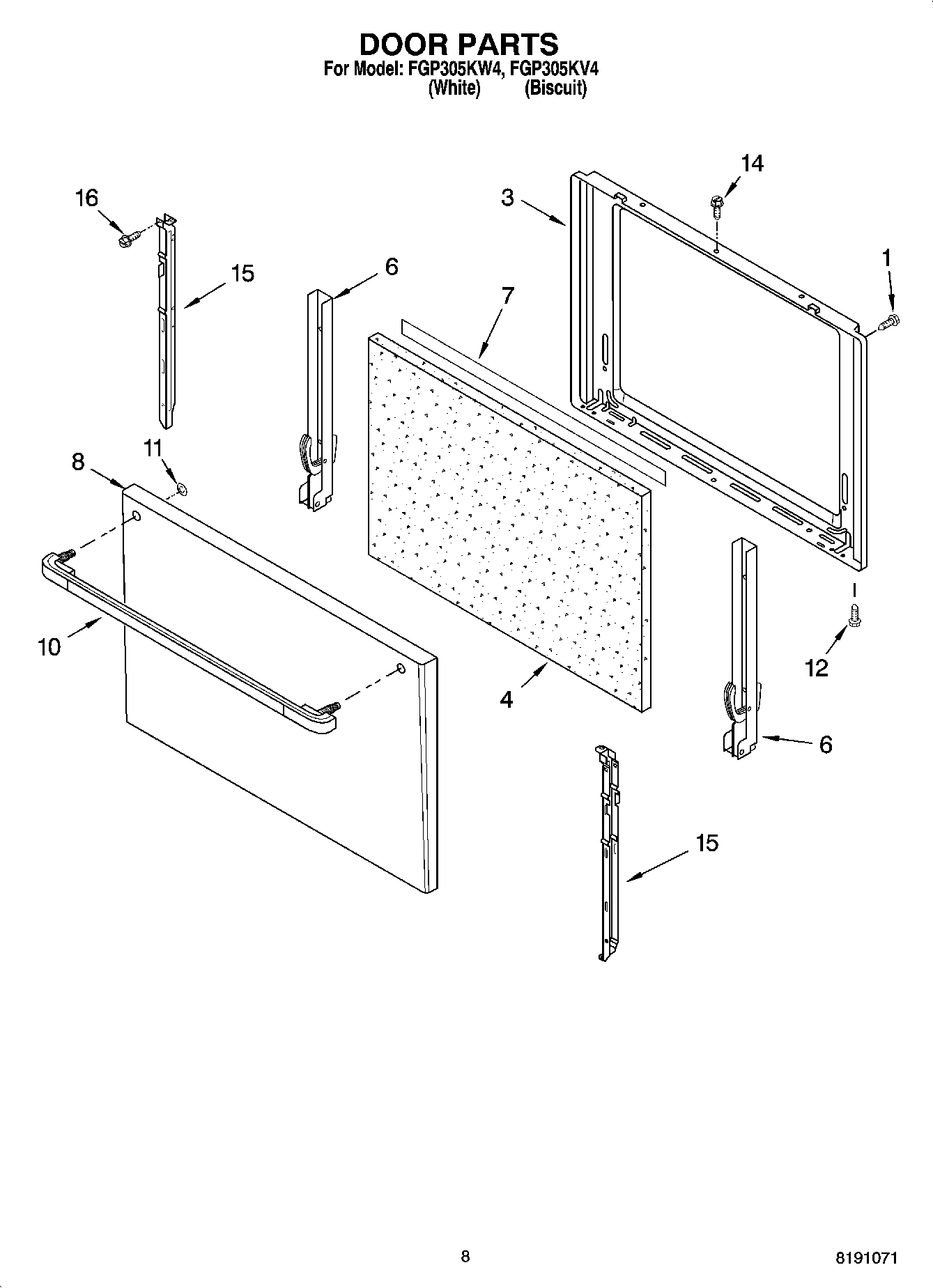

FGP305KW4 06 – DOOR PARTS, OPTIONAL PARTS

Products

Position	Product
	WPL ARI57577A6
	WP3391018 Whirlpool Wire Tie
	98015022 Whirlpool Bushing Assembly
	WPL 8316781
	Grease
	3196696 Whirlpool Clip
	8212471 Whirlpool Oven Paint
	Wire (14 Ga. 200 c Brown)
	Wire (12 Ga. 150 c Black)
	CLIP, WIRE
	WPW10477747 Whirlpool Anchor Tip
	WPL ARI57576A9
	WPL ARI57575A7
	WPL ARI57574A2
	WPL ARI57573A6
	WPL ARI57572A6
	98014534 Whirlpool Wire Harness
	WPL ARI57578A8
	WPL 98005915
	Wire (14 Ga. 150 c Yellow)
	Wire (14 Ga. 150 c Orange)
	549193 Whirlpool Refrigerator Power Clamp
	511873 Whirlpool Refrigerator Paint
	4392901 Whirlpool Biscuit Spray Paint
	4392899 Whirlpool Biscuit Touch-Up Paint
	350942 Whirlpool Spray Paint
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	350930 Whirlpool White Spray Paint
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
	WPL 799832
	814381 Whirlpool Pin
	WPW10208653 Whirlpool Insulation
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Blue)
	Wire, 25` Roll (Red 14 Ga.)
	285006 Whirlpool Spray
	242831 Whirlpool Oven Wire
1	Screw
3	Liner, Door
4	Insulation, Door
6	Hinge, Door (2)
7	Retainer, Upper (2)
8	Panel, Oven Door (Biscuit)
8	Panel, Oven Door (White)
10	W10819915 Whirlpool Door Handle
11	WP98004650 Whirlpool Nut
12	WP59002061 Whirlpool Microwave Screw
14	3196166 Whirlpool Screw
15	98004629 Whirlpool Oven Retainer
15	98004564 Whirlpool Oven Retainer
16	WP3400805 Whirlpool Screw Assembly
