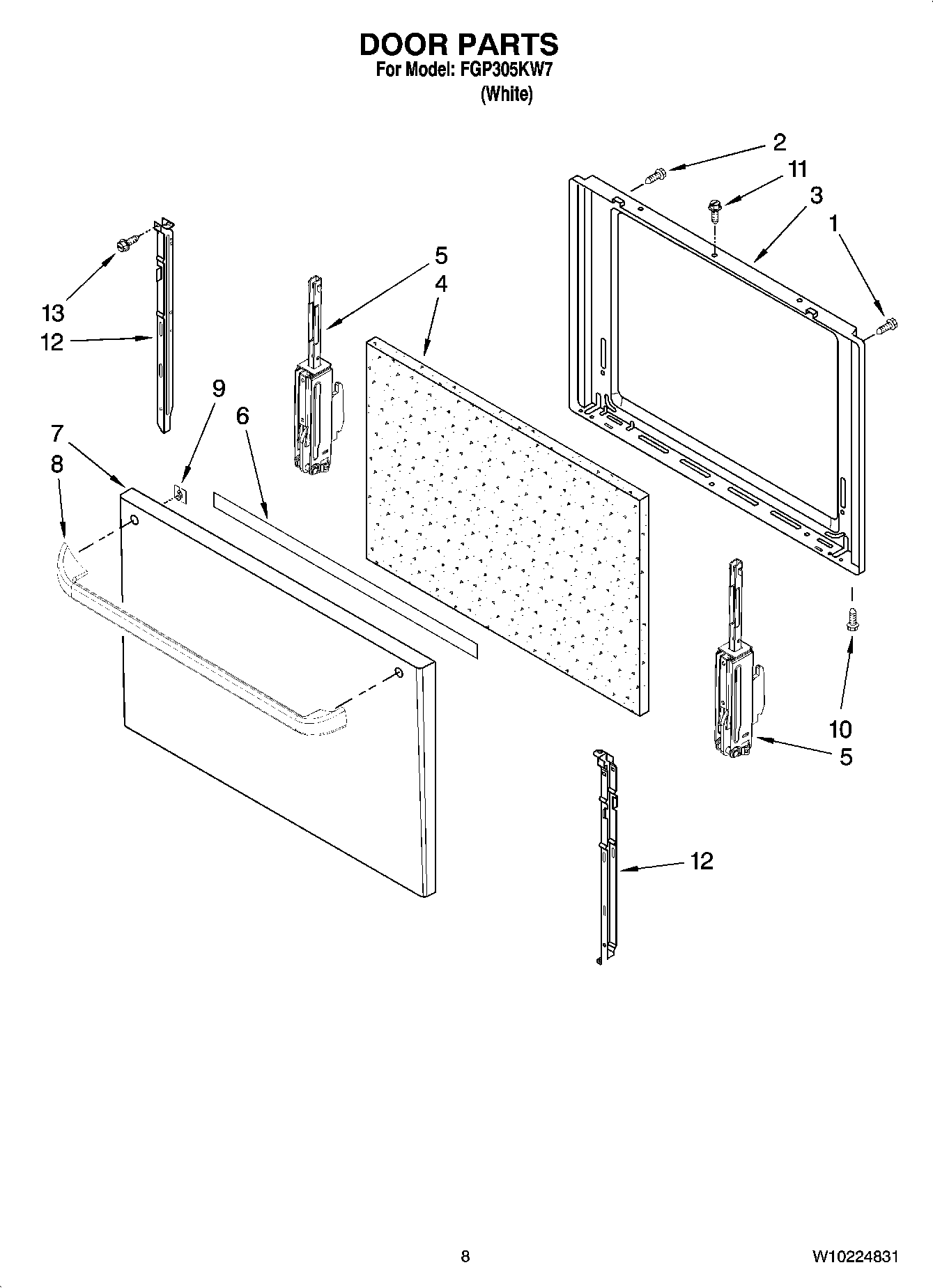

FGP305KW7 06 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

FGP305KW7 06 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

FGP305KW7 06 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
ANTI-TIP KIT
3196696 Whirlpool Clip
Grease
98015022 Whirlpool Bushing Assembly
WP3391018 Whirlpool Wire Tie
98012220 Whirlpool Oven Door Pin
WPW10477747 Whirlpool Anchor Tip
98014534 Whirlpool Wire Harness
Miscellaneous
Following Parts Not Illustrated
REFINISHING MATERIAL
Insulation
WIRING HARNESS PARTS
8212471 Whirlpool Oven Paint
4392899 Whirlpool Biscuit Touch-Up Paint
4392901 Whirlpool Biscuit Spray Paint
350942 Whirlpool Spray Paint
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
511873 Whirlpool Refrigerator Paint
350930 Whirlpool White Spray Paint
549193 Whirlpool Refrigerator Power Clamp
285006 Whirlpool Spray
WPW10208653 Whirlpool Insulation
WPL 799832
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
1SCREW
2W11206744 Whirlpool Screw
3Liner, Door
4Insulation, Door
5Hinge, Door (Right)
598017873 Whirlpool Oven Door Hinge
6Retainer, Upper (2)
7WP98017968W Whirlpool Door Panel
8W10819915 Whirlpool Door Handle
9Bracket, Handle (2)
10WP59002061 Whirlpool Microwave Screw
113196166 Whirlpool Screw
1298004629 Whirlpool Oven Retainer
1298004564 Whirlpool Oven Retainer
13WP3400805 Whirlpool Screw Assembly
