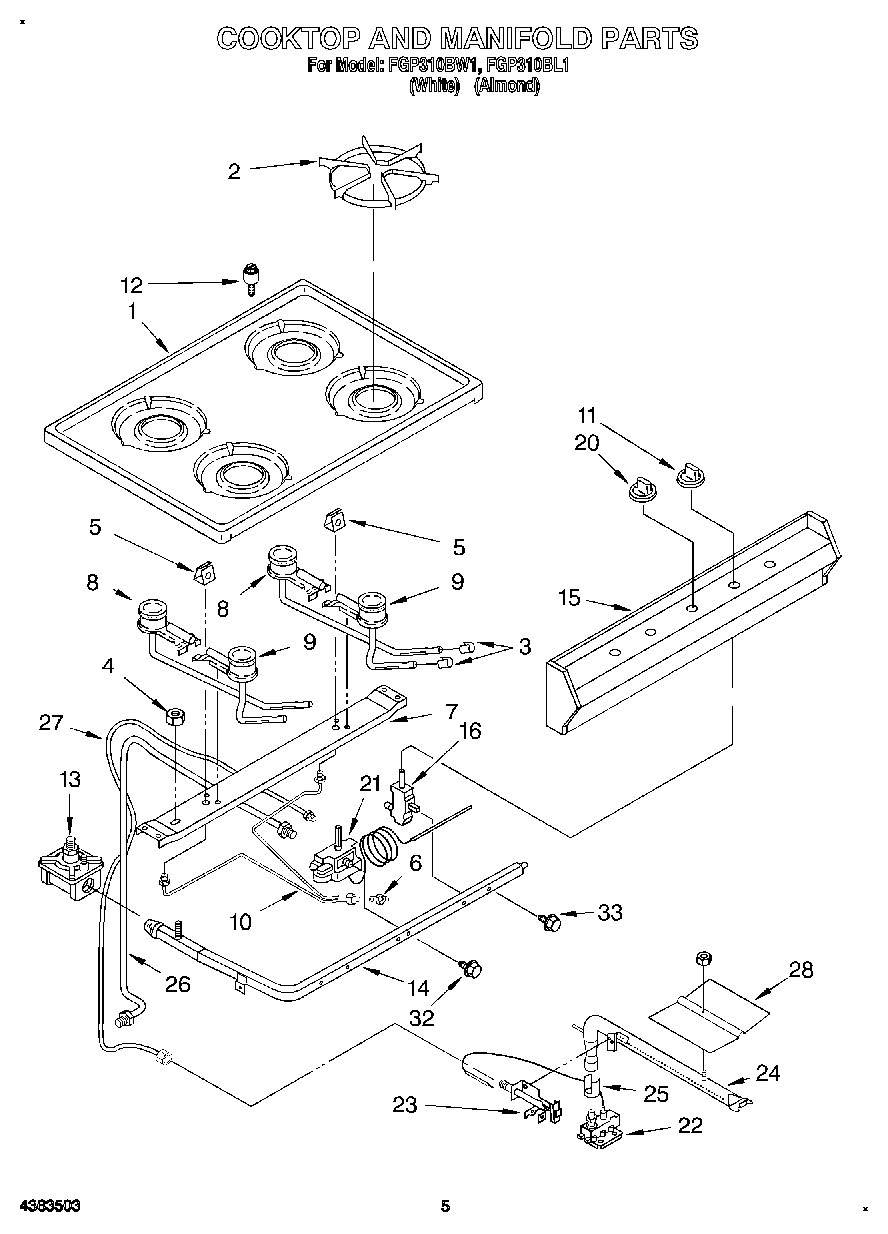

FGP310BW1 04 – COOKTOP AND MANIFOLD, LIT/OPTIONAL

Products

Position	Product
	Installation Instructions
	Use & Care Guide
1	Cooktop (White)
1	Cooktop (Almond)
2	Grate (4)
3	Shutter, Air (4)
4	Nut, Hex
5	Cover, Pilot (2)
6	Filter, Pilot
7	Support, Burner
8	Burner, Rear (2)
8	Screw, 10-12 X 3/8 (2)
9	Burner, Front (2)
9	Screw
10	Tubing, Pilot (Incl. No. 6)
11	Knob, Gas Valve
12	Locator Stud (2)
12	Speed Clip (4)
13	Regulator, Pressure
14	Manifold
14	WP308685 Whirlpool Microwave Screw
15	Panel, Manifold
16	Valve, 90~ (4) (Includes Ill. No. 33)
20	Knob, Thermostat
21	Thermostat (Includes Ill. No. 32)
22	Valve, Safety
22	WP3387230 Whirlpool Screw
23	Pilot
23	Screw
24	Burner, Oven
25	Shutter, Burner
26	Tubing 3/8“ (Thermostat To Safety Valve)
27	Tubing 3/16“ (Thermostat To Pilot)
28	Spreader, Flame
32	Bolt, Thermostat Mounting (2)
33	Bolt, Valve Mounting
33	WPW10208653 Whirlpool Insulation
33	FOIL, ALUMINUM OVEN (18“ X 25 )
