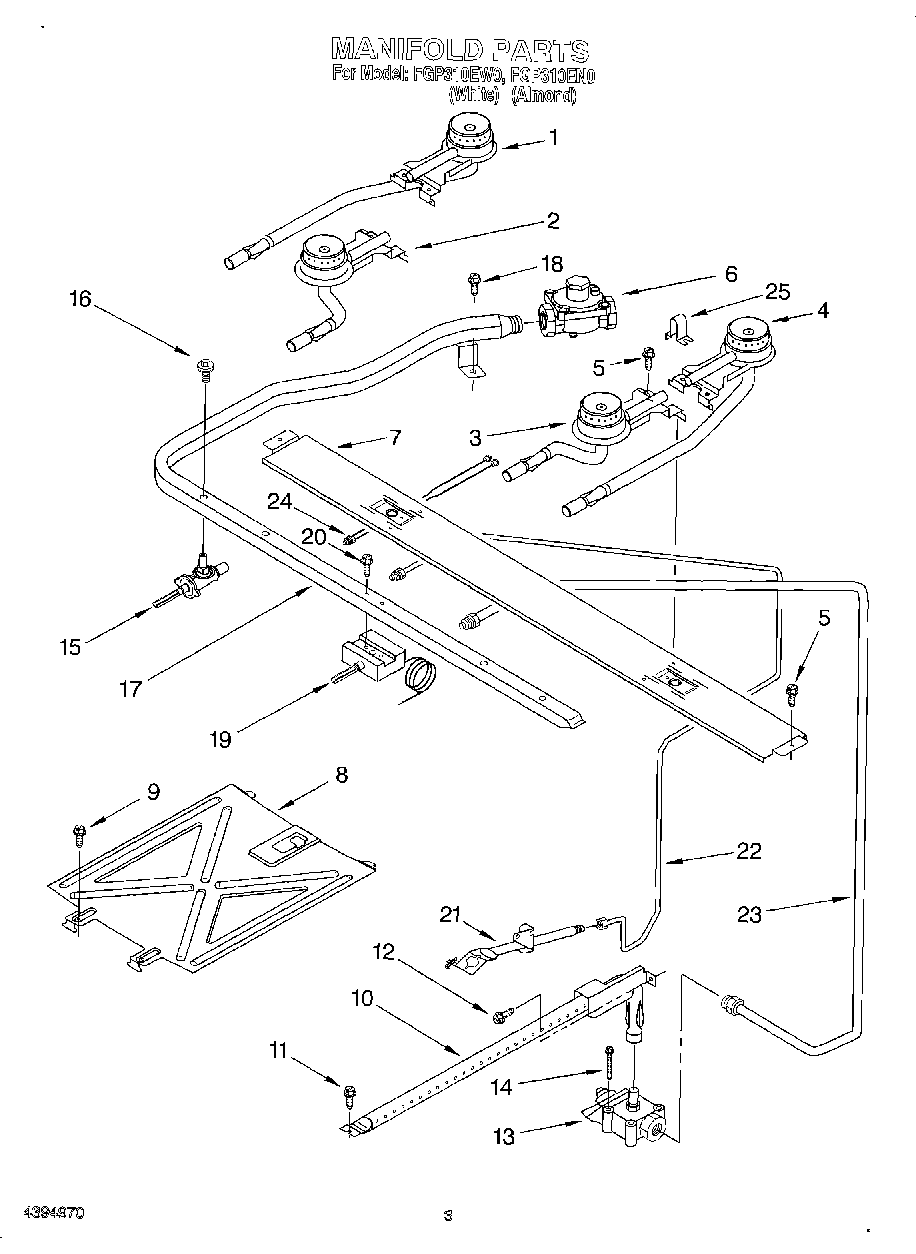

FGP310EN0 03 – MANIFOLD

Products

Position	Product
1	Burner (Left Rear)
2	Burner, Left Front
3	Burner (Right Front)
4	Burner (Right Rear)
5	W10491985 Whirlpool Screw
6	Regulator
7	Support, Burner
8	Spreader, Flame
10	Burner, Oven
11	SCREW
12	3196265 Whirlpool Oven Screw
13	Valve, Oven
14	Screw
15	Valve, Burner (4)
16	WP3186217 Whirlpool Screw
17	Pipe, Manifold
19	Thermostat
20	Screw
21	Pilot, Oven
22	Tubing (T-Stat to Oven Pilot)
23	Tubing (T-Stat to Oven Valve)
24	Tubing, Pilot
25	Cover, Pilot (2)
