FGP310EN0 04 – CHASSIS

FGP310EN0 04 – CHASSIS

Written by

in

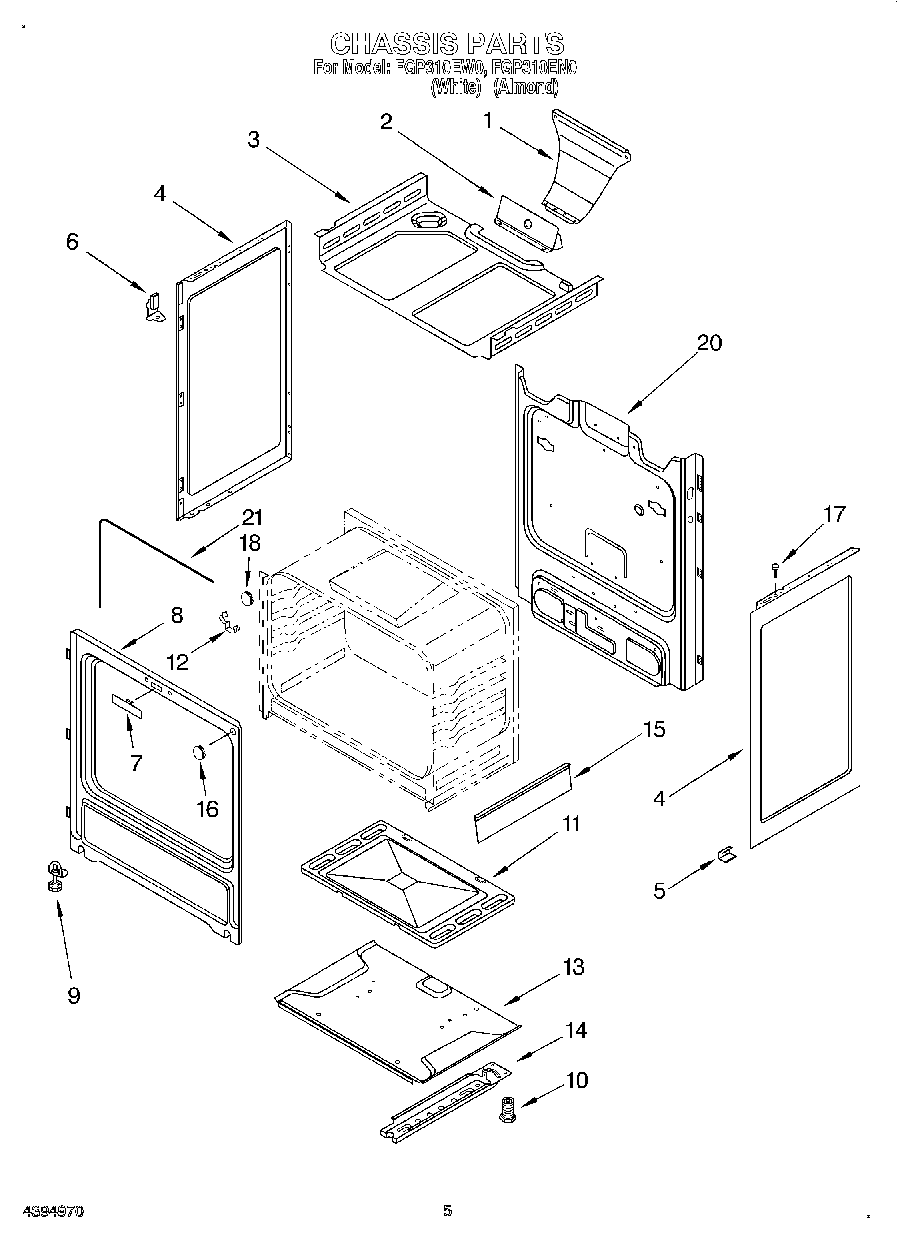

FGP310EN0 04 – CHASSIS

Products

PositionProduct
1WP3196557 Whirlpool Screw
1W11457094 Whirlpool Oven Flue
2WP8272747 Whirlpool Heat Shield
3Burner Box
4Panel, Side (2) (White)
4Panel, Side (2) (Almond)
4Screw
5Clip, Panel (6)
6Brkt, Manifold Mtg (Left Hand)
6Brkt, Manifold Mtg (Right Hand)
7Plug, Frame
8Frame, Front
8SCREW
9WP3196037 Whirlpool Leveling Foot
10WPW10058460 Whirlpool Appliance Levelling Leg
11Screw
11WP3195097 Whirlpool Oven Bottom
1298005642 Whirlpool Clip
13Baffle, Base
14W10491985 Whirlpool Screw
14WPW10306546 Whirlpool Base Rail
15Shield, Lower
16Plug Button
17238614 Whirlpool Bumper Hinge
18Button, Plug (25/32“ (2))
20Back, Main
21WPW10208653 Whirlpool Insulation
21W11688737 Whirlpool Insulation
21TIE,WIRE
21W11542153 Whirlpool Door Gasket
