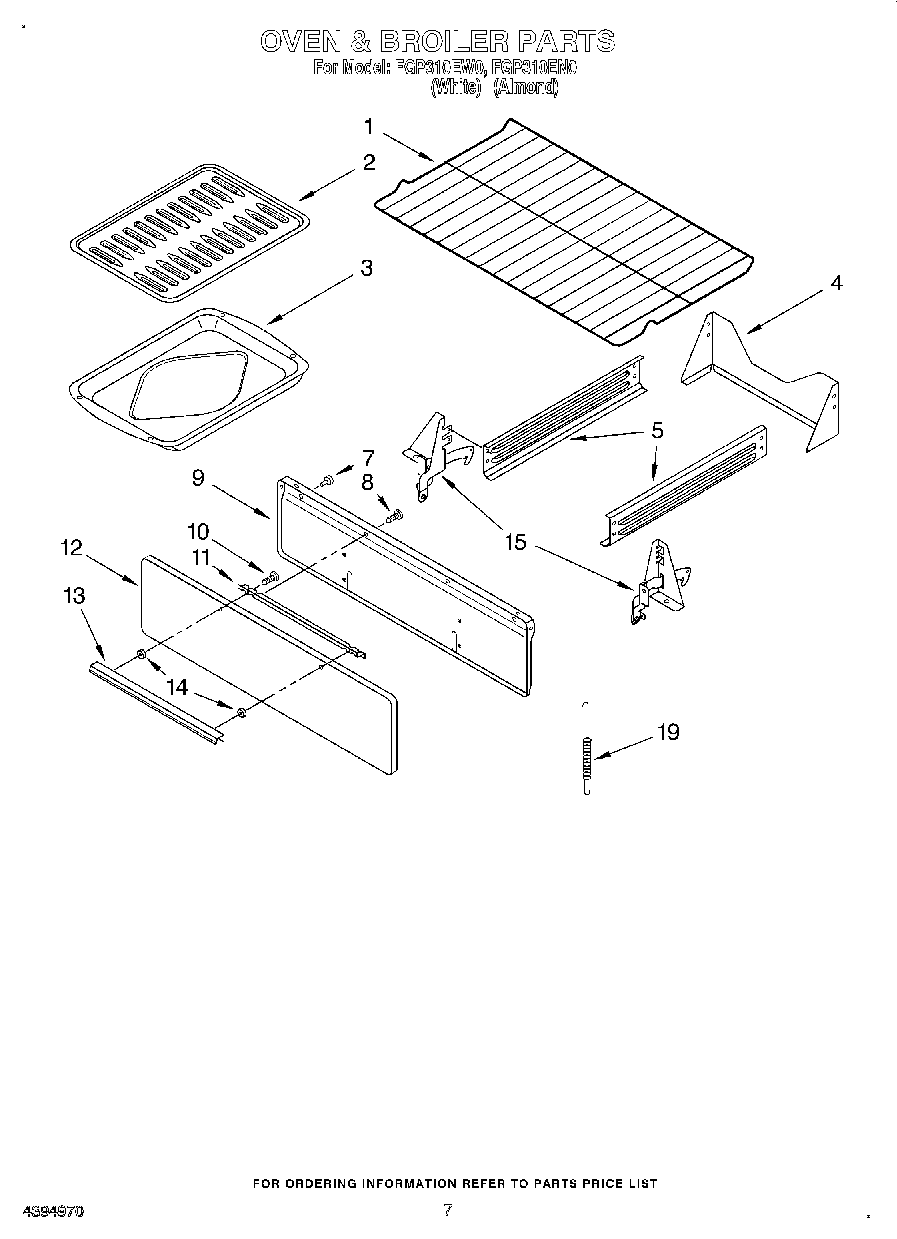

FGP310EN0 05 – OVEN AND BROILER

Products

PositionProduct
1WPW10256908 Whirlpool Oven Range Rack
2WP3195996 Whirlpool Pan Grid
3WP3196076 Whirlpool Broil Pan
4Bracket, Rear
4SCREW
5Panel, Guide (2)
5W10491985 Whirlpool Screw
7Bumper (4)
8Screw
9Liner, Door
10Screw, Handle (2)
11Bracket, Standoff
12Panel, Door (Almond)
12Panel, Door
13Handle, Brlr Door (Black)
14Spacer, Handle (2)
15Hinge, Brlr Door (Right Hand)
15Hinge, Brlr Door (Left Hand)
19Spring, Broiler
