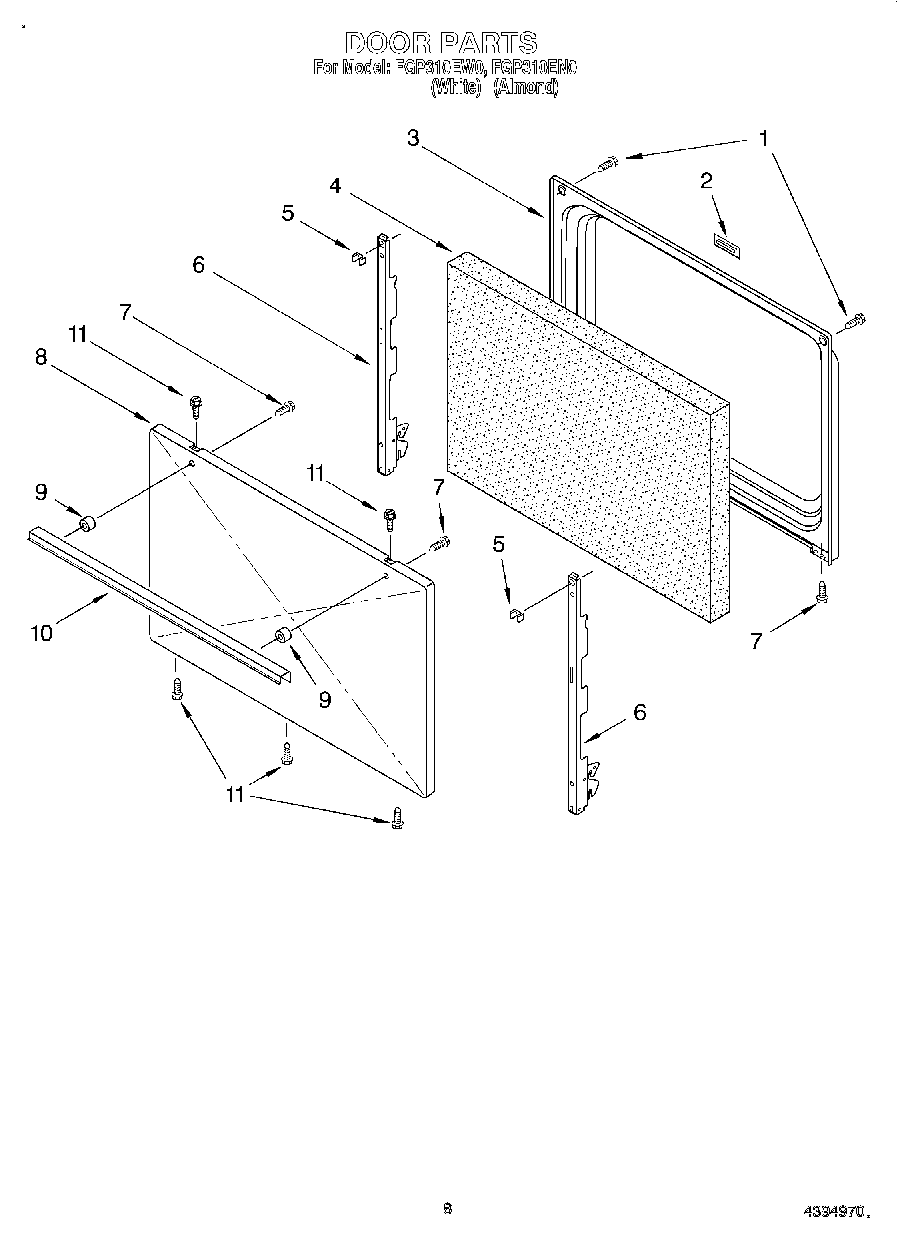

FGP310EW0 06 – DOOR, LIT/OPTIONAL

FGP310EW0 06 – DOOR, LIT/OPTIONAL

Written by

in

FGP310EW0 06 – DOOR, LIT/OPTIONAL

Products

Position	Product
	WPL LIT3196294
	Literature (Installation, Instructions (Template))
	WPL LIT3196325
1	Screw
2	Plug, Door
3	Liner, Door
4	Insulation, Door
5	Bracket, Saddle (2)
6	Hinge, Door (2)
7	WP3196163 Whirlpool Screw
8	Panel, Door (Almond)
8	W10903447 Whirlpool Door Panel Assembly
9	WP3196143 Whirlpool Spacer Assembly
9	Burner, Left Front
10	WP3195704 Whirlpool Door Handle Assembly
11	3196558 Whirlpool Oven Screw
11	Wire (14 Ga. 150 c Green)
11	Wire (14 Ga. 150 c Orange)
11	Wire (14 Ga. 150 c Yellow)
11	Wire (12 Ga. 150 c Black)
11	18 Ga. 80~c Rating (Red)
11	Wire (14 Ga. 200 c Brown)
11	1
11	8212471 Whirlpool Oven Paint
11	72113 Whirlpool Touch-Up Paint
11	Grease
11	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
11	LP Conversion Kit (Nat to LP)
11	Screw, Panel (2) (Almond)
11	Wire (14 Ga. 150 c Brown)
11	Wire (14 Ga. 150 c Blue)
11	242831 Whirlpool Oven Wire
11	Platinum (Uncut)
11	Enamal, Toast (1 Qt. Uncut)
11	Paint, Spray (13 Oz.) (Platinum)
11	Toast
11	Golden Harvest (Uncut)
11	Golden Harvest
11	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
11	Almond (Uncut)
11	WP72107 Whirlpool Touchup
11	799344 Whirlpool Refrigerator Paint
11	72017 Whirlpool Appliance Touch-Up Paint White
11	350956 Whirlpool Spray Assembly
11	WPL 72112
11	350942 Whirlpool Spray Paint
11	Paint, Spray 13 Oz. (Avocado)
11	paint, spray 13 oz. (coffee)
11	Paint, Touch-Up 1/2 Oz. (Coffee)
11	72109 Whirlpool Dacor Avocado Touch-Up Paint
11	285006 Whirlpool Spray
11	Wire, 25“ Roll (White 14 GA.)
11	Wire, 25` Roll (Red 14 Ga.)
11	Wire, 25` Roll (Black 14 Ga.)
11	FOIL, ALUMINUM OVEN (18“ X 25 )
11	WPW10208653 Whirlpool Insulation
11	WPL 799832
11	511873 Whirlpool Refrigerator Paint
11	350930 Whirlpool White Spray Paint
