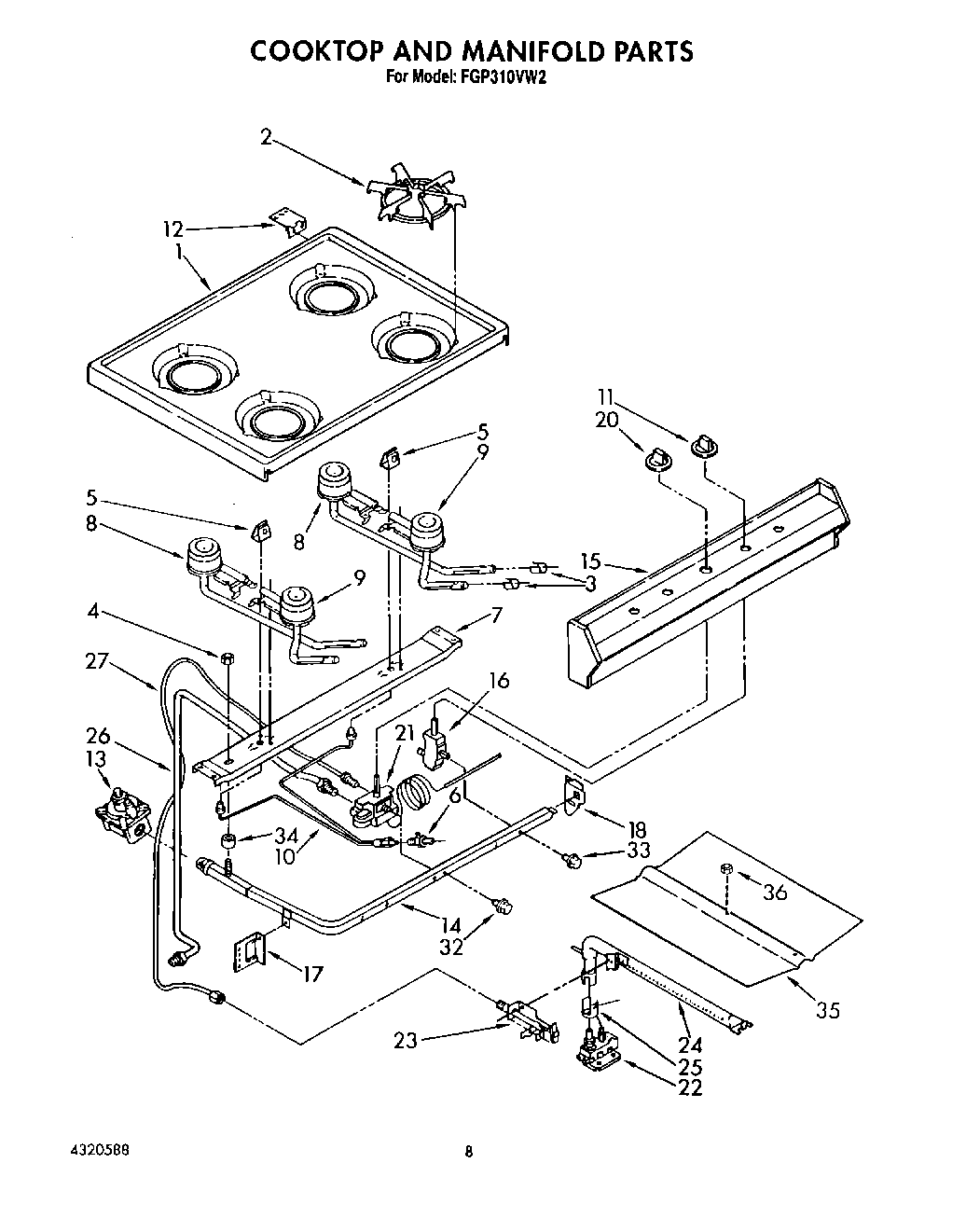

FGP310VL2 06 – COOKTOP AND MANIFOLD, LIT/OPTIONAL

Products

Position	Product
	Instuctions, Installation
	Guide, Use & Care
	WPL LIT4320588
2	Grate (4)
3	Shutter, Air (4)
4	Nut, Hex
5	Cover, Pilot (2)
6	Filter, Pilot
7	Support, Burner
8	Burner, Rear (2)
9	Screw, 10-12 X 3/8 (2)
9	Burner, Front (2)
10	Tubing, Pilot (Incl. No. 6)
11	Knob, Gas Valve
12	SCREW
12	Hinge, Maintop (2)
12	Speed Clip (4)
13	Regulator, Pressure
14	Manifold
15	Panel, Manifold
16	Valve, 90~ (4) (Includes Ill. No. 33)
17	Support, Manifold (L.H.)
18	Support, Manifold (R.H.)
18	WP308685 Whirlpool Microwave Screw
20	Knob, Thermostat
21	Thermostat (Includes Ill. No. 32)
22	WP3387230 Whirlpool Screw
22	Valve, Safety
23	Pilot
23	Screw, 10-24 X 1/4 (1)
24	Burner, Oven
25	Shutter, Burner
26	Tubing 3/8“ (Thermostat To Safety Valve)
27	Tubing 3/16“ (Thermostat To Pilot)
28	Cooktop (Almond)
28	Cooktop (White)
32	Bolt, Thermostat Mounting (2)
33	Bolt, Valve Mounting
34	Spacer, Manifold
35	Spreader, Flame
36	WPW10208653 Whirlpool Insulation
36	W10080180 Whirlpool Nut
36	FOIL, ALUMINUM OVEN (18“ X 25 )
