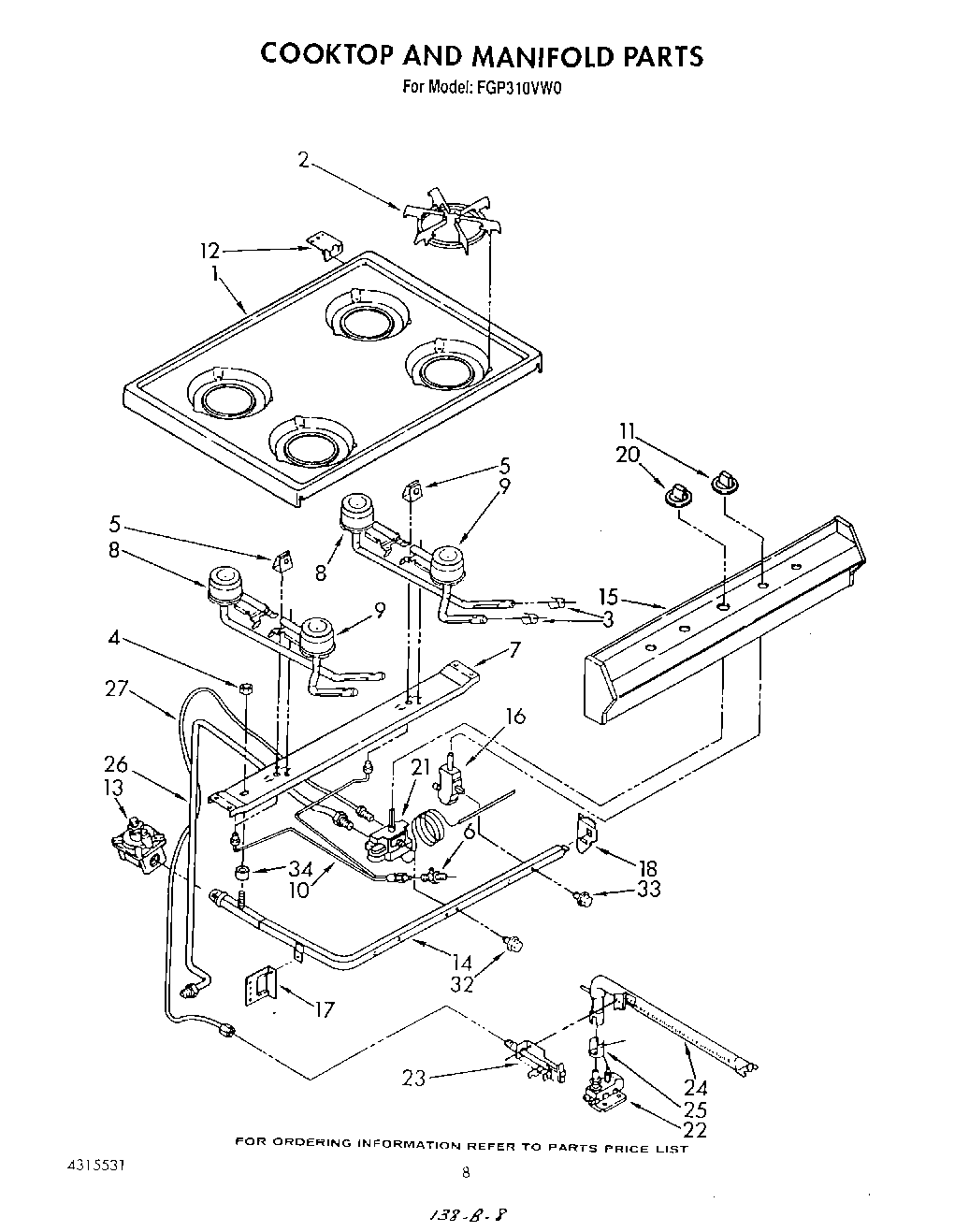

FGP310VW0 06 – COOKTOP AND MANIFOLD , LITERATURE AND OPTIONAL

Products

PositionProduct
Instuctions, Installation
List, Repa
Guide, Use & Care
1Cooktop (White)
1Cooktop (Almond)
2Grate (4)
3Shutter, Air (4)
4Nut, Hex
5Cover, Pilot (2)
6Filter, Pilot
7Support, Burner
8Burner, Rear (2)
9Burner, Front (2)
9Screw, 10-12 X 3/8 (2)
10Tubing, Pilot (Incl. No. 6)
11Knob, Burner (4)
12Speed Clip (4)
12SCREW
12Hinge, Maintop (2)
13Regulator, Pressure
14Manifold
15Panel, Manifold
16Valve, 90~ (4) (Includes Ill. No. 33)
17Support, Manifold (L.H.)
18WP308685 Whirlpool Microwave Screw
18Support, Manifold (R.H.)
20Knob, Thermostat
21Thermostat (Includes Ill. No. 32)
22WP3387230 Whirlpool Screw
22Valve, Safety
23Pilot
23Screw, 10-24 X 1/4 (1)
24Burner, Oven
25Shutter, Burner
26Tubing 3/8“ (Thermostat To Safety Valve)
27Tubing 3/16“ (Thermostat To Pilot)
32Bolt, Thermostat Mounting (2)
33Bolt, Valve Mounting
34Spacer, Manifold
34FOIL, ALUMINUM OVEN (18“ X 25 )
34WPW10208653 Whirlpool Insulation
