FGP310YL1 03 – SECTION

Products

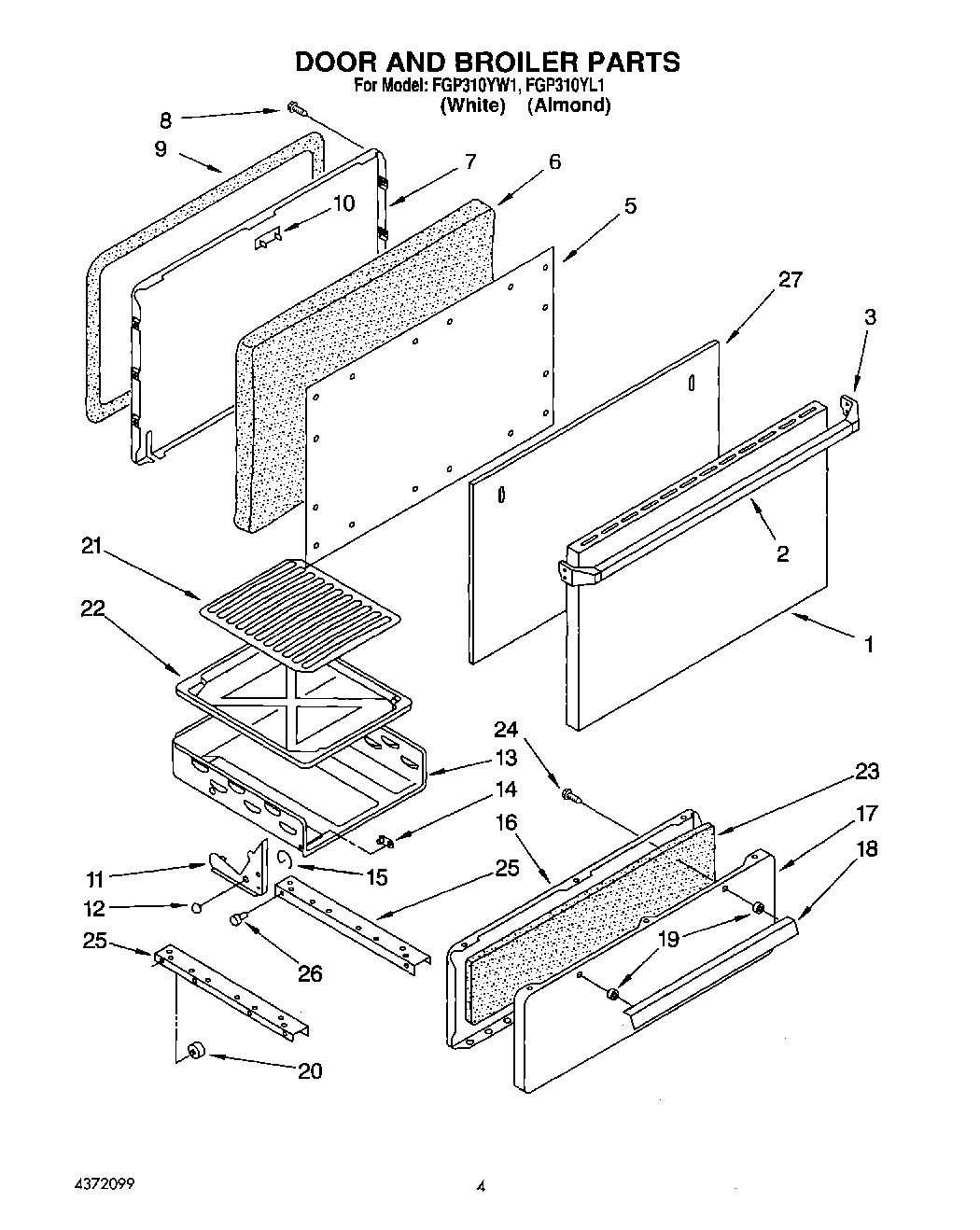

Position	Product
1	Panel, Door (White)
1	Panel, Door (Almond)
2	Handle, Door
3	Endcap (2)
5	Shield, Heat
6	Insulation
7	Liner, Oven Door
8	Screw, Handle
9	Seal, Door
10	Cover, Door
11	Bracket, Hinge (R.H.)
11	Bracket, Hinge (L.H.)
12	Fastener, Push Nut
13	Body, Broiler
14	Pin, Hinge (2)
15	Spring, Broiler (L.H.)
15	Spring, Broiler (R.H.)
16	Liner, Broiler Door
17	Panel, Drawer
18	Panel, Drawer (White)
18	Panel, Drawer (Almond)
18	Handle
19	Spacer, Handle
20	Glide, Drawer (6)
21	Insert, Broiler Pan
22	Pan, Broiler
23	Insulation
24	Screw, Handle (2)
25	Channel, Broiler
26	Button, Glide (2)
27	Plate, Door Weight
