FGP310YW1 02 – SECTION

Products

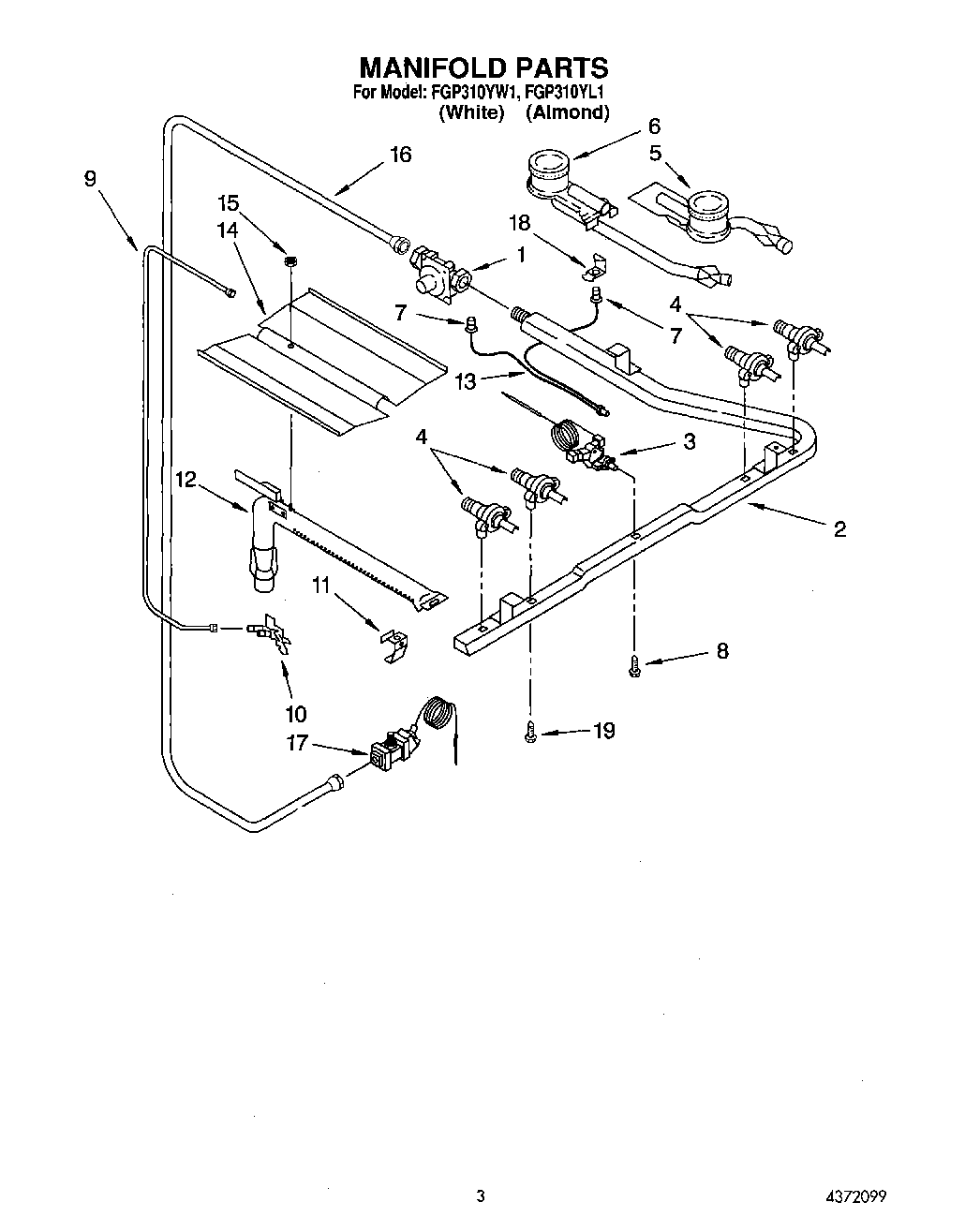

Position	Product
1	Regulator, Pressure
2	Pipe, Manifold
3	Thermostat
4	Valve, 2 pos (4) Includes Illus. 18
5	Burner, Front (2)
6	Burner, Rear (2)
7	Cap, Pilot (2)
8	Screw, Thermostat
9	Tubing, Thermostat
10	Pilot, Oven
11	Bracket, Burner
12	Burner, Oven
13	Tubing, Pilot
14	Baffle, Oven Burner
15	Nut, Hex (2)
16	Tubing, Valve
17	Valve, Safety
18	Shield, Pilot
19	WP3186217 Whirlpool Screw
