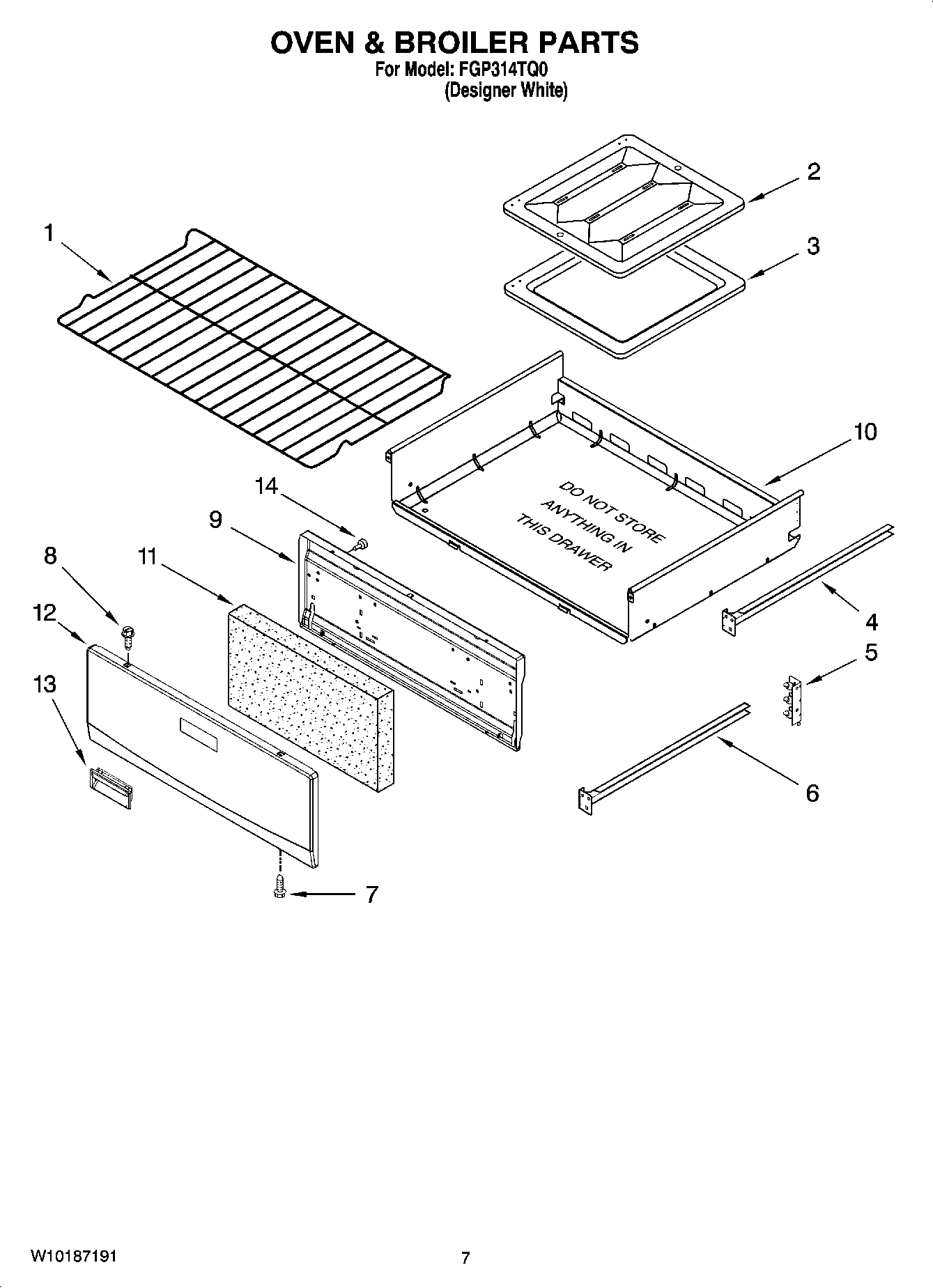

FGP314TQ0 05 – OVEN & BROILER PARTS

Products

Position	Product
1	Rack, Oven (2)
2	WP98003480 Whirlpool Grill Pan
3	WP98016005 Whirlpool Broiler Pan
4	98004994 Whirlpool Oven Drawer Guide
4	WPW10206639 Whirlpool Drawer Guide
5	98016666 Whirlpool Oven Support
5	98016664 Whirlpool Oven Support Assembly
6	WPW10206641 Whirlpool Drawer Guide
6	W10206642 Whirlpool Drawer Guide
7	WP3400805 Whirlpool Screw Assembly
8	3196166 Whirlpool Screw
9	Liner, Door
10	Drawer, Broiler
11	Insulation, Door
12	Panel, Door (White)
13	WP3405184 Whirlpool White Door Handle
14	BUMPER, DOOR
