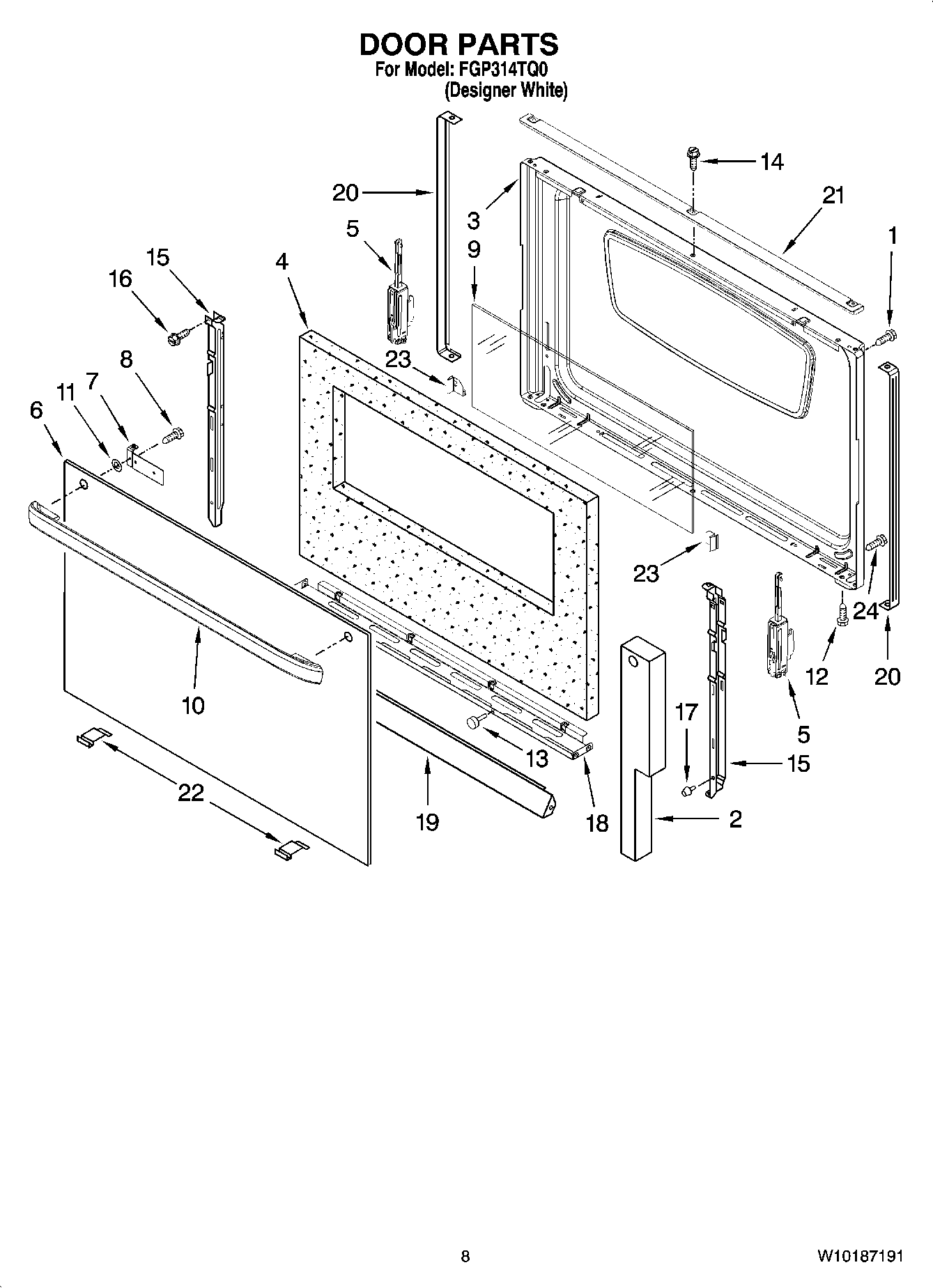

FGP314TQ0 06 – DOOR PARTS, OPTIONAL PARTS

FGP314TQ0 06 – DOOR PARTS, OPTIONAL PARTS

Written by

in

FGP314TQ0 06 – DOOR PARTS, OPTIONAL PARTS

Products

Position	Product
	WPL ARI57624A7
	CLIP, WIRE
	WP3391018 Whirlpool Wire Tie
	98015022 Whirlpool Bushing Assembly
	Grease
	3196696 Whirlpool Clip
	8212471 Whirlpool Oven Paint
	Wire (14 Ga. 200 c Brown)
	Wire (12 Ga. 150 c Black)
	98012220 Whirlpool Oven Door Pin
	WPW10477747 Whirlpool Anchor Tip
	WPL ARI57623A9
	WPL ARI57622A5
	WPL ARI57621A6
	WPL ARI57620A9
	WPL ARI57619A3
	WPL W10154425
	W10154424 Whirlpool Wire Harness
	WPL ARI57625A4
	Wire (14 Ga. 150 c Yellow)
	Wire (14 Ga. 150 c Orange)
	4392901 Whirlpool Biscuit Spray Paint
	4392899 Whirlpool Biscuit Touch-Up Paint
	350942 Whirlpool Spray Paint
	549193 Whirlpool Refrigerator Power Clamp
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
	799344 Whirlpool Refrigerator Paint
	WPL 799832
	WPW10208653 Whirlpool Insulation
	Wire, 25` Roll (Red 14 Ga.)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	350930 Whirlpool White Spray Paint
	511873 Whirlpool Refrigerator Paint
	Wire (14 Ga. 150 c Blue)
	242831 Whirlpool Oven Wire
	285006 Whirlpool Spray
	72017 Whirlpool Appliance Touch-Up Paint White
1	SCREW
2	W11688784 Whirlpool Insulation
2	Insulation (Right)
3	Liner, Door
4	Insulation, Door
5	Hinge, Door (Right)
6	Glass, Outer Door (White)
7	Support, Glass (2)
8	SCREW (STAINLESS)
9	WP98006801 Whirlpool Door Glass
10	WP98017915W Whirlpool Door Handle
11	Spacer (2)
12	WP59002061 Whirlpool Microwave Screw
13	98004723 Whirlpool Oven Bumper
14	WP98008544 Whirlpool Screw Assembly
15	98004564 Whirlpool Oven Retainer
15	98004629 Whirlpool Oven Retainer
16	WP3400805 Whirlpool Screw Assembly
17	98004227 Whirlpool Oven Bumper
18	98004938 Whirlpool Oven Retainer
19	Insulation, Retainer-Bottom
20	98006794 Whirlpool Oven Door Trim
21	Top Trim, Door (White)
22	WP98010185 Whirlpool Door Trim
23	98004952 Whirlpool Oven Clip
23	98004953 Whirlpool Clip
24	W11206744 Whirlpool Screw
