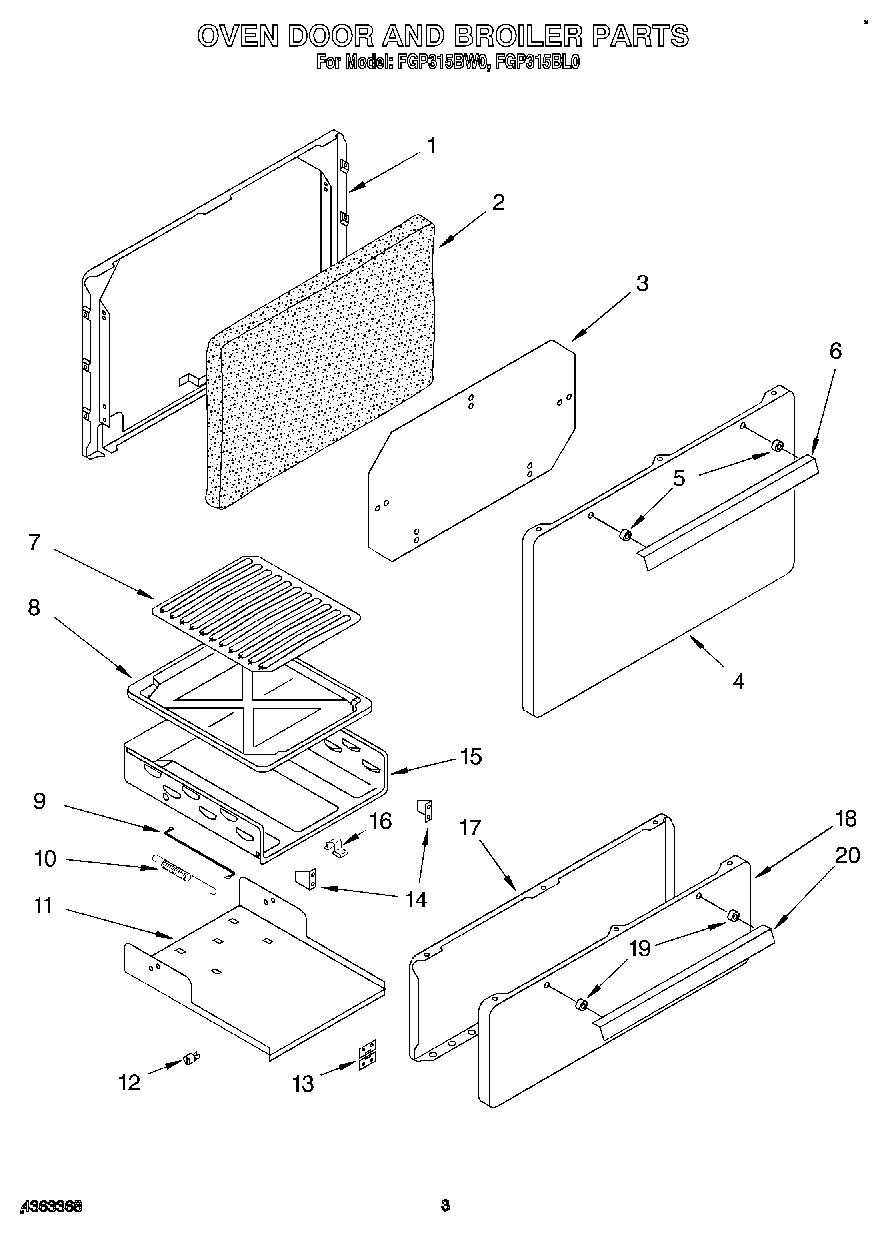

FGP315BL0 02 – OVEN DOOR AND BROILER

Products

Position	Product
1	Liner, Oven Door
2	Insulation
3	Screw
3	Baffle, Oven Door
4	Panel, Oven Door (Almond)
4	Panel, Oven Door (White)
7	Grid
8	4396923 Whirlpool Broil Pan Set Gray Porcelain
9	Rod, Push-Pull
10	Spring (2)
11	Carriage Broiler
12	W10709871 Whirlpool Drawer Glide
13	Hinge, Door
14	Bracket
15	Body, Brolier
16	Clip, Broiler
17	Liner, Broiler Door
18	Panel, Broiler (White)
18	Panel, Broiler (Screw)
18	WP308685 Whirlpool Microwave Screw
18	Panel, Broiler (Almond)
19	Spacer (4)
20	Screw
20	Handle, Door (2)
