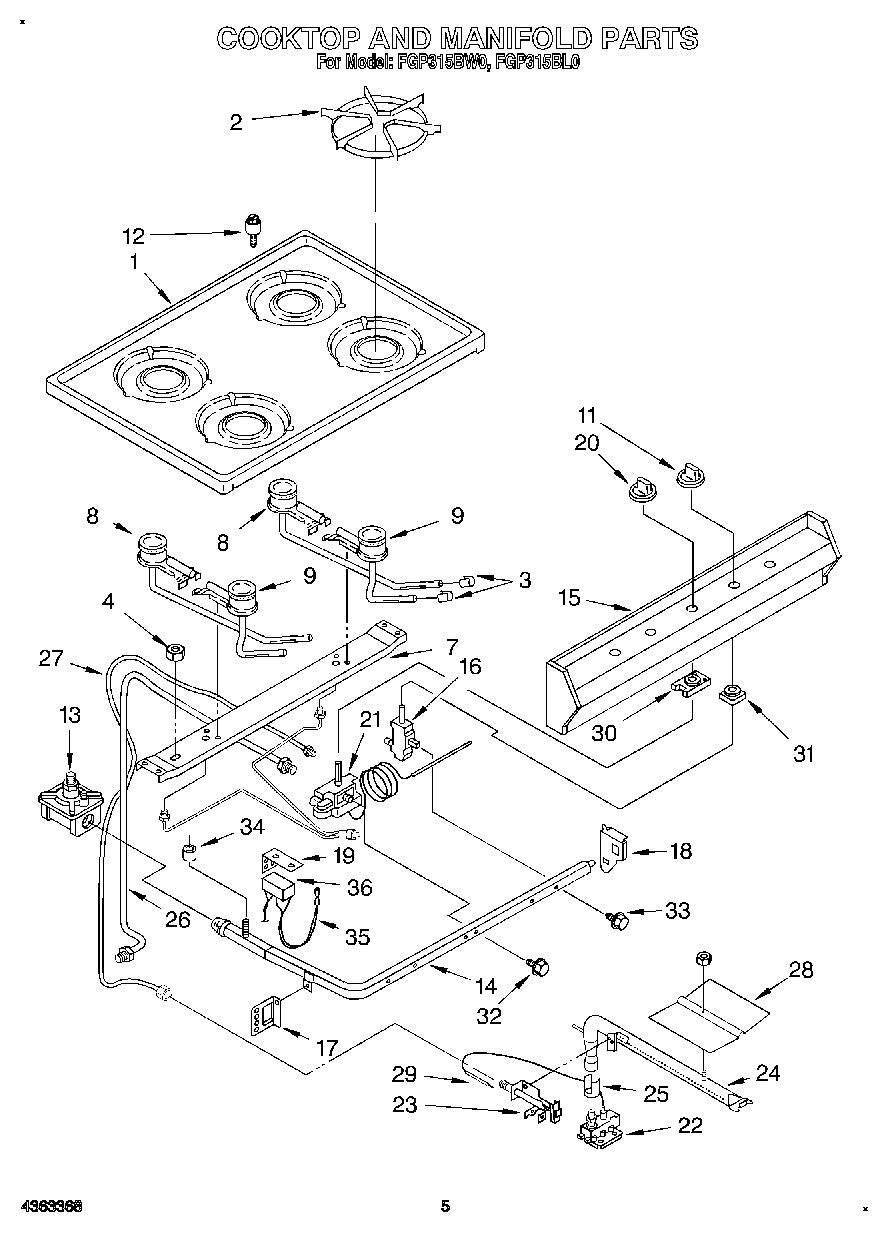

FGP315BW0 04 – COOKTOP AND MANIFOLD, LIT/OPTIONAL

Products

Position	Product
	Use & Care Guide
	Installation Instructions
1	Cooktop (Almond)
1	Cooktop (White)
2	Grate (4)
3	Shutter, Air (4)
4	Nut, Hex
7	Support, Burner
8	Burner, Rear (2)
8	Screw, 10-12 X 3/8 (2)
9	Burner, Front (2)
9	Screw
11	Knob, Gas Valve
12	Locator Stud (2)
12	Speed Clip (4)
13	Regulator, Pressure
14	WP308685 Whirlpool Microwave Screw
14	Manifold
15	Panel, Manifold
16	Valve, 90~ (4) (Includes Ill. No. 33)
17	Support, Manifold (L.H.)
18	Support, Manifold (R.H.)
19	Plate, Spark Module
20	Knob, Thermostat
21	Thermostat (Includes Ill. No. 30)
22	WP3387230 Whirlpool Screw
22	Valve, Safety
23	Pilot
23	Screw, Thermostat Mounting (2)
24	Burner, Oven
25	Shutter, Burner
26	Tubing 3/8“ (Thermostat To Safety Valve)
27	Tubing 3/16“ (Thermostat To Pilot)
28	Spreader, Flame
29	Ignitor, Oven
30	WP878009 Whirlpool Igniter Switch
31	WP4157180 Whirlpool Surface Burner Ignition Switch
32	Bolt, Thermostat Mounting (2)
33	Bolt, Valve Mounting
34	Spacer, Manifold
35	Ignitor (R.H.)
35	Ignitor (L.H.)
36	Harness, Wiring
36	Module, Spark
36	WPW10208653 Whirlpool Insulation
36	FOIL, ALUMINUM OVEN (18“ X 25 )
