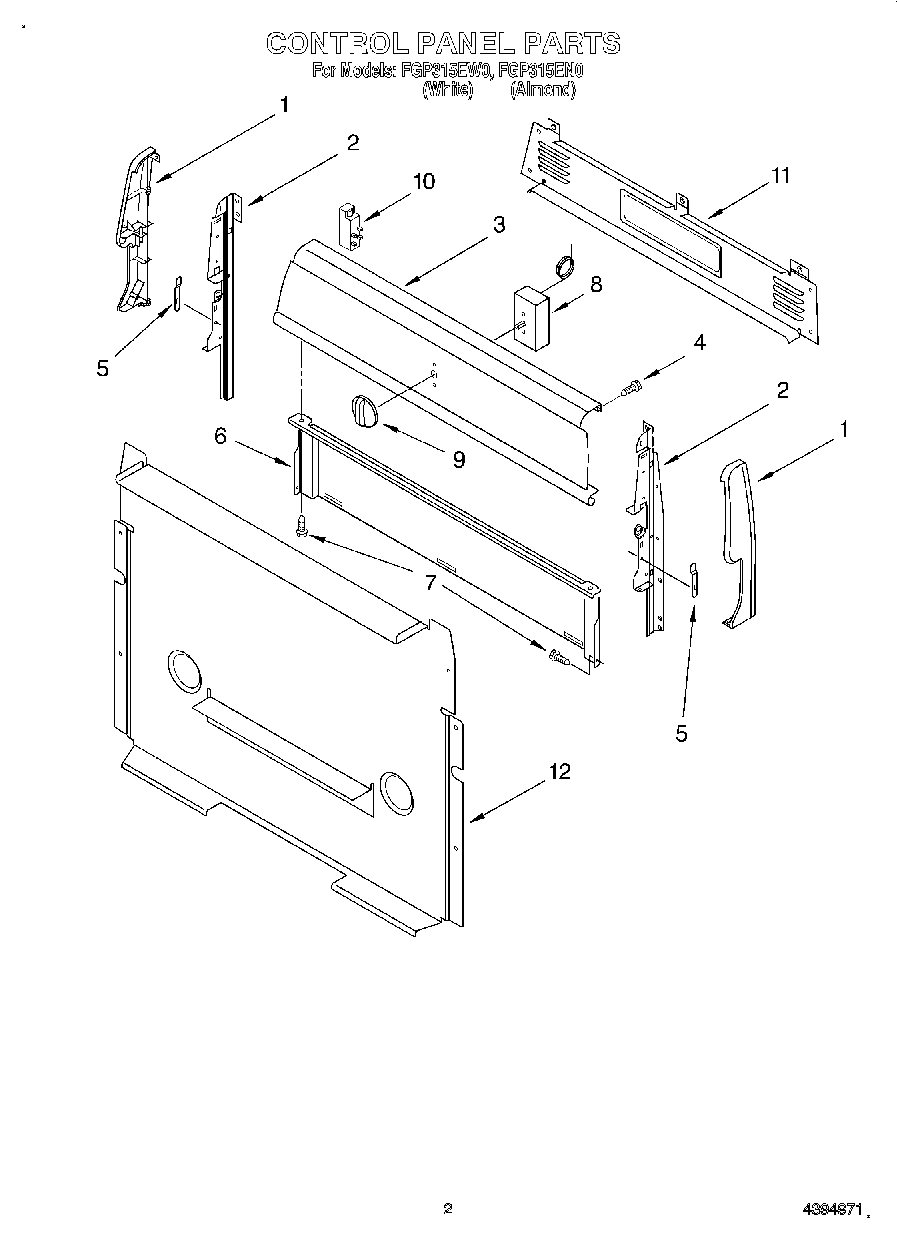

FGP315EN0 02 – CONTROL PANEL

FGP315EN0 02 – CONTROL PANEL

Written by

in

FGP315EN0 02 – CONTROL PANEL

Products

PositionProduct
1Endcap (Right Hand)
1Endcap (Left Hand)
2Support, Endcap (Left Hand)
2Support, Endcap (Right Hand)
3Panel, Backguard
53196200 Whirlpool Clip
6Shield, Heat
7Screw
8Switch, Infinite (Screw (8))
8Thermostat
9Knob, Thermostat
10Module, Spark
10WPY706189 Whirlpool Stove Screw
11Cover, Upper
12Cover, Lower
12SCREW
