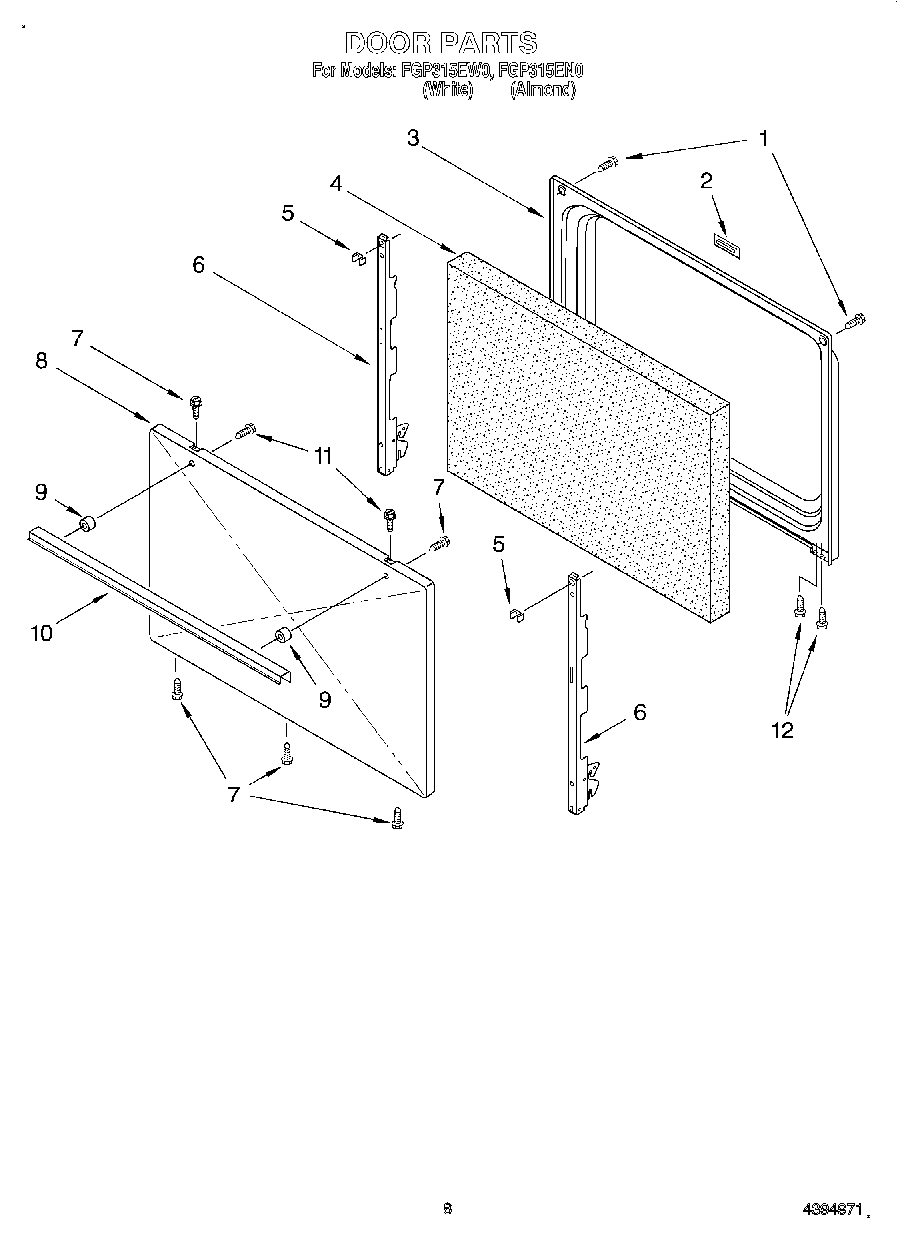

FGP315EN0 06 – DOOR, LIT/OPTIONAL

Products

Position	Product
	WPL LIT3196321
	WPL LIT3196192
	Literature (Installation, Instructions (Template))
	Harness, Igniter (Incl. Switches)
	WPL LIT3196295
	WPL 3195207
	Clip
1	Screw
2	Plug, Door
3	Liner, Door
4	Insulation, Door
5	Bracket, Saddle (2)
6	Hinge, Door (2)
7	Screw, Panel (2) (Almond)
7	3196558 Whirlpool Oven Screw
8	W10903447 Whirlpool Door Panel Assembly
8	Panel, Door (Almond)
9	Burner, Left Front
9	WP3196143 Whirlpool Spacer Assembly
10	WP3195704 Whirlpool Door Handle Assembly
11	WP3196163 Whirlpool Screw
12	Wire (12 Ga. 150 c Black)
12	Wire (14 Ga. 150 c Yellow)
12	18 Ga. 80~c Rating (Red)
12	Wire (14 Ga. 200 c Brown)
12	1
12	Leveler (Thinner) (2oz.)
12	8212471 Whirlpool Oven Paint
12	Grease
12	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
12	72113 Whirlpool Touch-Up Paint
12	LP Conversion Kit (Nat to LP)
12	Wire (14 Ga. 150 c Orange)
12	Wire (14 Ga. 150 c Green)
12	Wire (14 Ga. 150 c Brown)
12	Platinum (Uncut)
12	Enamal, Toast (1 Qt. Uncut)
12	Paint, Spray (13 Oz.) (Platinum)
12	Toast
12	Golden Harvest (Uncut)
12	Golden Harvest
12	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
12	Almond (Uncut)
12	W10491985 Whirlpool Screw
12	WP72107 Whirlpool Touchup
12	799344 Whirlpool Refrigerator Paint
12	72017 Whirlpool Appliance Touch-Up Paint White
12	350956 Whirlpool Spray Assembly
12	WPL 72112
12	350942 Whirlpool Spray Paint
12	511873 Whirlpool Refrigerator Paint
12	Wire (14 Ga. 150 c Blue)
12	242831 Whirlpool Oven Wire
12	Paint, Spray 13 Oz. (Avocado)
12	paint, spray 13 oz. (coffee)
12	Paint, Touch-Up 1/2 Oz. (Coffee)
12	72109 Whirlpool Dacor Avocado Touch-Up Paint
12	285006 Whirlpool Spray
12	Wire, 25“ Roll (White 14 GA.)
12	Wire, 25` Roll (Red 14 Ga.)
12	Wire, 25` Roll (Black 14 Ga.)
12	FOIL, ALUMINUM OVEN (18“ X 25 )
12	WPW10208653 Whirlpool Insulation
12	WPL 799832
12	350930 Whirlpool White Spray Paint
