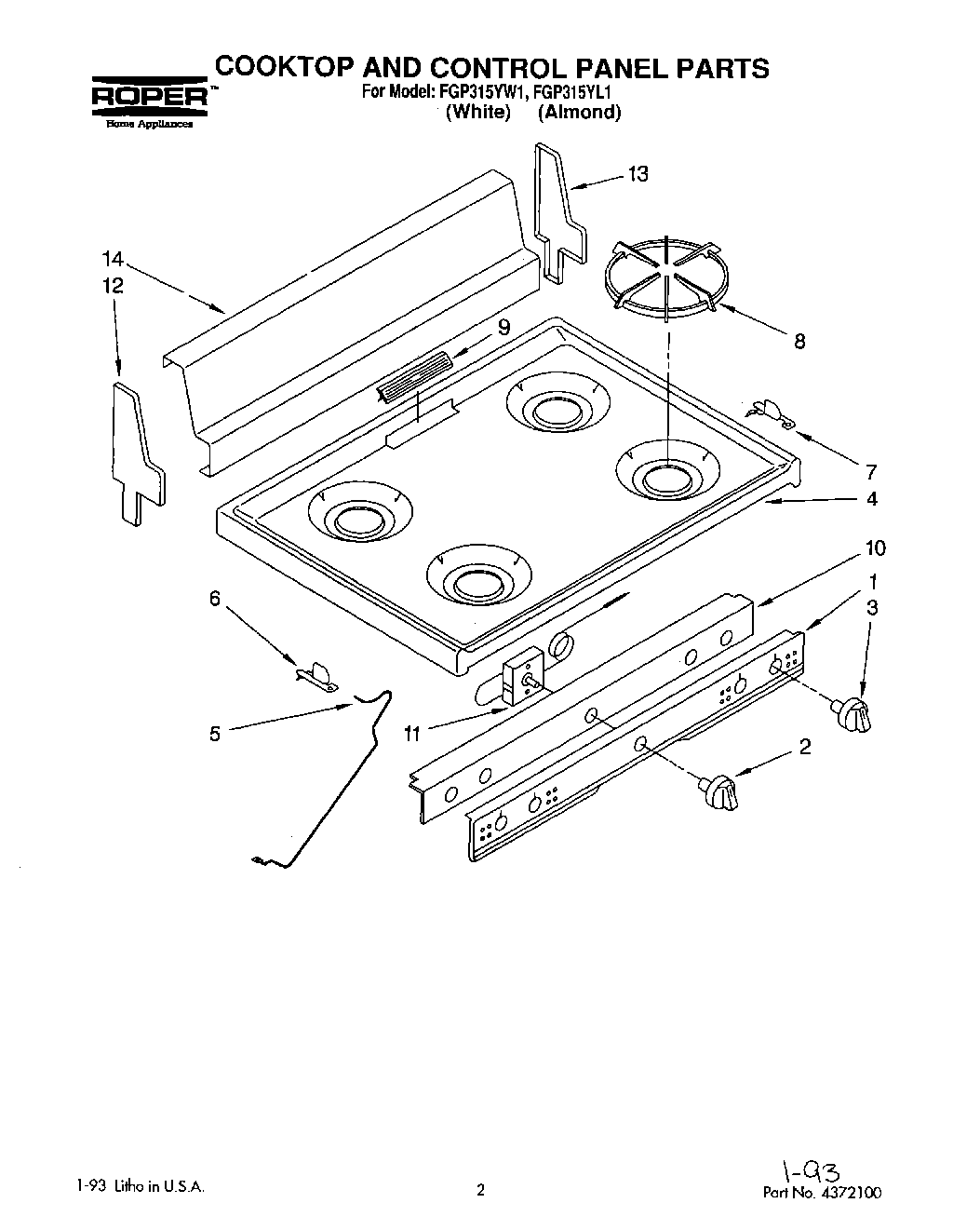

FGP315YL1 01 – SECTION

FGP315YL1 01 – SECTION

Written by

in

FGP315YL1 01 – SECTION

Products

Position	Product
	List, Repair Parts
	Guide, Use & Care
	Installation, Instructions
1	Panel, Control
2	Knob, Thermostat
3	Knob, Burner (4)
4	Top, Main (White)
4	Top, Main (Almond)
5	Rod, Support Top
6	Bracket, Hinge LH
7	Bracket, Hinge RH
8	Grate (4)
9	Cover, Vent
10	Cover, Manifold
11	Thermostat, Oven
12	Endcap LH
13	Endcap RH
14	Panel, Backguard
15	Cable, Anti-Tip
