FGP315YW0 02 – COOKTOP AND CONTROL PANEL, LIT/OPTI

FGP315YW0 02 – COOKTOP AND CONTROL PANEL, LIT/OPTI

Written by

in

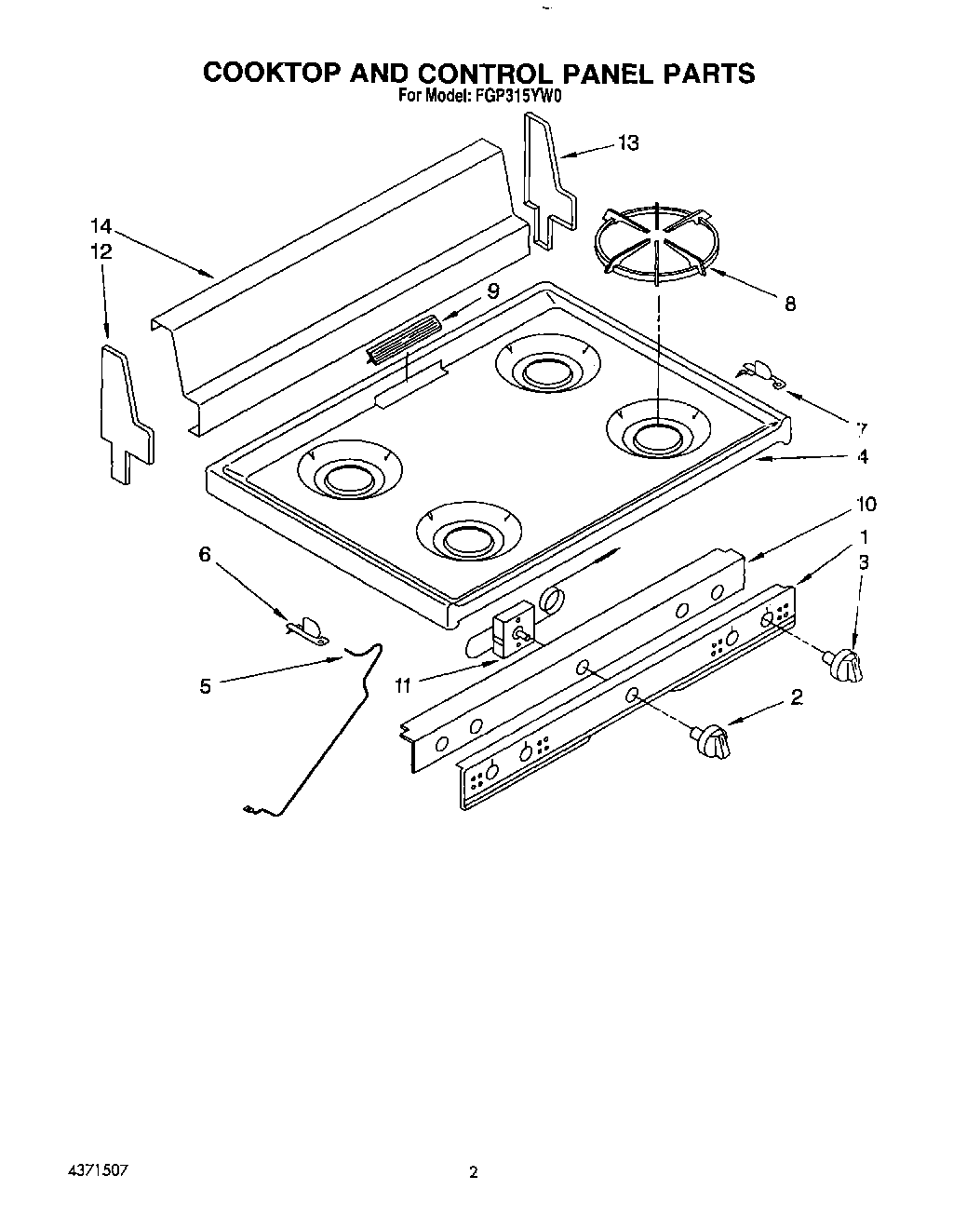

FGP315YW0 02 – COOKTOP AND CONTROL PANEL, LIT/OPTI

Products

PositionProduct
Guide, Use & Care
List, Repair Parts
Installation, Instructions
1Panel, Control
2Knob, Thermostat
3Knob, Burner (4)
4Top, Main (Almond)
4Top, Main (White)
5Rod, Support Top
6Bracket, Hinge LH
7Bracket, Hinge RH
8Grate, Burner (4)
9Cover, Vent
10Cover, Manifold
11Thermostat, Oven
12Endcap LH
13Endcap RH
14Panel, Backguard
