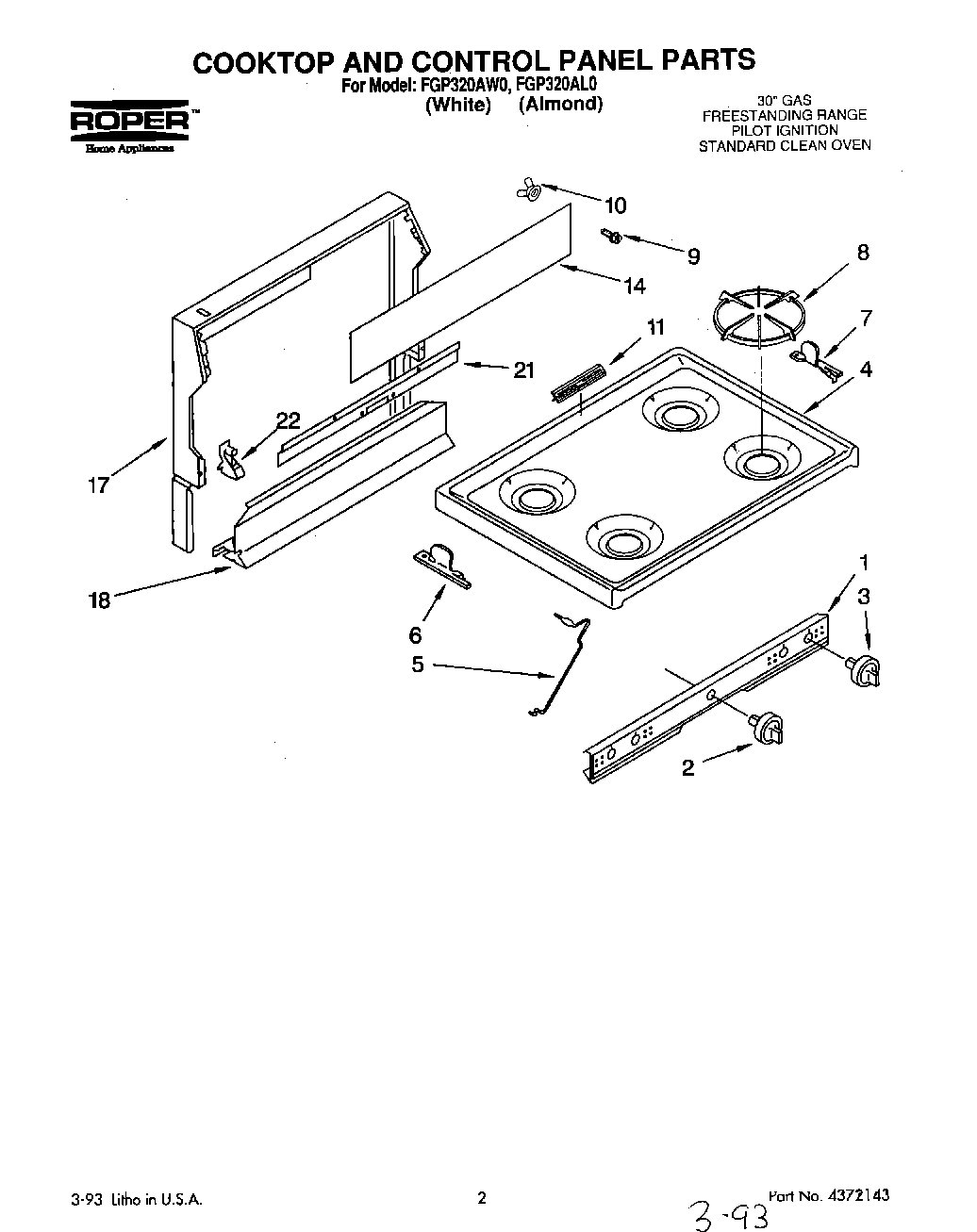

FGP320AL0 01 – COOKTOP AND CONTROL PANEL, LIT/OPTIONAL

Products

PositionProduct
List, Repair Parts
Installation, Instructions
Guide, Use & Care
1Panel, Control
2Knob, Thermostat
3Knob, Burner (4)
4Top, Main (White)
4Top, Main (Almond)
5Rod, Support Top
6Bracket, Hinge LH
7Bracket, Hinge RH
8Grate, Burner (4)
9Bolt, Backguard (2)
10Wingnut (2)
11Cover, Vent
14Panel, Splash
17Trim, Wrapper
18Trim, Splash Panel (White)
18Trim, Splash Panel (Almond)
21Bracket, Backguard
22Brace, Backguard
