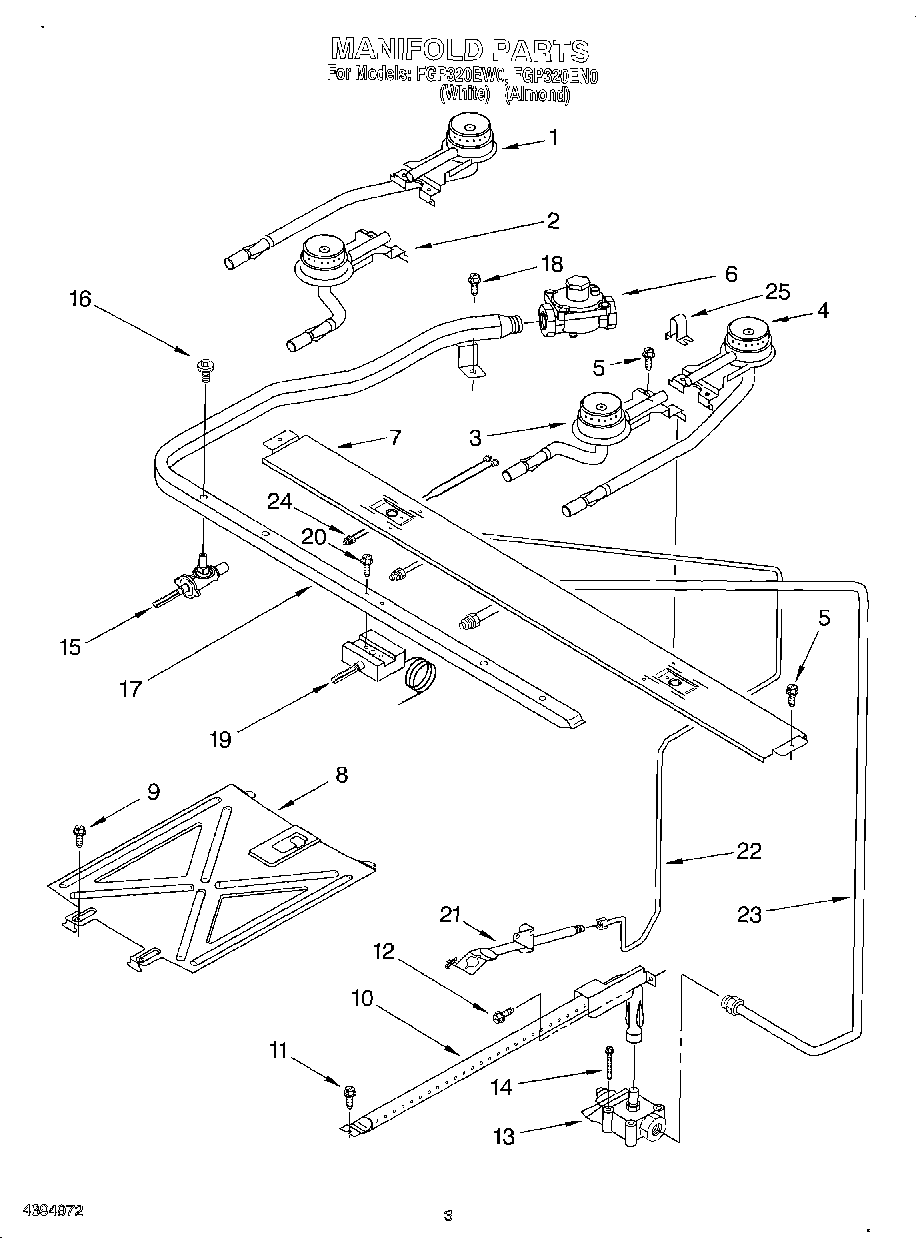

| 1 | Burner (Left Rear) |
| 2 | Burner, Left Front |
| 3 | Burner (Right Front) |
| 4 | Burner (Right Rear) |
| 5 | WP3196175 Whirlpool Screw |
| 6 | Regulator |
| 7 | Support, Burner |
| 8 | Spreader, Flame |
| 10 | Burner, Oven |
| 11 | SCREW |
| 12 | 3196265 Whirlpool Oven Screw |
| 13 | Valve, Oven |
| 14 | Screw |
| 15 | Valve, Burner (4) |
| 16 | WP3186217 Whirlpool Screw |
| 17 | Pipe, Manifold |
| 19 | Thermostat |
| 20 | Screw |
| 21 | Pilot, Oven |
| 22 | Tubing (T-Stat to Oven Pilot) |
| 23 | Tubing (T-Stat to Oven Valve) |
| 24 | Tubing, Pilot |
| 25 | Cover, Pilot (2) |
