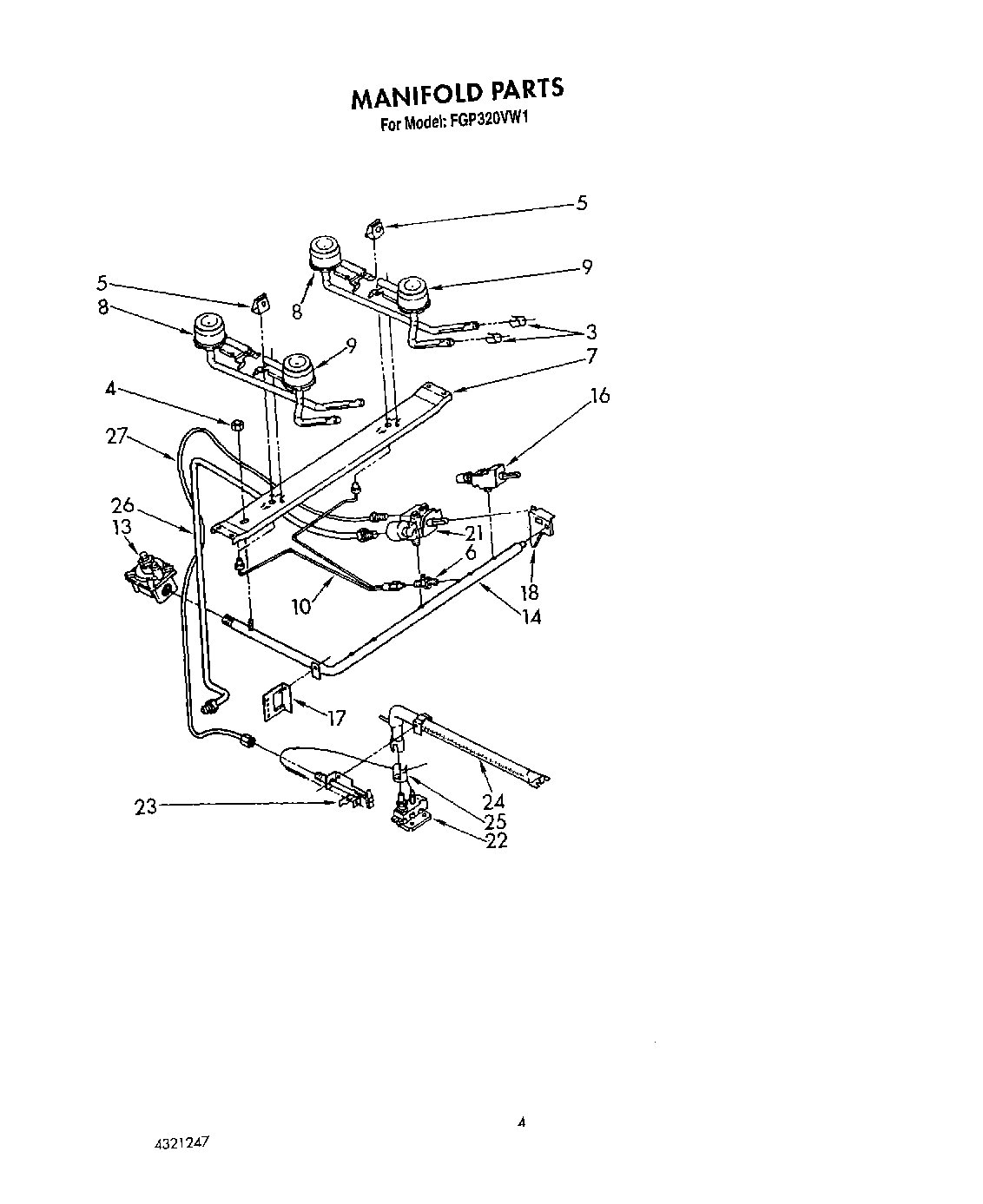

FGP320VL1 04 – MANIFOLD, LIT/OPTIONAL

Products

Position	Product
	List, Repair Parts
	Instructions, Installation
	Guide, Use & Care
3	Shutter, Air (4)
4	Nut, Hex
5	Cover, Pilot (2)
6	Filter, Pilot
7	Support, Burner
8	Burner, Rear (2)
9	Burner, Front (2)
9	Screw, 10-12 X 3/8 (2)
10	Tubing, Pilot (Incl. No. 6)
13	Regulator, Pressure
14	Manifold
16	Valve, 90~ (4) (Includes Ill. No. 33)
17	Support, Manifold (L.H.)
18	Support, Manifold (R.H.)
18	WP308685 Whirlpool Microwave Screw
21	Thermostat (Includes Ill. No. 32)
22	WP3387230 Whirlpool Screw
22	Valve, Safety
23	Pilot
23	Screw, 10-24 X 1/4 (1)
24	Burner, Oven
25	Shutter, Burner
26	Tubing 3/8“ (Thermostat To Safety Valve)
27	Tubing 3/16“ (Thermostat To Pilot)
