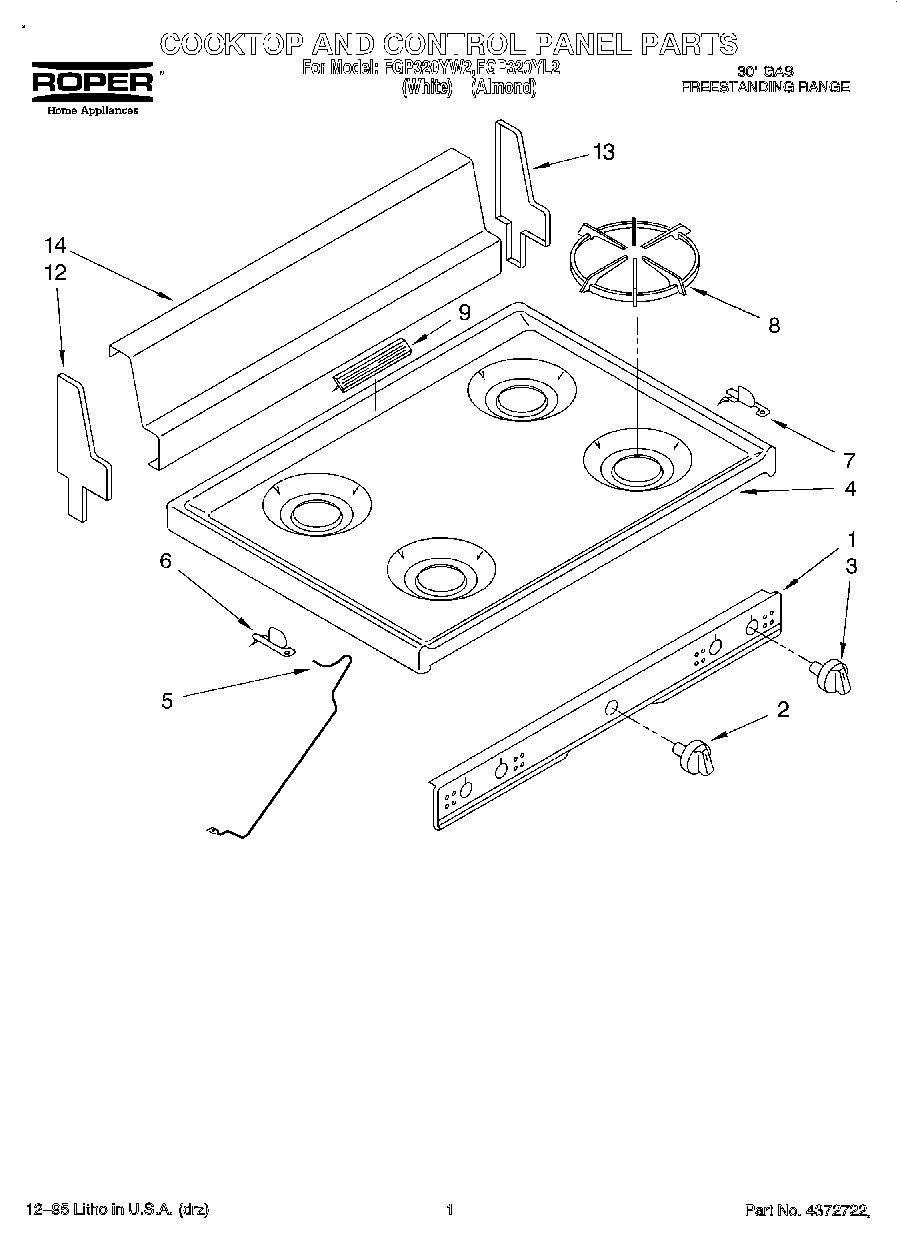

FGP320YL2 01 – COOKTOP AND CONTROL PANEL, LITERATURE

FGP320YL2 01 – COOKTOP AND CONTROL PANEL, LITERATURE

Written by

in

FGP320YL2 01 – COOKTOP AND CONTROL PANEL, LITERATURE

Products

PositionProduct
Installation, Instructions
Guide, Use & Care
1Panel, Control
2Knob, Thermostat
3Knob, Burner (4)
4Top, Main (White)
4Top, Main (Almond)
5Rod, Support Top
6Bracket, Hinge LH
7Bracket, Hinge RH
8Grate (4)
9Cover, Vent
12Endcap LH
13Endcap RH
14Panel, Backguard
