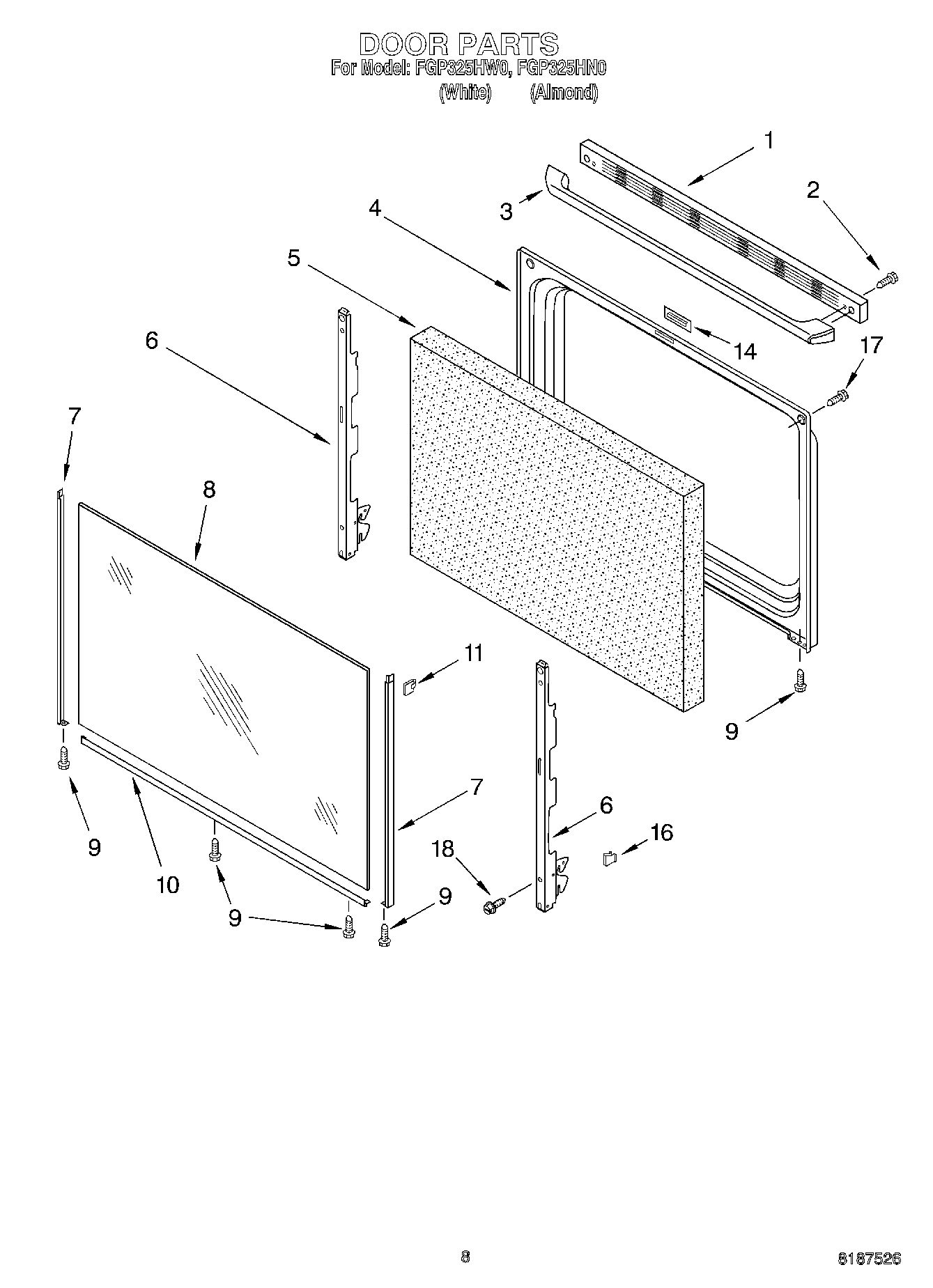

FGP325HN0 06 – DOOR

FGP325HN0 06 – DOOR

Written by

in

FGP325HN0 06 – DOOR

Products

PositionProduct
1Trim, Top (Black)
2WP3196164 Whirlpool Screw
3WPW10202217 Whirlpool Door Handle
4Liner, Door
5WPW10278991 Whirlpool Insulation
6Hinge, Door (2)
8Glass, Door (Black)
9W10491985 Whirlpool Screw
108184858 Whirlpool Door Trim
11Clip, Glass (4)
14Plug, Door
16WP3196925 Whirlpool Clip Assembly
17WP179051 Whirlpool Screw
18Wire (14 Ga. 150 c Yellow)
18Wire (14 Ga. 150 c Orange)
1818 Ga. 80~c Rating (Red)
18Wire (12 Ga. 150 c Black)
18Wire (14 Ga. 200 c Brown)
181
188212471 Whirlpool Oven Paint
18Grease
18WPL 3196918
183196896 Whirlpool Clip
18WPL 8053527
188273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
18Wire (14 Ga. 150 c Green)
18Wire (14 Ga. 150 c Brown)
18WPW10208653 Whirlpool Insulation
18WPL 799832
18511873 Whirlpool Refrigerator Paint
18350942 Whirlpool Spray Paint
18Almond (Uncut)
18WP72107 Whirlpool Touchup
18799344 Whirlpool Refrigerator Paint
1872017 Whirlpool Appliance Touch-Up Paint White
18350956 Whirlpool Spray Assembly
18FOIL, ALUMINUM OVEN (18“ X 25 )
18WP3196175 Whirlpool Screw
18Wire (14 Ga. 150 c Blue)
18242831 Whirlpool Oven Wire
1816515 Whirlpool Clip
183400964 Whirlpool Oven Clip
18814381 Whirlpool Pin
18285006 Whirlpool Spray
18Wire, 25“ Roll (White 14 GA.)
18Wire, 25` Roll (Red 14 Ga.)
18Wire, 25` Roll (Black 14 Ga.)
18350930 Whirlpool White Spray Paint
