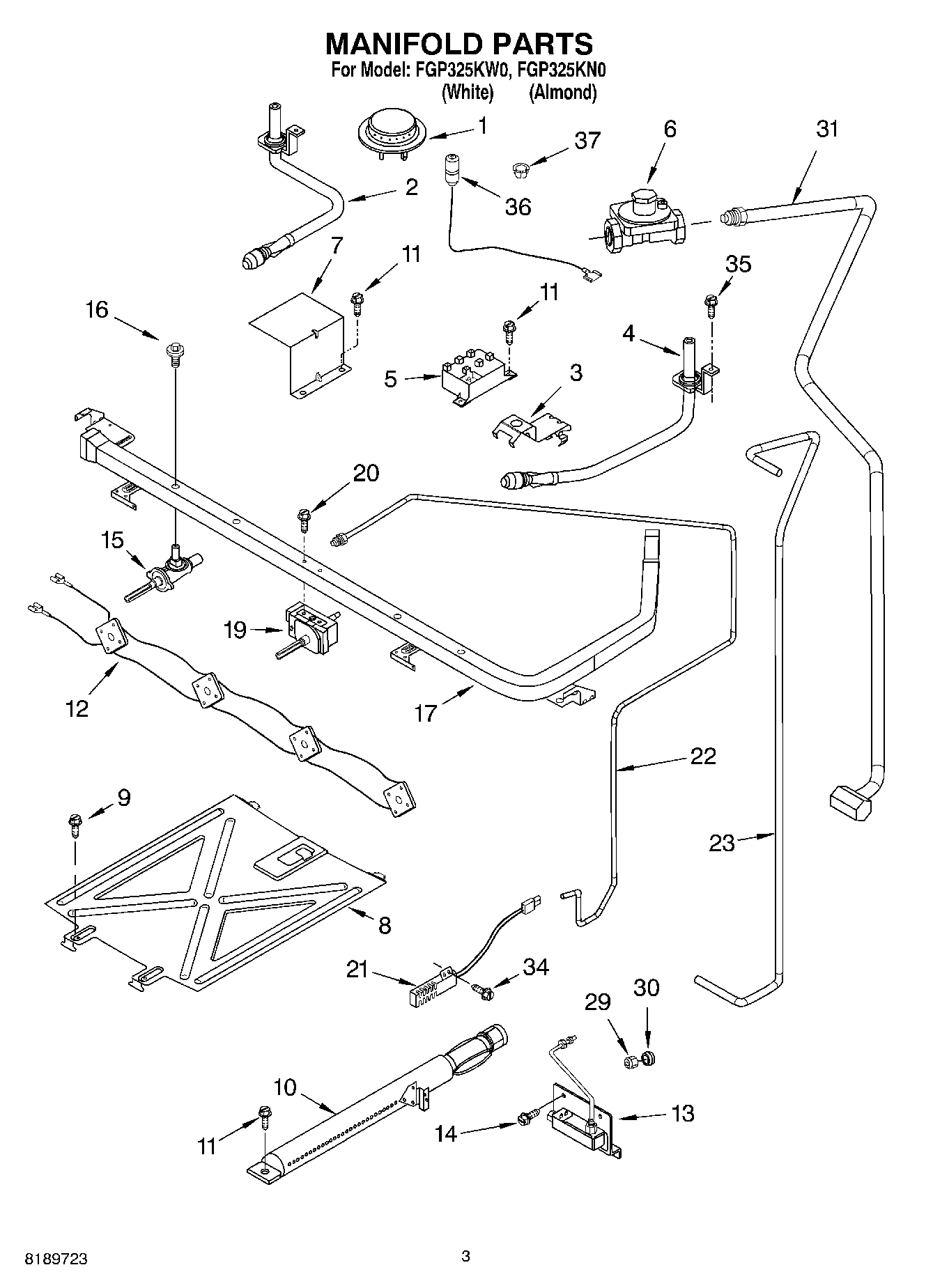

FGP325KN0 03 – MANIFOLD

Products

PositionProduct
1WP98004410 Whirlpool Top Burner
2WP6610243 Whirlpool Venturi
3Brkt., Venturi (4)
4WP6610244 Whirlpool Venturi Assembly
5W11590249 Whirlpool Spark Module
6Regulator
798007192 Whirlpool Cover Model
8Spreader, Flame
9SCREW
10Burner, Oven
12Harness, Switch
13Valve, Oven
14W10837731 Whirlpool Screw Assembly
15Valve, Burner (4) (9,500 BTU)
16WPW10277003 Whirlpool Screw
17Pipe, Manifold
18Sleeve, 3/8“
19WPW10641988 Whirlpool Oven Thermostat
20WP3400882 Whirlpool Screw
21W10918546 Whirlpool Oven Range Igniter
23Tubing (Regltr to Oven Valve)
29Fitting, Tube
30Fitting, Female
31Tubing, Inlet
34W11676351 Whirlpool Screw
36WPW10209656 Whirlpool Surface Ignitor
37WPW10278150 Whirlpool Clip Assembly
38W10837674 Whirlpool Screw
38LP Spud Kit (For Use With LP)
