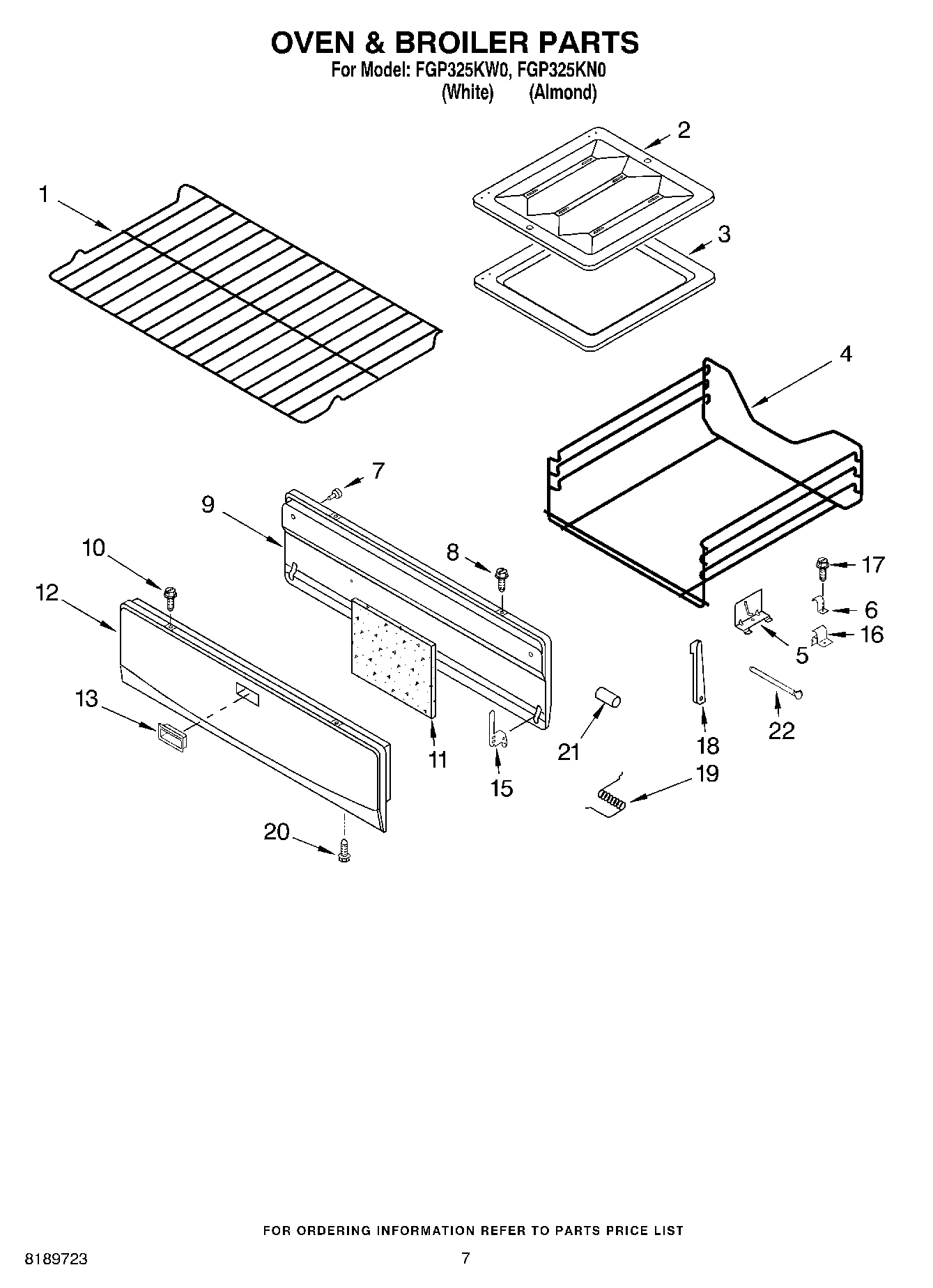

FGP325KN0 05 – OVEN AND BROILERadmin2025-04-26T08:41:00+00:00FGP325KN0 05 – OVEN AND BROILER
Products
| Position | Product |
|---|
| 1 | Rack, Oven (2) |
| 2 | WP98003480 Whirlpool Grill Pan |
| 3 | WP98016005 Whirlpool Broiler Pan |
| 4 | Rack, Broiler |
| 5 | Bracket, Rack |
| 6 | 98004715 Whirlpool Drawer Guide |
| 7 | BUMPER, DOOR |
| 8 | 3196166 Whirlpool Screw |
| 8 | Screw (Almond) |
| 9 | Liner, Door |
| 11 | Insulation, Door |
| 12 | Panel, Door (Almond) |
| 12 | Panel, Door (White) |
| 13 | WP3405184 Whirlpool White Door Handle |
| 13 | Handle, Brlr Door (Almond) |
| 15 | W11499074 Whirlpool Hinge Bracket |
| 16 | 98008341 Whirlpool Clip |
| 17 | W10837731 Whirlpool Screw Assembly |
| 18 | Support, Hinge |
| 19 | Spring, Broiler (Right Hand) |
| 19 | Spring, Broiler (Left Hand) |
| 20 | WP3400805 Whirlpool Screw Assembly |
| 22 | 98004053 Whirlpool Oven Hinge Pin |
