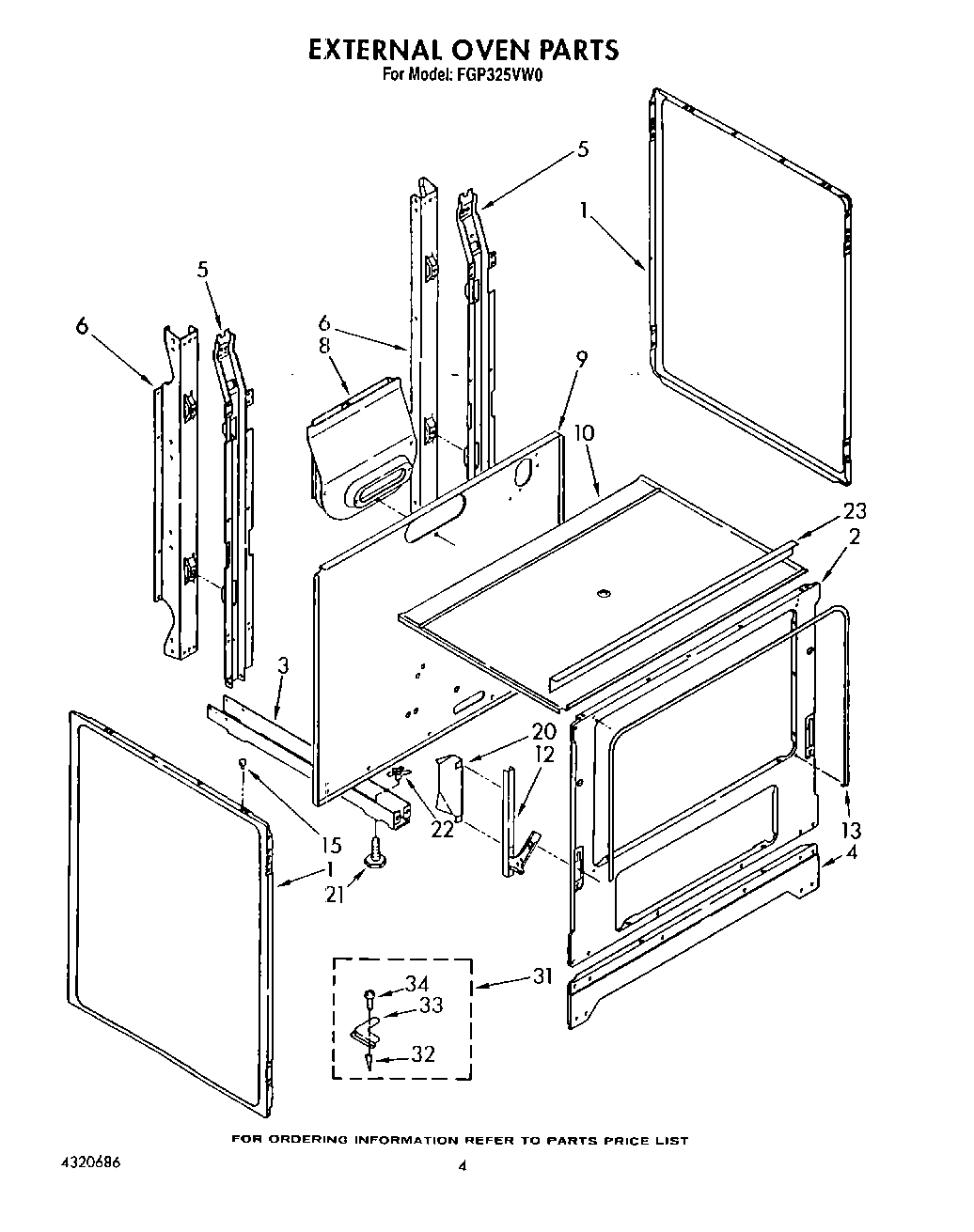

FGP325VL0 03 – EXTERNAL OVEN

Products

Position	Product
1	Panel, Side (2) (White)
1	Panel, Side (2) (Almond)
2	Frame, Front
3	Rail, Base (2)
4	Base, Front
4	Screw, 10-12 X 1/2 (4)
5	Support, Main (2)
5	Screw, 10-32 X 1/2 (1)
6	Support, Rear (2)
8	SCREW
8	Flue, Box
9	Panel, Rear
10	WP308685 Whirlpool Microwave Screw
10	Burner Box
12	Hinge, Door (2)
12	Screw, 10-24 X 3/8 (2)
13	Seal, Door (2)
15	Locator stud (2)
20	Shield, Insulation
21	Leg, Leveler (4)
22	Nut (4)
23	Extension Burner Box
31	Anti Tip Kit
32	Anchor (2)
33	Bracket
34	Screw
