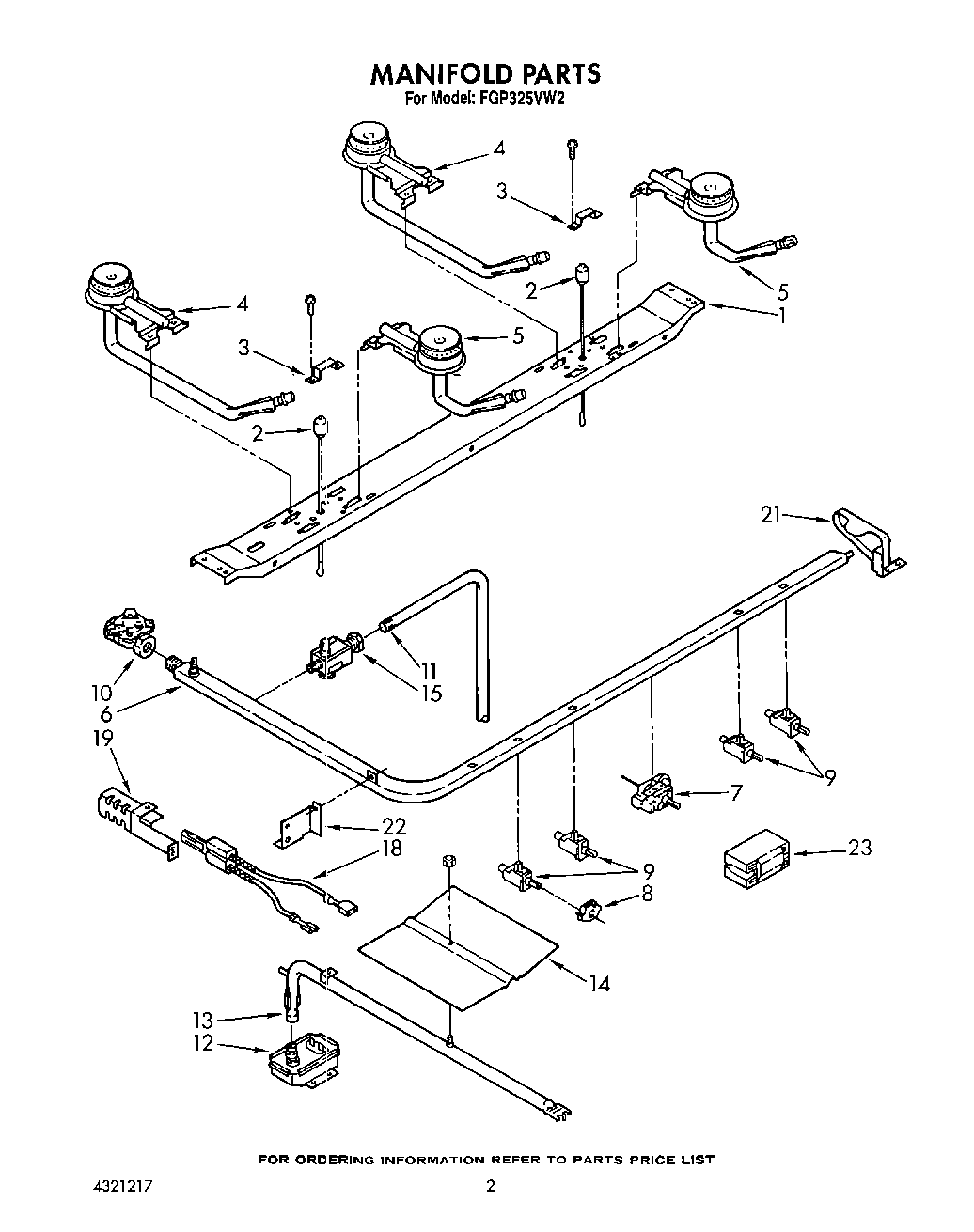

FGP325VW2 02 – MANIFOLD

Products

Position	Product
1	Support, Burner
2	Ignitor (R.H.)
2	Ignitor (L.H.)
3	Screw, 10-12 X 3/8 (2)
3	Screw
4	Burner, Rear (2)
5	Burner, Front (2)
6	Manifold
7	Thermostat
8	WP4157180 Whirlpool Surface Burner Ignition Switch
9	Screw, Mounting
9	Valve, 90~ (4) (Includes Ill. No. 33)
10	Regulator, Pressure
11	WP74011278 Whirlpool Light
12	WP308685 Whirlpool Microwave Screw
12	Valve, Safety
13	Burner, Oven
14	Spreader, Flame
15	Valve, Shut Off
18	Pilot
19	Bracket, Ignitor
21	Support, Manifold (R.H.)
22	Support, Manifold (L.H.)
23	Module, Spark
23	Plate, Spark Module
