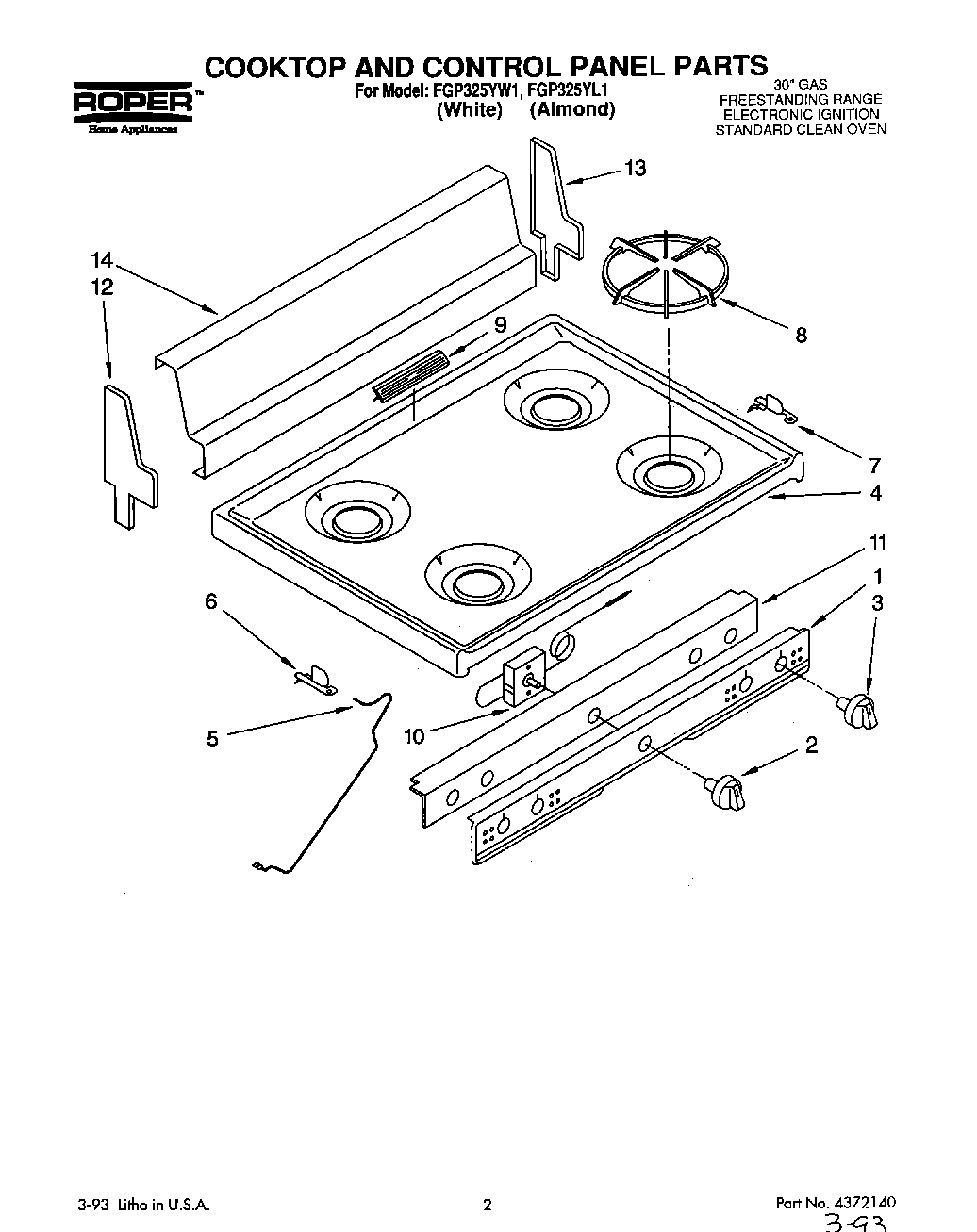

FGP325YL1 01 – COOKTOP AND CONTROL PANEL, LIT/OPTIONAL

Products

PositionProduct
List, Repair Parts
Guide, Use & Care
Installation, Instructions
1Panel, Control
2Knob, Thermostat
3Knob, Burner (4)
4Top, Main (White)
4Top, Main (Almond)
5Rod, Support Top
6Bracket, Hinge LH
7Bracket, Hinge RH
8Grate (4)
9Cover, Vent
10Thermostat, Oven
11Cover, Manifold
12Endcap LH
13Endcap RH
14Panel, Backguard
