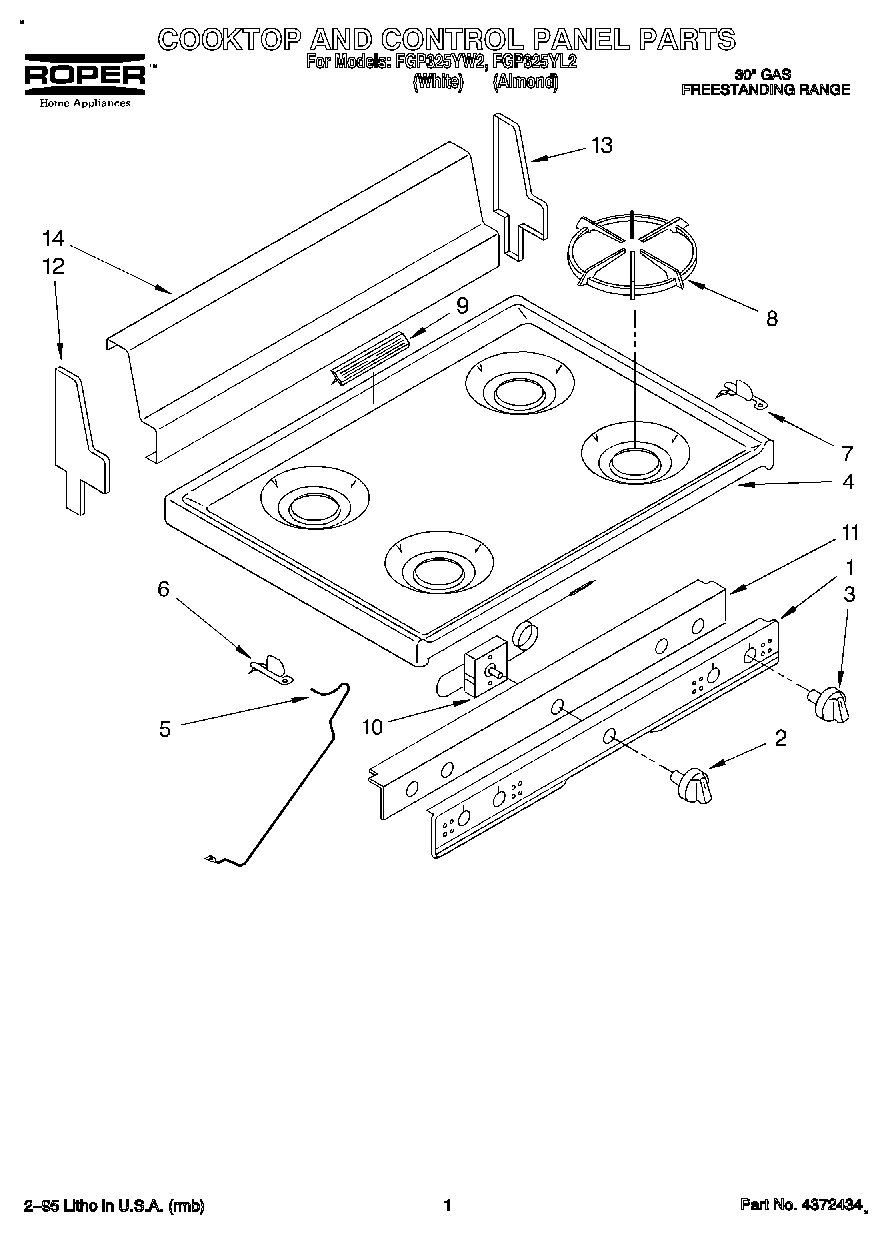

FGP325YL2 01 – COOKTOP AND CONTROL PANEL, LITERATURE

FGP325YL2 01 – COOKTOP AND CONTROL PANEL, LITERATURE

Written by

in

FGP325YL2 01 – COOKTOP AND CONTROL PANEL, LITERATURE

Products

PositionProduct
Guide, Use & Care
Instructions, Installation
1Panel, Control
2Knob, Thermostat
3Knob, Burner (4)
4Top, Main (White)
4Top, Main (Almond)
5Rod, Support
6Bracket, Hinge LH
7Bracket, Hinge RH
8Grate (4)
9Cover, Vent
10Thermostat, Oven
11Cover, Manifold
12Endcap LH
13Endcap RH
14Panel, Backguard
