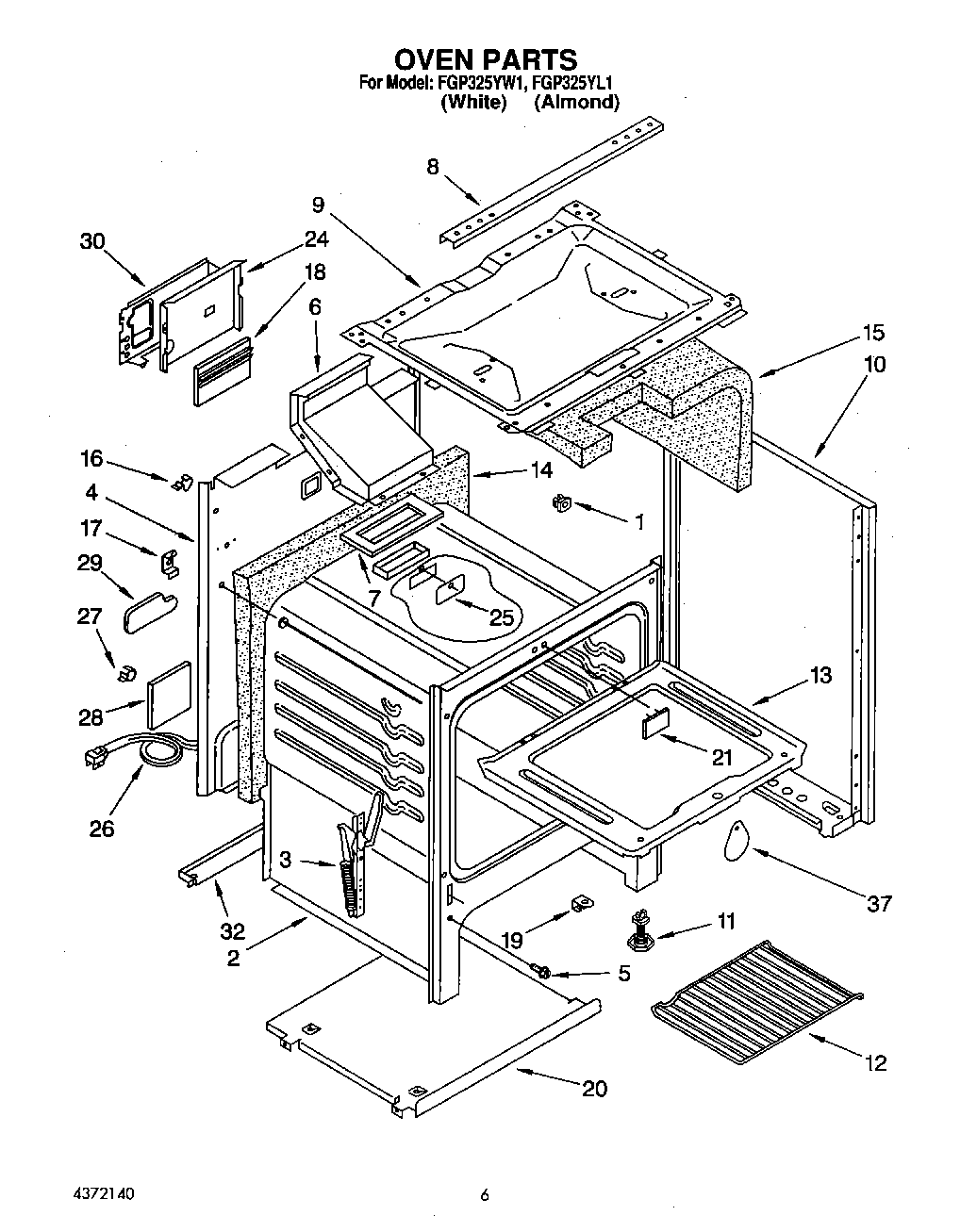

FGP325YW1 04 – OVEN

Products

Position	Product
1	Spacer, Body (8)
2	Liner, Oven (Not a Serviceable Part)
3	Hinge, Oven Door
4	Back, Main
5	Screw, Oven Bottom
6	Flue
7	Gasket, Flue
8	Support, Burner
9	Burner, Box
10	Panel, Side (Almond RH)
10	Panel, Side (Almond LH)
10	Panel, Side (White RH)
10	Panel, Side (White LH)
11	Screw, Leveler (4)
12	Rack, Oven (2)
13	Bottom, Oven
14	Insulation, Back
15	WPW10208653 Whirlpool Insulation
16	Clip, Thermo Bulb
17	Fastener, U Type
18	Cover, Flue
19	Support, Oven Bottom
20	Base, Broiler
21	Cover, Front
24	Shield, Flue
25	Plate, Cover
26	Cord, Power
27	Fastener, Cord
28	Cover, Power Cord
29	Cover, Rear Wall
30	Shield, Rear Wall
32	Bracket, Anti-Tip
37	Cover, Oven Light
