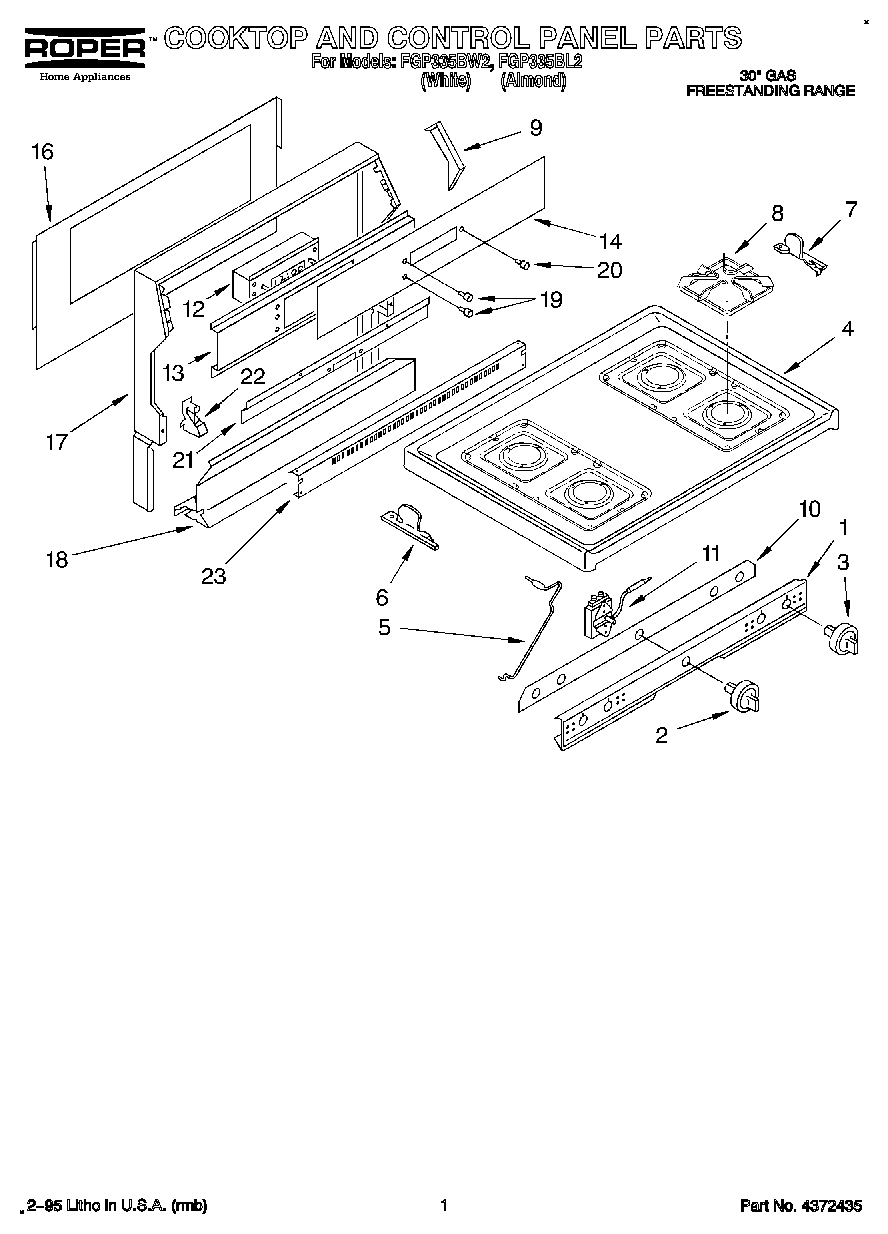

FGP335BW2 01 – COOKTOP AND CONTROL PANEL, LITERATURE

FGP335BW2 01 – COOKTOP AND CONTROL PANEL, LITERATURE

Written by

in

FGP335BW2 01 – COOKTOP AND CONTROL PANEL, LITERATURE

Products

PositionProduct
Guide, Use & Care
Installation, Instructions
1Panel, Control
2Knob, Thermostat
3Knob, Burner (4)
4Top, Main (Almond)
4Top, Main (White)
5Rod, Support Top
6Bracket, Hinge LH
7Bracket, Hinge RH
8Grate (4)
9Cap, End (L.H.)
9Cap, End (R.H.)
10Cover, Manifold
11Thermostat, Oven
12Clock
13Bracket, Timer
14Panel, Control
16Shield, Rear Wall
17Trim, Wrapper
18Trim, Splasher (White)
19Button, Hour/Minute (2)
20Button, Clock/Timer
21Retainer, Timer
22Brace, Backguard
23Trim, Vent
