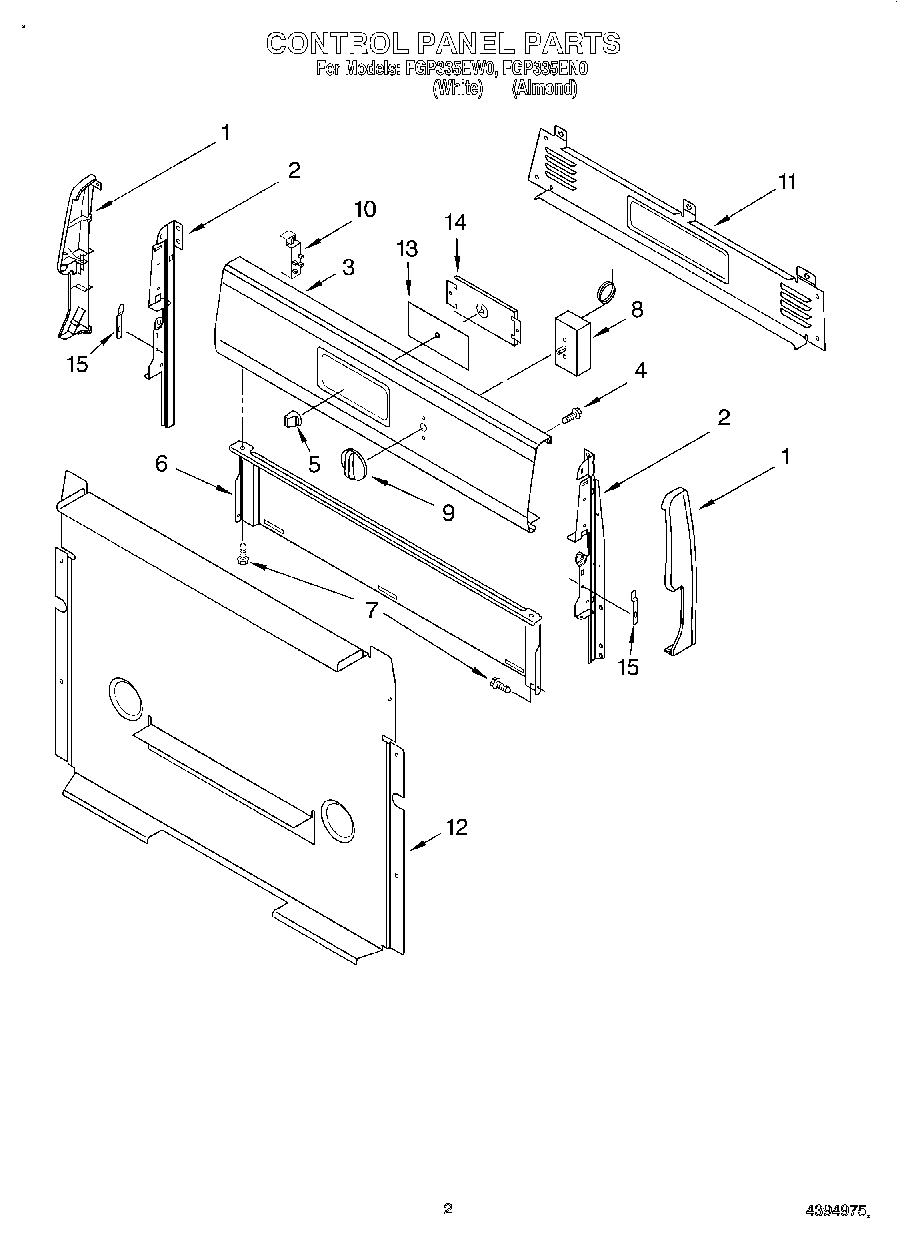

FGP335EN0 02 – CONTROL PANEL

Products

Position	Product
1	Endcap (Left Hand)
1	Endcap (Right Hand)
2	Support, Endcap (Left Hand)
2	Support, Endcap (Right Hand)
3	Panel, Backguard (Black)
5	WP3169181 Whirlpool Knob
6	Shield, Heat
7	Screw
8	Thermostat
8	Switch, Infinite (Screw (8))
9	Knob, Thermostat
10	WPY706189 Whirlpool Stove Screw
10	Module, Spark
11	Cover, Upper
12	Cover, Lower
13	Glass, Timer
14	Timer, Clock
14	SCREW
15	3196200 Whirlpool Clip
