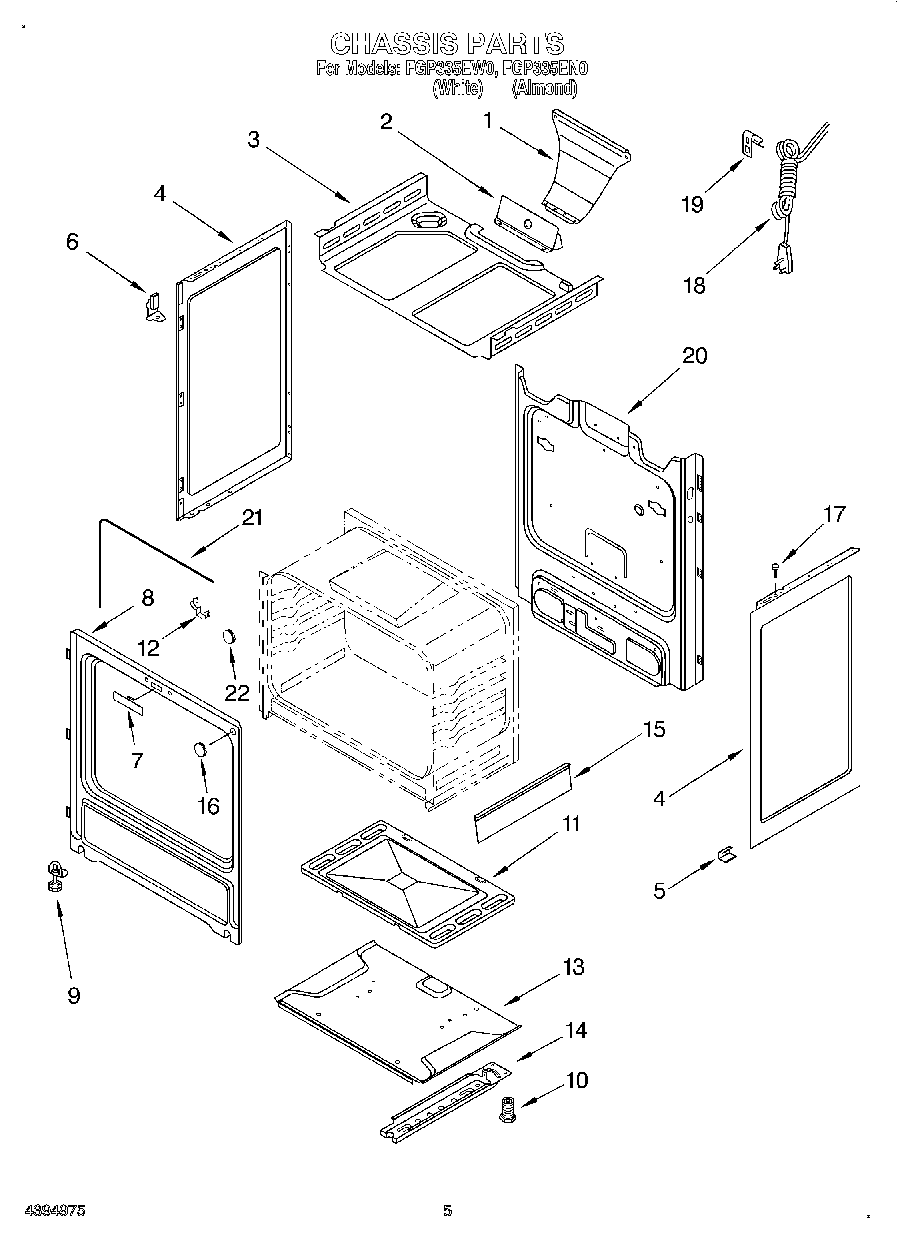

FGP335EN0 04 – CHASSIS

Products

Position	Product
1	W11457094 Whirlpool Oven Flue
2	WP8272747 Whirlpool Heat Shield
3	Burner Box
4	Panel, Side (2) (Almond)
4	Screw
4	W11169708 Whirlpool Screw
4	Panel, Side (2) (White)
5	Clip, Panel (6)
6	Brkt, Manifold Mtg (Left Hand)
6	Brkt, Manifold Mtg (Right Hand)
7	Plug, Frame
8	Frame, Front
8	SCREW
9	WP3196037 Whirlpool Leveling Foot
10	WPW10058460 Whirlpool Appliance Levelling Leg
11	WP3195097 Whirlpool Oven Bottom
11	Screw
12	98005642 Whirlpool Clip
13	Baffle, Base
14	WP3196557 Whirlpool Screw
14	WPW10306546 Whirlpool Base Rail
15	Shield, Lower
16	Plug Button
17	238614 Whirlpool Bumper Hinge
18	WP9757891 Whirlpool Power Cord
19	W11244557 Whirlpool Screw
19	549193 Whirlpool Refrigerator Power Clamp
20	Back, Main
21	W11542153 Whirlpool Door Gasket
22	WPW10208653 Whirlpool Insulation
22	Button, Plug (25/32“ (2))
22	W11688737 Whirlpool Insulation
22	TIE,WIRE
