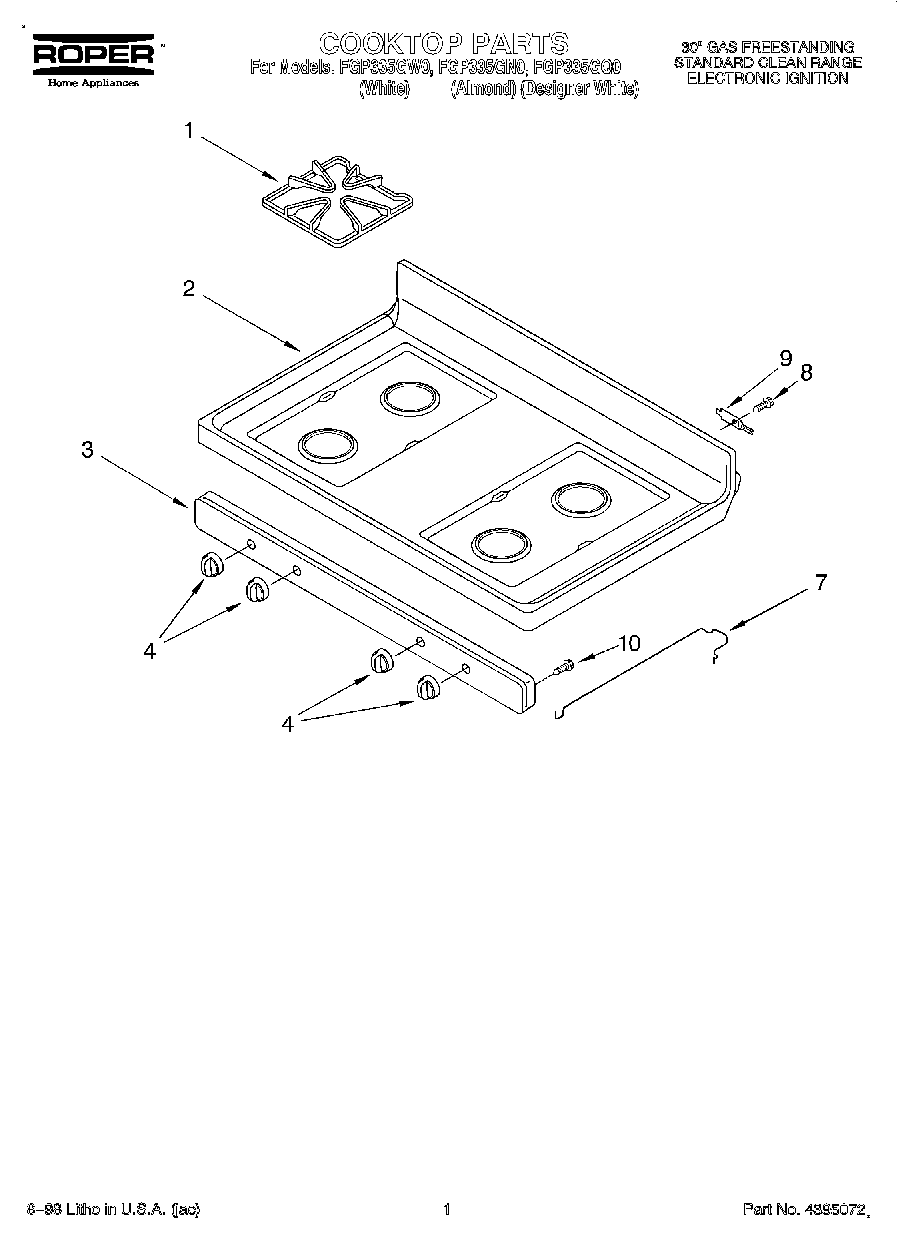

| 1 | Grate, Burner (4) (Black) |
| 2 | Cooktop (Almond) |
| 2 | Cooktop (White) |
| 3 | Panel, Manifold (White) |
| 3 | Panel, Manifold |
| 4 | Knob, Burner (4) |
| 4 | Knob, Burner (4) (White) |
| 7 | WP3195812 Whirlpool Cooktop Rod |
| 8 | SCREW |
| 9 | WP3195060 Whirlpool Cooktop Pin |
| 10 | WP3196557 Whirlpool Screw |
