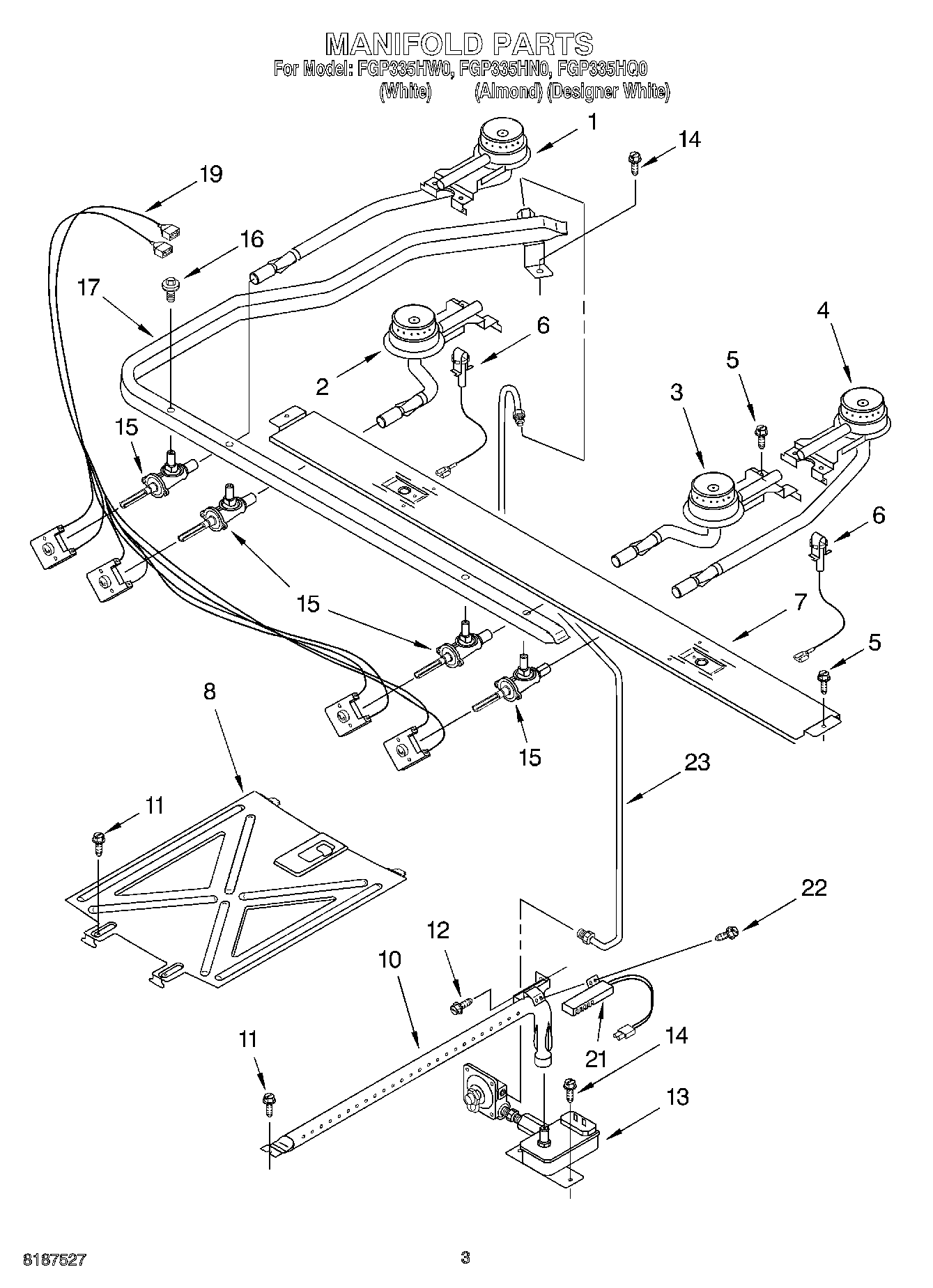

FGP335HQ0 03 – MANIFOLD

Products

Position	Product
1	Burner (Left Rear)
2	Burner, Left Front
3	Burner (Right Front)
4	Burner (Right Rear)
5	W10491985 Whirlpool Screw
6	Igniter, Surface (Right Hand)
6	Ignitor, Surface (Left)
7	Support, Burner
8	Spreader, Flame (Oven)
10	Burner, Bake
11	SCREW
12	3196265 Whirlpool Oven Screw
13	Valve, Gas Combo
15	Valve, Burner (4)
16	WP3186217 Whirlpool Screw
17	Pipe, Manifold
19	Harness, Igniter (W/Switches)
21	WP3186491 Whirlpool Oven Igniter
22	W11684507 Whirlpool Screw
23	Tubing (Manifold to Regulator)
23	LP Conversion Kit (Nat to LP)
23	Spud Kit-Set of 4 (LP to Nat)
