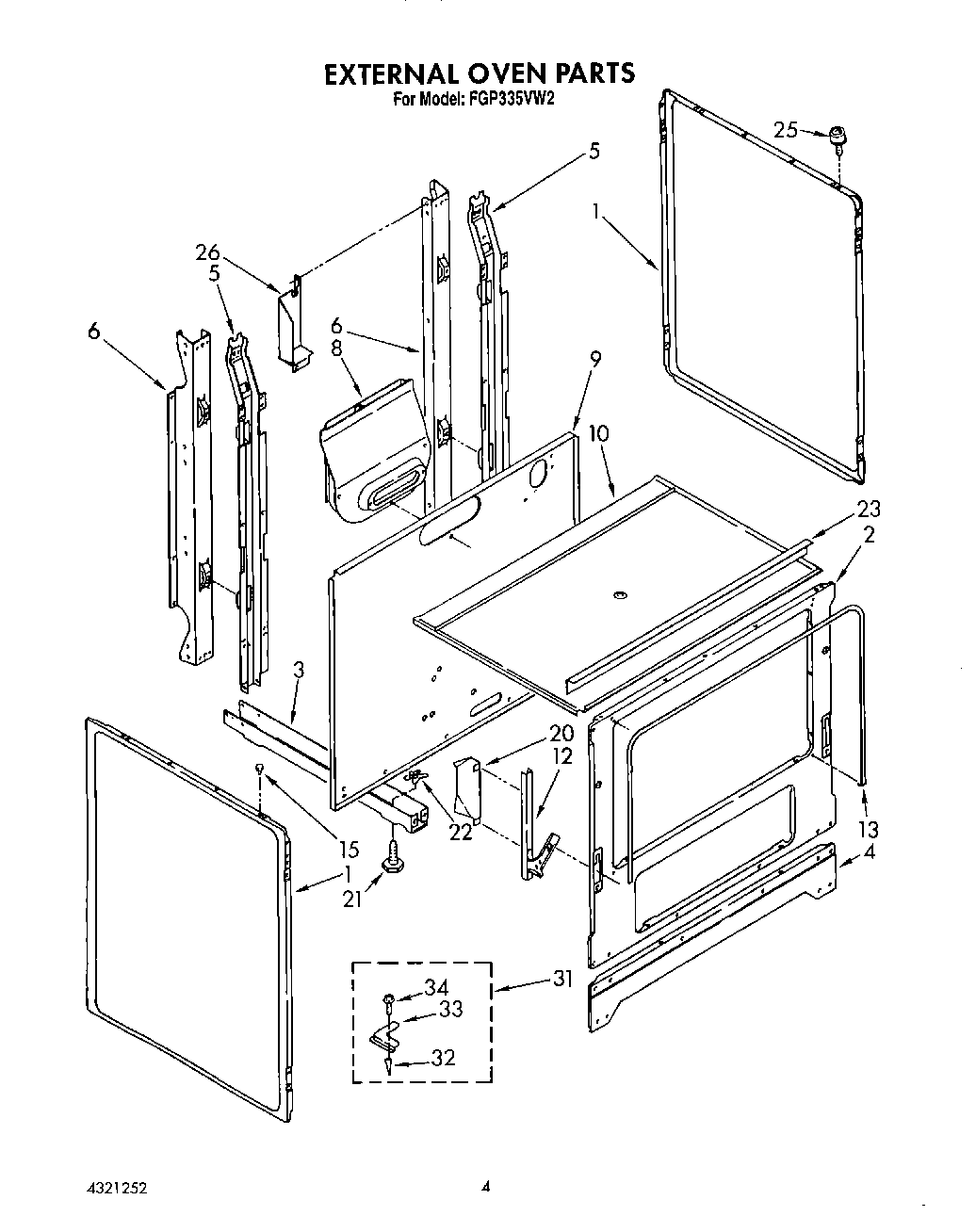

FGP335VW2 04 – EXTERNAL

Products

Position	Product
1	Panel, Side (2) (Almond)
1	Panel, Side (2) (White)
2	Frame, Front
3	Rail, Base (2)
4	Base, Front
4	Screw, 10-12 X 1/2 (4)
5	Support, Main (2)
5	Screw, 10-32 X 1/2 (1)
6	Support, Rear (2)
8	Flue, Box
8	SCREW
9	Panel, Rear
10	Burner Box
10	WP308685 Whirlpool Microwave Screw
12	Screw, 10-24 X 3/8 (2)
12	Hinge, Door (2)
13	Seal, Door (2)
20	Shield, Insulation
21	Leg, Leveler (4)
22	Nut (4)
23	Extension Burner Box
25	Stud Screw (2)
25	Locator stud (2)
26	Cover, Wire
31	Anti Tip Kit
32	Anchor (2)
33	Bracket
34	Screw
