FGP335VW3 04 – EXTERNAL OVEN
Written by
in

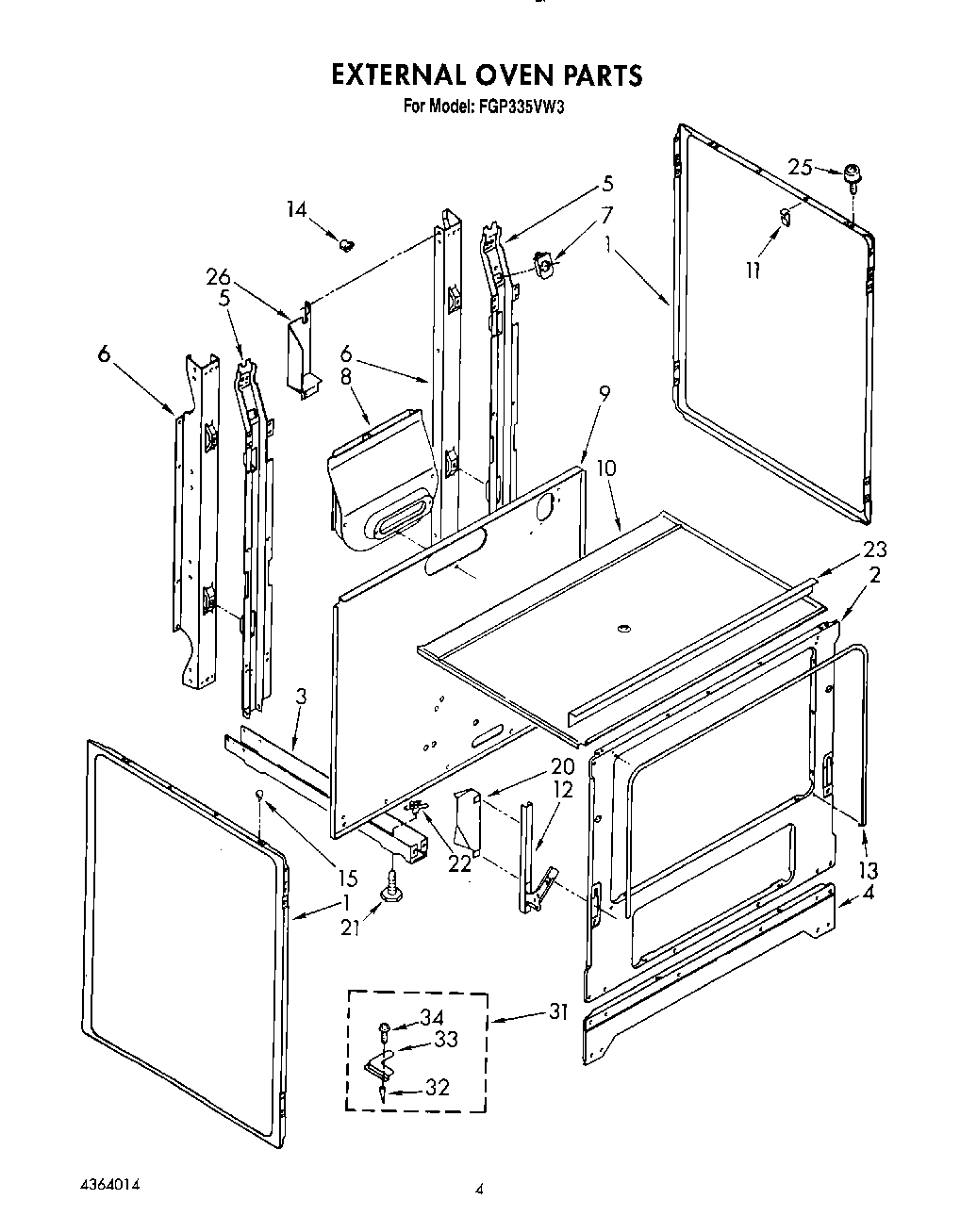

FGP335VW3 04 – EXTERNAL OVEN
Products
Position
Product
1
Panel, Side (2) (White)
1
Panel, Side (2) (Almond)
2
Frame, Front
3
Rail, Base (2)
4
Screw, 10-12 X 1/2 (4)
4
Base, Front
5
Screw, 10-32 X 1/2 (1)
5
Support, Main (2)
6
Support, Rear (2)
7
Bracket, Receptable
8
SCREW
8
Box, Flue
9
Panel, Rear
10
WP308685 Whirlpool Microwave Screw
10
Burner Box
11
Clip, Wire
12
Screw, 10-24 X 3/8 (2)
12
Hinge, Door (2)
13
Seal, Door (2)
14
Strain Relief
15
Bumper, Cooktop (2)
20
Shield, Insulation
21
Leg, Leveler (4)
22
Nut (4)
23
Extension Burner Box
25
Stud Screw (2)
25
Locator stud (2)
26
Cover, Wire
31
Anti-Tip Kit
32
Anchor
33
Bracket
34
Screw
←
